ABA Original SMS - 12 mm width W5 (S50) (AISI 316) hose clamp / Worm Drive Clip
Brand:
ABA
- Buy 50 for €4,35 each and save 20%
Article number: | ABA-SMS-W5-12-015-024 |
EAN: | 7391458874217 |
SKU: | 0813 4034 020 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
- Customer service 09:00 - 17:00
Information

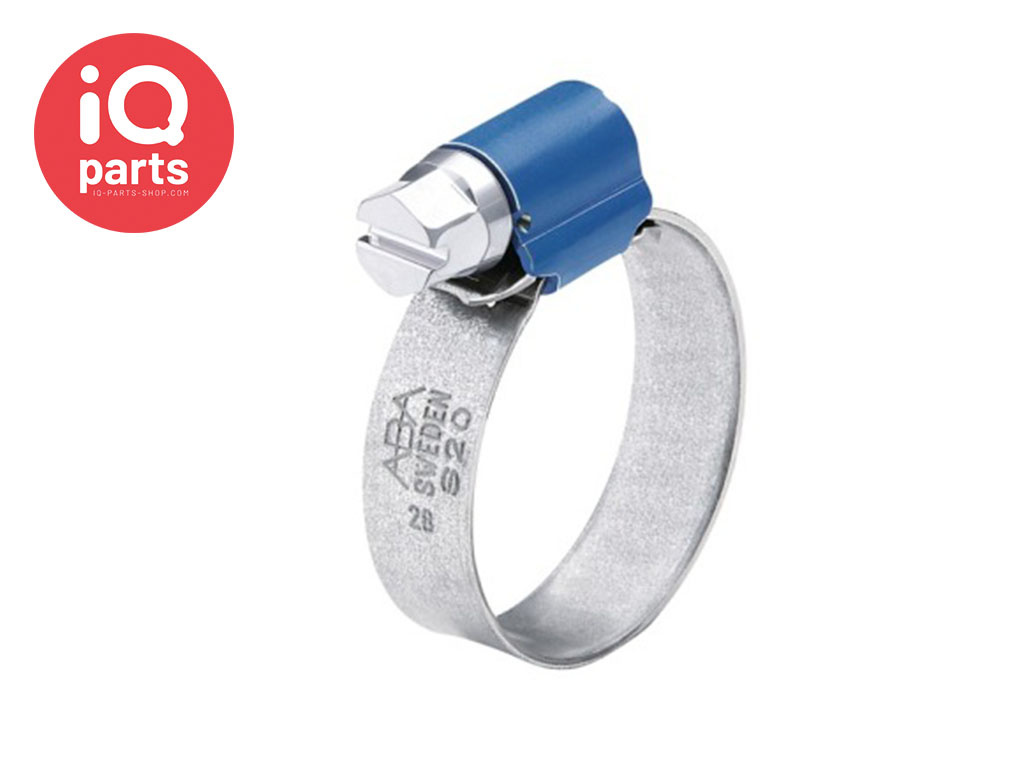

ABA Original SMS - W5 (S50) (AISI 316) - 12 mm wide hose clamp / Worm Drive Clip
ABA Original SMS clamps feature an extra strong one-piece pressed housing, rolled-up band edges and a smooth band underside that protects the hose. ABA Original – the trouble-free clamp with high tightening force and high breaking torque.
All the parts are made of Stainless Steel AISI 316 (W5, S50).
Natural choice for applications where premium corrosion resistance is required.
Advantages at a glance:
- High clamping force
- High breaking torque
- Protection of the hose thanks to the smooth band underside
- Every clamp is date stamped for traceability
- Extra strong one-piece pressed housing
- Rolled-up band edges
Typical applications:
- Machine building
- Chemical industry
- Irrigation systems
- Railway
- Agricultural machines
- Building machines
- Marine
EAN:
7391458802036 – 7391458802043 – 7391458802050 – 7391458802067 – 7391458802074 – 7391458802081 – 7391458802098 – 7391458802104 – 7391458802128 – 7391458802159 – 7391458802166 – 7391458802173 – 7391458802197 – 7391458802203 – 7391458874293 – 7391458874316 – 7391458874323 – 7391458874361 – 7391458874392 - 7391458874408
Productcode:
08134034020 - 08134034024 - 08134034027 - 08134034032 - 08134034038 - 08134034044 - 08134034050 - 08134034058 - 08134034067 - 08134034077 - 08134034086 - 08134034100 - 08134034121 - 08134034148 - 08134034165 - 08134034190 - 08134034216 - 08134034241 - 08134034267 - 08134034292
Specifications
Bolt: | SW 7 mm |
Bandwidth: | 12 mm |
Tightening torque (Maximum): | 5 Nm (Maximum) |
