CPC - APC130M8SH / APCD130M8SH | Coupling Body | Acetal | PTF Nut 8,0 mm OD / 6,0 mm ID
Brand:
CPC
| Article number: | CPC-APCD130M8SH |
| SKU: | APCD130M8SH |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information

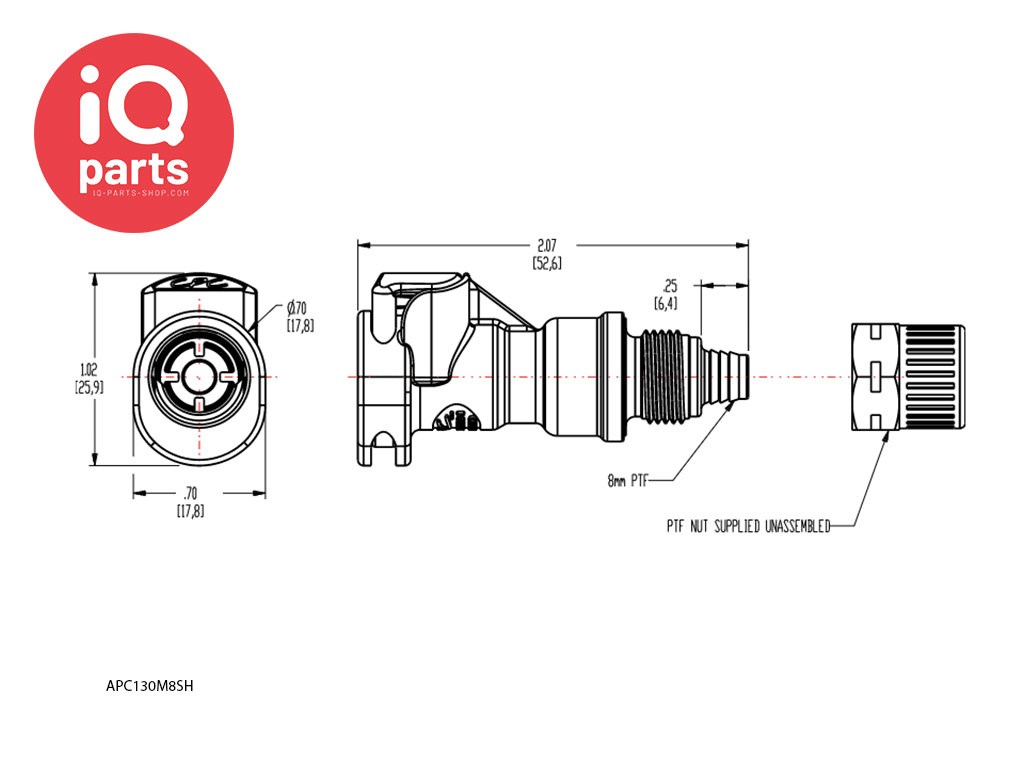

CPC - APC130M8SH / APCD130M8SH | Coupling Body | Acetal | PTF Nut 8,0 mm OD / 6,0 mm ID

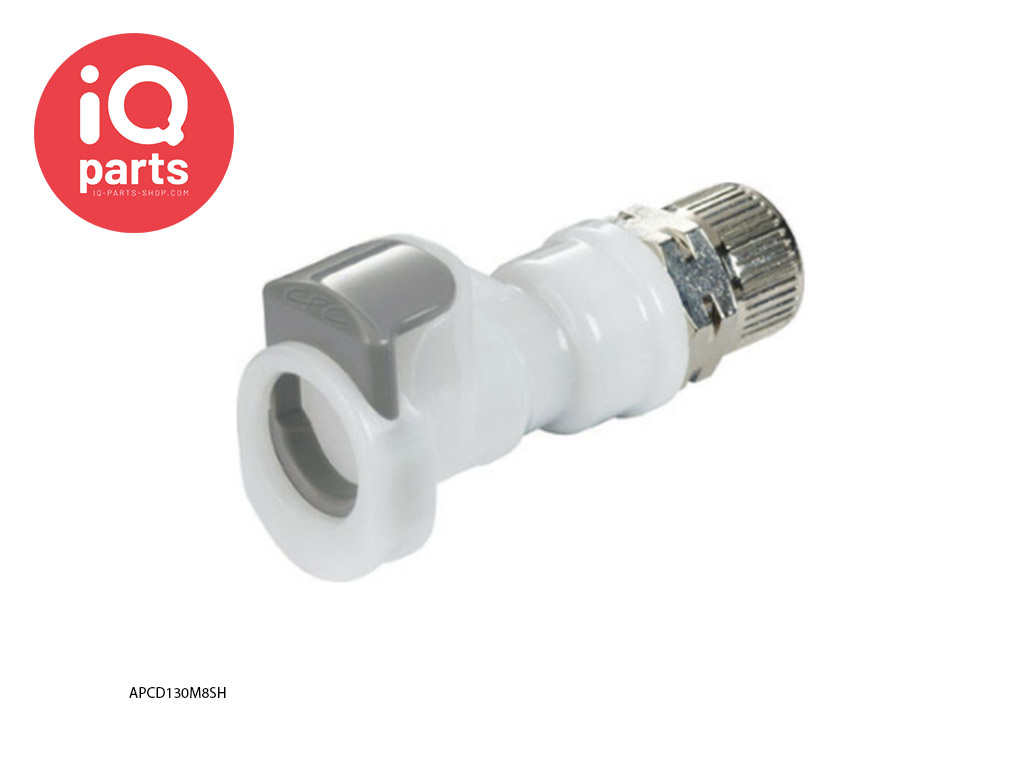

An in-line coupling of CPC from the APC series with a 8,0 mm hose tail. This Coupling Body (female) ensures a leak-free seal, partly provided by a Buna-N (NBR) sealing ring. This coupling is available with a valve (APCD130M8SH) or without a valve (APC130M8SH). (Choose at the top right at “Make a choice:”)
The SH series is characterized by an extra shroud at the locking button, making the coupling even more robust and easier to operate
Properties of the coupling from the APC series:
- Hose barb shroud
- Integral terminations
- Compatible
- Click when connected
- No leakage
- Shorter assemblies, faster installation
- Also mates with most EFC couplings
- Assurance of a reliable connection
Possible Applications:
- Drinking water filtration
- Air mattress systems
- Heat therapy
- Parts cleaning
- Dosing systems
- Carpet cleaners
General information about the APC series:
1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC's application range. For more technical information, see the PDF.
- Material: Acetal, thumb latch is plastic
- Available in various sizes: from 6.4 mm to 9.5 mm ID, also at an angle of 90º
- Available with clamping ring coupling, hose tail or male or female thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with panel mounting option
- O-rings: Buna-N (NBR)
- Vacuum up to 8.3 bar (120 PSI)
- Temperature range: -40ºC to 82ºC constant
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | –40° C tot +82° C |
| Material: | Acetal |
| Size: | 1/4" flow |
| Connection: | In-line coupling |
| Seal: | Buna-N (NBR) |
| Hose connection: | 8,0 mm OD / 6,0 mm ID |
| Weight: | -- |
