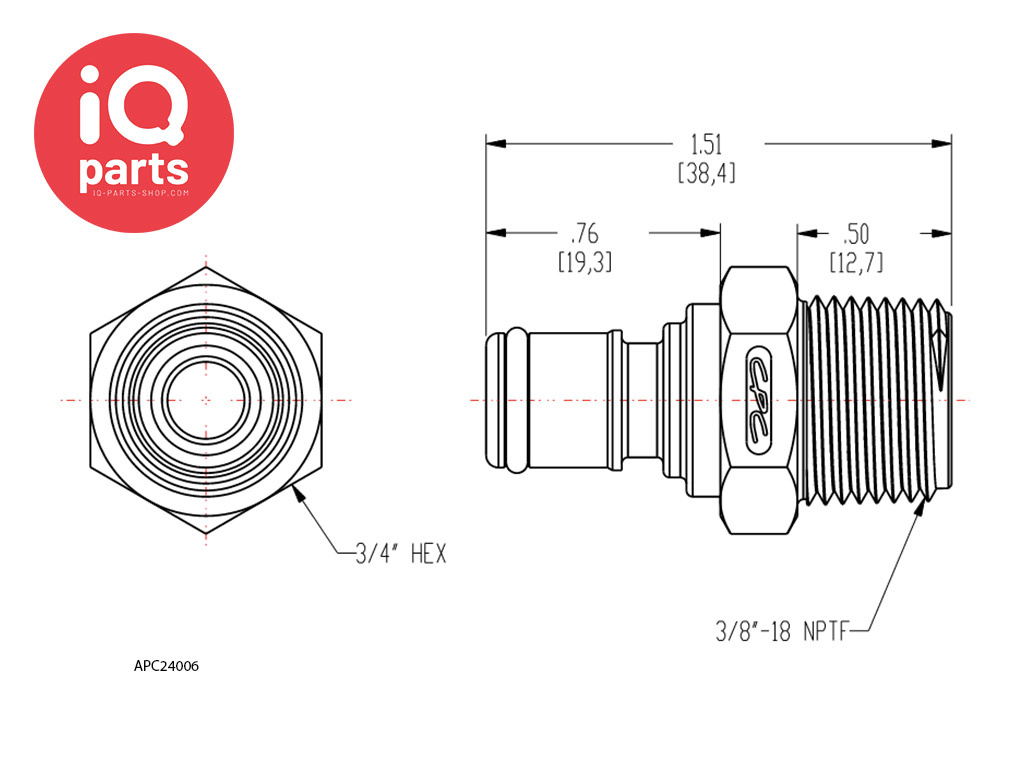

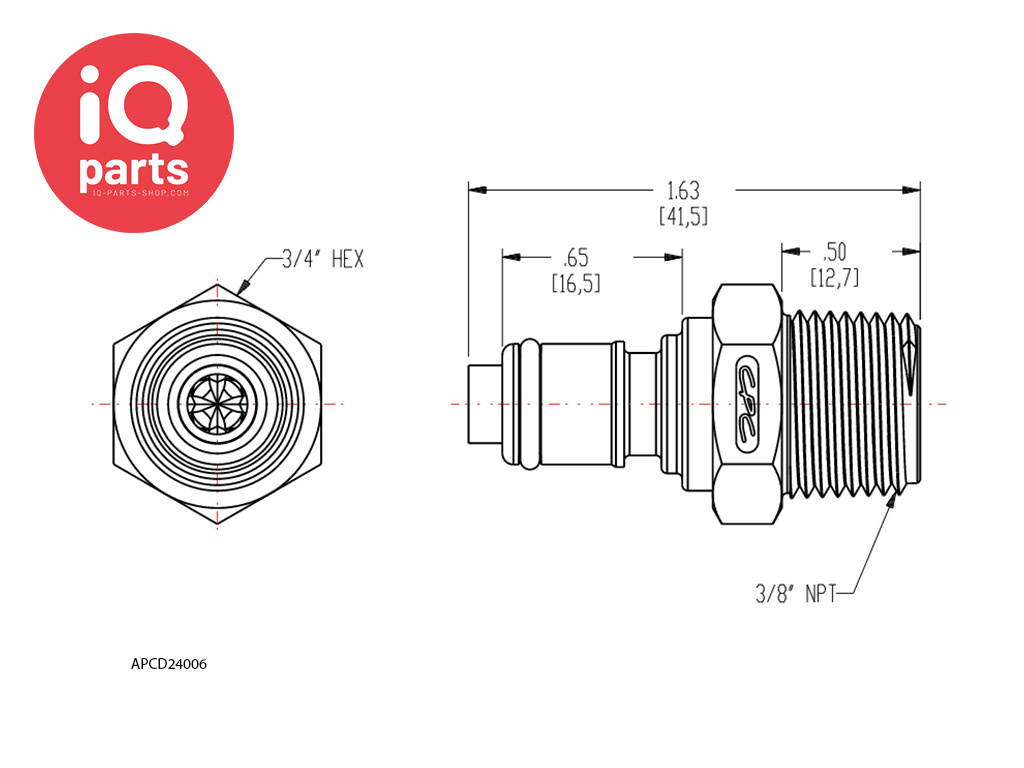

CPC - APC24006 / APCD24006 | In-line Coupling Insert | Acetal | 3/8" NPT Pipe Thread
Brand:
CPC
| Article number: | CPC-APCD24006 |
| SKU: | APCD24006 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information
CPC - APC24006 / APCD24006 | In-line Coupling Insert | Acetal | 3/8" NPT Pipe Thread
An in-line coupling insert of CPC from the APC series with a 3/8" NPT Pipe Thread. This plug (male) ensures a leak-free seal, partly provided by a Buna-N (NBR) sealing ring. This coupling is available with a valve (APCD24006) or without a valve (APC24006). (Choose at the top right at “Make a choice:”)
Properties of the coupling from the APC series:
- Hose barb shroud
- Integral terminations
- Compatible
- Click when connected
- No leakage
- Shorter assemblies, faster installation
- Also mates with most EFC couplings
- Assurance of a reliable connection
Possible Applications:
- Drinking water filtration
- Air mattress systems
- Heat therapy
- Parts cleaning
- Dosing systems
- Carpet cleaners
General information about the APC series:
1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC's application range. For more technical information, see the PDF.
- Material: Acetal, thumb latch is plastic
- Available in various sizes: from 6.4 mm to 9.5 mm ID, also at an angle of 90º
- Available with clamping ring coupling, hose tail or male or female thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with panel mounting option
- O-rings: Buna-N (NBR)
- Vacuum up to 8.3 bar (120 PSI)
- Temperature range: -40ºC to 82ºC constant
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | –40° C tot +82° C |
| Material: | Acetal |
| Size: | 1/4" flow |
| Connection: | In-line hose barb |
| Seal: | Buna-N (NBR) |
| Hose connection: | 3/8" NPT Pipe Thread |
| Weight: | -- |
