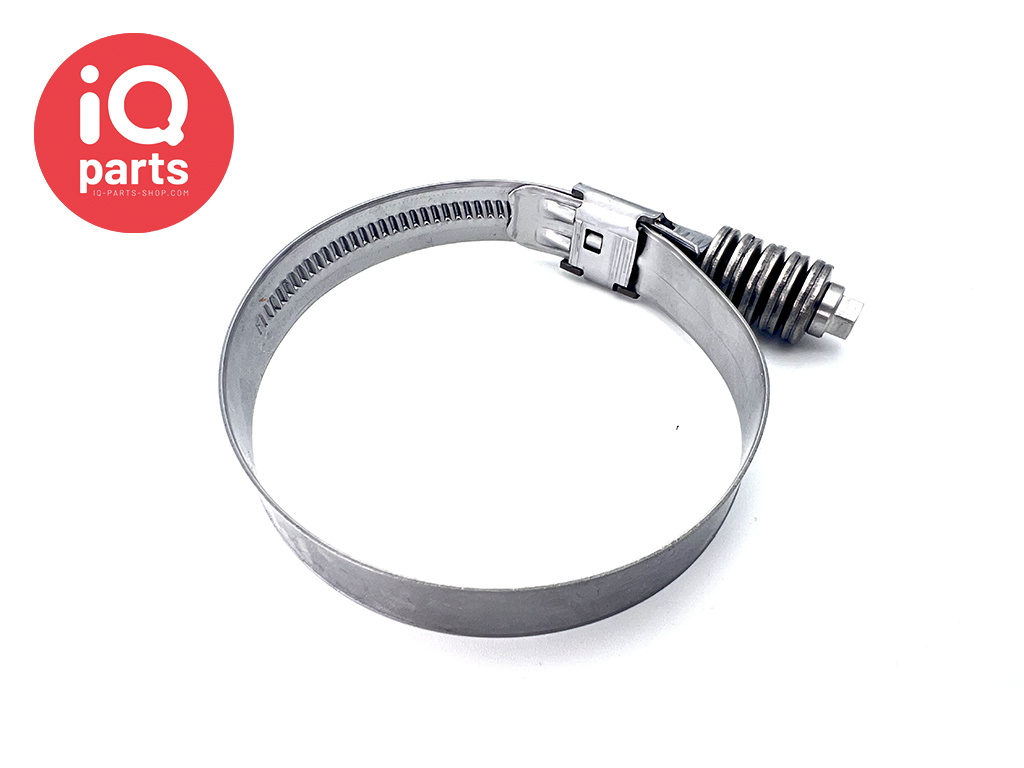

Mikalor ASFA-High Torque Constant Tension hose clamp | 16 mm | W4
| Article number: | MKL-W4-HTCT-057-079 |
| SKU: | 03069004 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
- Customer service 09:00 - 17:00
Mikalor ASFA-High Torque Constant Tension hose clamp | 16 mm | W3
The MIKALOR High Torque Constant Tension clamp has been designed to guarantee constant performance and torque values.
The screw is fitted with special conical washers, which adapt their behaviour according to the vibrations and temperature changes occurring in the application. Thanks to the 8 mm hexagonal screw and a bandwidth of 16 mm, we can increase the tightening torque by more than 118 % compared to the range with a bandwidth of 12 mm, while at the same time increasing the performance by 48 %.
Designed and manufactured with perfectly rounded band edges and a housing with a double fastening reinforcement.
Due to its high performance, it is especially used in industrial applications and in the agricultural machinery, naval and industrial vehicle sectors.
- Band and housing: SS W4 (AISI 304, X5Cr Ni18/10)
- Screw: SS W4 (AISI 304)
- Washers: SS W4 (AISI 304)
- Finish: SS
- Corrosion resistance: 400 hours salt spray (ASTMB-117)
- Max. tightening speed: 540 RPM (± 5)
| Bolt: | M8 |
| Bandwidth: | 16 mm |
| Tightening torque (Maximum): | 14 Nm (Maximum) |
