Mikalor ASFA-High Torque hose clamp | 16 mm | W4
Brand:
Mikalor
| Article number: | MKL-W4-HT-025-045 |
| SKU: | 03067001 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
- Customer service 09:00 - 17:00
Information

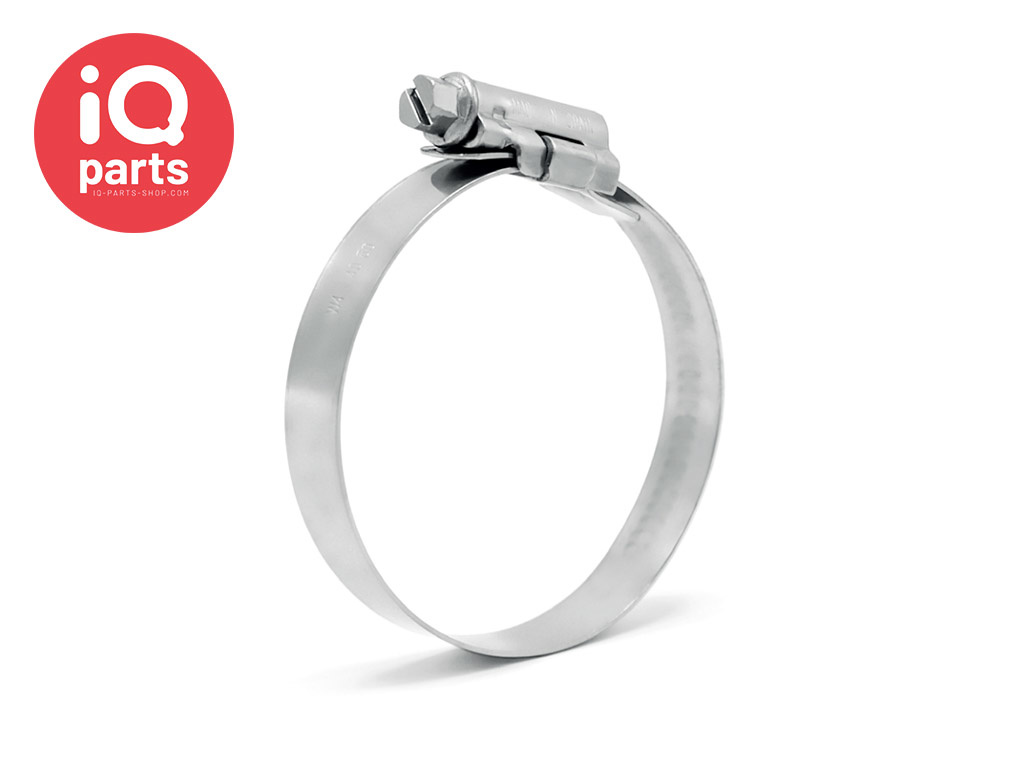

Mikalor ASFA-High Torque hose clamp | 16 mm | W4
Mikalor High-Torque Clamps were designed to guarantee maximum performance in the most demanding applications. Thanks to the use of an M8 screw and the choice of 16mm bandwidth, torque values can be applied which are far higher than those used with the standard ASFA range, thereby ensuring perfect performance in high-pressure applications.
The High-Torque clamp is particularly popular in industrial and automotive applications due to its outstanding performance. This clamp is manufactured entirely from AISI 304 Stainless Steel and is especially indicated for use in corrosive environments and in the foodstuffs industry.
* The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling
* The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling
Material:
- Band and housing: SS W4 (AISI 304, X5Cr Ni1810)
- Screw: SS W4 (AISI 304)
- Finish: SS
- Corrosion resistance: 400 hours salt spray
- Max. tightening speed: 540 RPM (± 5)
Productcode:
0306700-1 - 0306700-2 - 0306700-3 - 0306700-4 - 0306700-5 - 0306700-6 -0306700-7 - 0306700-8 - 0306700-9 - 0306701-0 - 0306701-1 - 0306701-2 -0306701-3 - 0306701-4 - 03067001 - 03067002 - 03067003 - 03067004 - 03067005 - 03067006 -03067007 - 03067008 - 03067009 - 03067010 - 03067011 - 03067012 -03067013 - 03067014

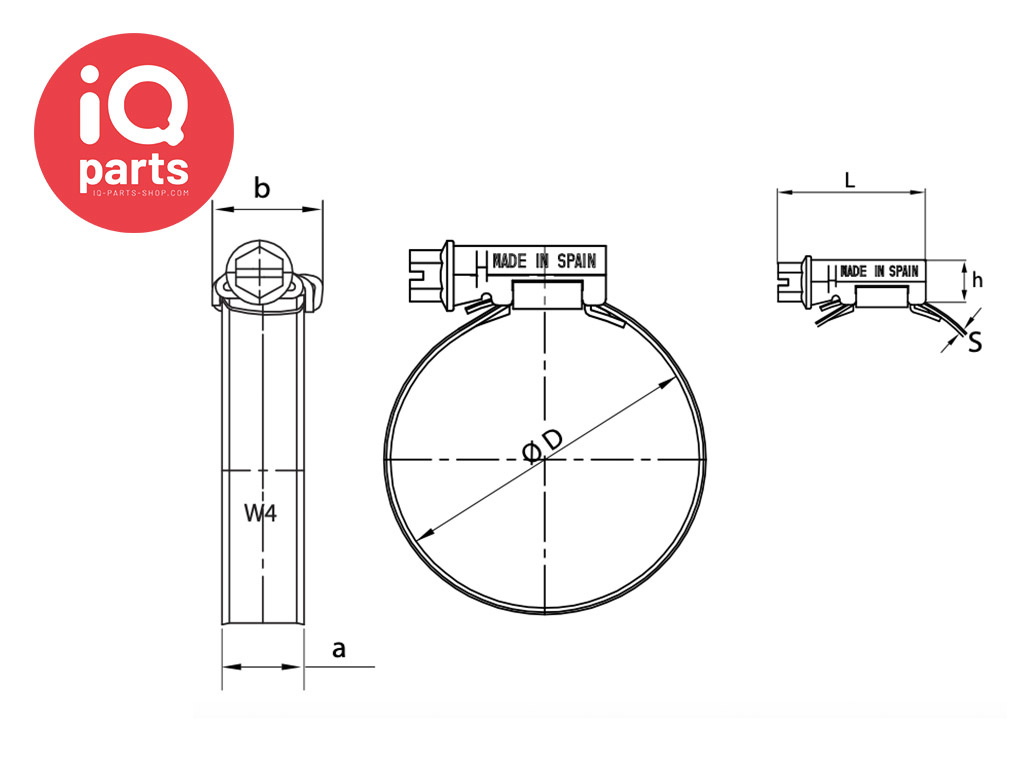

Specifications
| Bolt: | M8 |
| Bandwidth: | 16 mm |
| Tightening torque (Maximum): | 12 Nm (Maximum) |
