CPC - BLQ2D3004 | Coupling Body | Chrome-plated brass | 1/4" SAE-4 thread
Brand:
CPC
| Article number: | CPC-BLQ2D3004 |
| SKU: | BLQ2D3004 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information

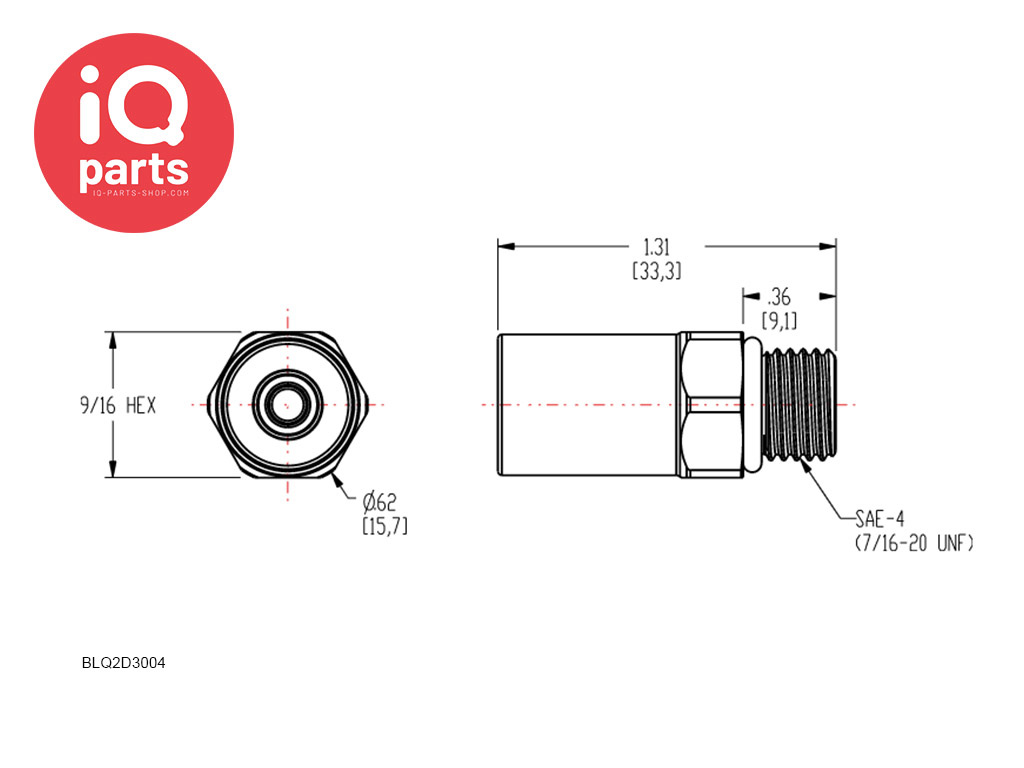

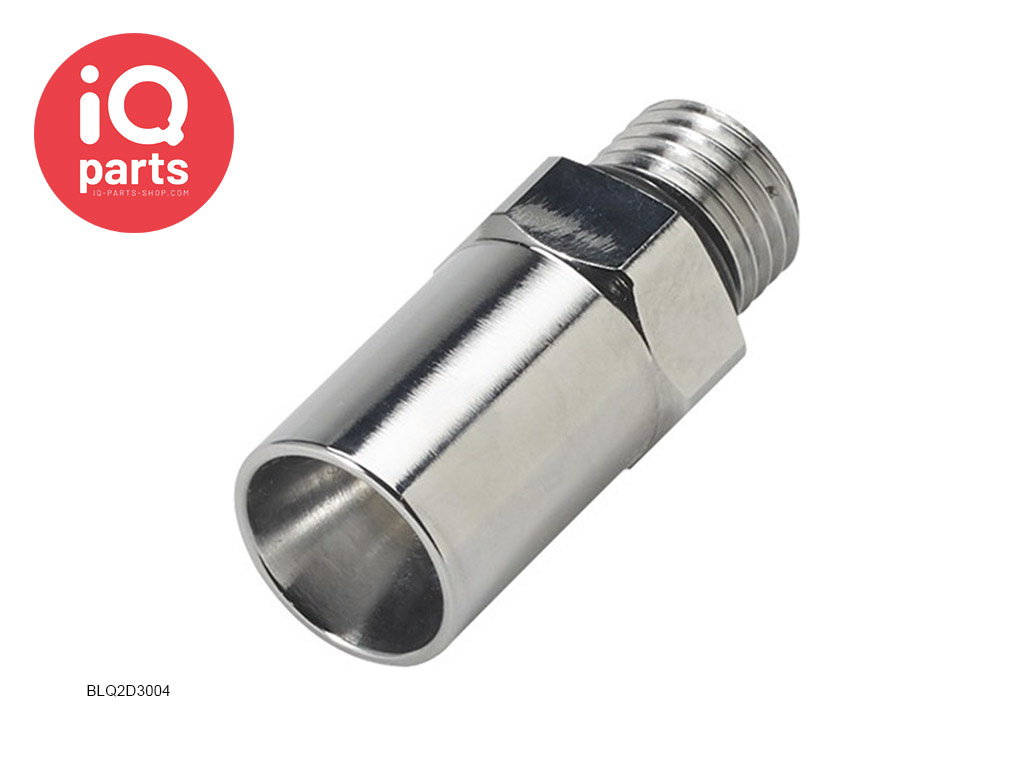

CPC - BLQ2D3004 | Coupling Body | Chrome-plated brass | 1/4" SAE-4 thread
A In-line coupling Body from CPC from the BLQ2 series with a 1/4" SAE-4 thread. This coupling Body (female) ensures a leak-free seal, partly provided by an EPDM sealing ring. This coupling is available With valve (BLQ2D3004).
This coupling is supplied as standard with an EPDM sealing ring.
Features of the couplings from the LQ2 series:
- Non-spill design; Drip-free disconnection, even under pressure
- Redundant sealing when connected; Extra protection from contaminents and debris
- Friction-free valve; Protection against dripping, even after extended use when paired
- Robust design
- Axial engagement tolerance; Couplings are suitable for permanent use
- Long lifespan
Possible applications:
- server cooling
- liquid cooling
- thermal management
- cooling systems
- equipment construction
General information about the BLQ2 series:
The Everis™ BLQ2 series enables an ultra-relaiable dripless and secure connection for valuable electronic components. CPC's BLQ2 shortcuts have been specially developed for rackmounting. This innovative valve technology is patented and offers extremely reliable protection against dripping when disconnected. Long-term use with frequent coupling and uncoupling is no problem for the BLQ 2. Disconnection after a long-term coupled state remains drip-free.
- Material: Chrome Plated Brass
- Valve: Polysulfone
- Available with male thread 1/4" SAE-4
- Stainless steel valve spring
- O-rings: EPDM
- Working pressure: vacuum up to 13.8 bar (200 PSI)
- Operating temperature: -17ºC to 115ºC (0ºF to 240ºF)
- Droplet Formation: <0.015 cc at ~ 0 bar and < 0.063 cc at ~ 13.8 bar per disconnect
- Flow capacity: CV ~ 0.37 max
- Lubricant: Krytox® PFPE (chemically neutral)
As of the end of Q4 2024, CPC is making a minor change regarding this product:
The plating of this product is being changed from a Nickel-Chrome to an Electroless Nickel-plating.
This provides the following benefits:
- Improved coverage
- Improved corrosion resistance
- Better wear resistance
- Does not affect the form, fit or function of the coupling
- No changes to the part number or pricing
The appearance will be slightly less shiny and more nickel-colored.
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid Cooling |
| Operating Pressure: | 13,8 bar Vacuum |
| Temperature range: | –17° C tot +115° C |
| Material: | Chrome-plated brass |
| Size: | 1/8" flow |
| Connection: | In-line Coupling Body |
| Seal: | EPDM |
| Hose connection: | 1/4" SAE-4 thread |
| Weight: | -- |
