CPC - Check Valve with 1/2" NPT female thread and 1/2" NPT male thread
Brand:
CPC
| Article number: | CPC-2478900 |
| SKU: | 2478900 |
- 2 year warranty
- Delivery time: 6 - 8 weeks
- Customer service 09:00 - 17:00
Information

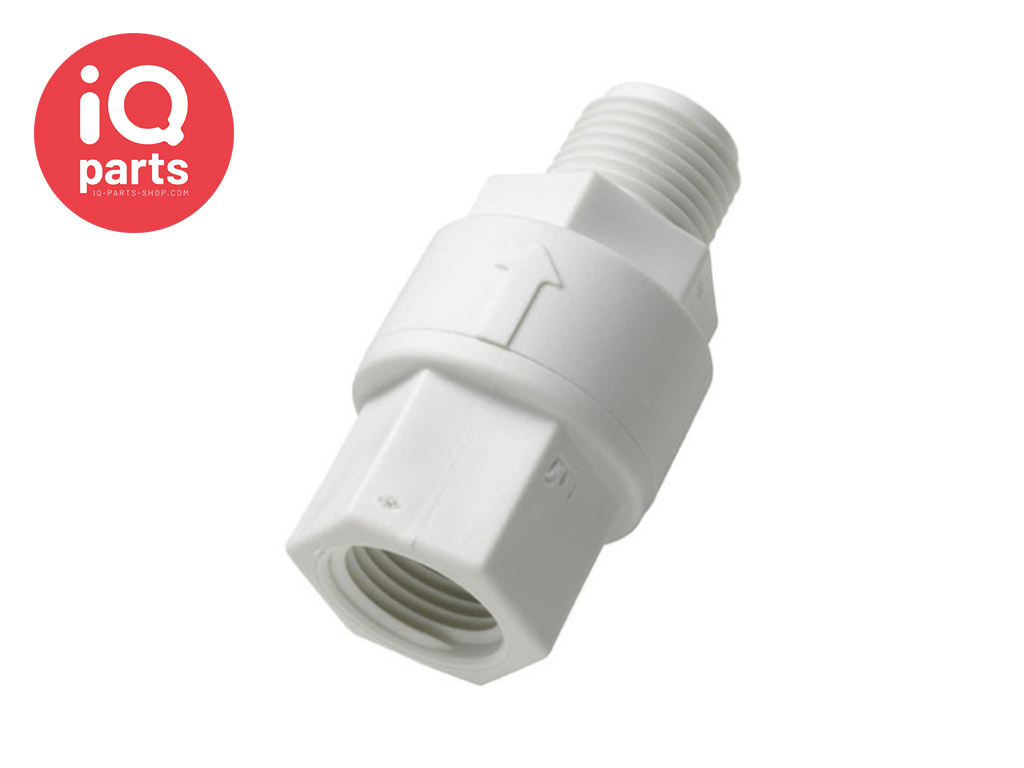

CPC - 2478900 | Check Valve with 1/2" NPT female thread and 1/2" NPT male thread with EPDM O-ring.
The 2478900 check valve is screwed onto the outlet of the DrumQuik PRO coupling with the 1/2" NPT female thread. Mount the drain hose on the 1/2" NPT male thread. The check valve ensures that the flow can only flow out of the drum and not back into the drum.
You can combine this check valve with all couplings with a 1/2" NPT male thread from the DrumQuik PRO series.
Specifications of this item:
- Material: Polypropylene
- O-ring: EPDM: 70 Micron
- Valve spring: 302 stainless steel (W4)
General information about the DrumQuik®PRO series:
Features and benefits:
- Quick connect/disconnect = Faster container change-outs
- Automatic shutoff valve = Stops flow when disconnected
- Disposable container insert = Reduces chemical exposure and messy handling
Materials:
- Drum insert & dip-tube: Virgin polyethylene (HDPE)
- Shipping plug: Virgin polyethylene (HDPE) or FKM
- Valves: 316 SS, Hastelloy C, virgin PEEK UHP, PPS or Teflon encapsulated 316 SS (TESS)
Seals:
- Coupler seals: EPDM, FKM or Simriz UHP FFKM Perfluoroelastomer
- Bung seal: Polyolefin, EPDM or FKM
-
Shipping plug seal: EPDM or FKM
Specifications:
Operating pressure:
- Disconnected: vacuum to 3.1 bar (45 PSI)
- When coupled: vacuum to drumrating
Operating Temperature:
- Drum Insert: -29ºC to 49ºC (-20ºF to 120ºF)
- Coupler: HPDE 0ºC to 49ºC (32ºF to 120ºF)
Look for more technical info in the PDF
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Air |
| Operating Pressure: | 3,1 bar Vacuum |
| Temperature range: | -29° C tot +49° C |
| Material: | Polypropylene |
| Size: | -- |
| Connection: | 1/2" NPT male and female Thread |
| Seal: | EPDM |
| Hose connection: | 1/2" NPT male Thread |
| Weight: | -- |
