STAUFF Clamp body Standard Series | Polyamide | Smooth Design
Brand:
STAUFF
| Article number: | STA-1130005073 |
| SKU: | 1130005073 |
- 2 year warranty
- Delivery time: 2 Weeks
Information
STAUFF Clamp body Standard Series | Polyamide | Smooth Design
With this block clamp from Stauff you can easily attach 1 or a few pipes next to each other. The H series is extremely suitable for hoses and cables.
This block clamp has a Smooth inside surface without tension clearance, so that the clamp has a good grip on your hose or cable. This block clamp consists of 2 parts and can be mounted by means of hexagonal bolts in combination with a cover plate or Allen bolts. At the bottom, use a threaded weld plate to mount the block clamp. The length of the welding plate determines how many block clamps you can mount next to each other. You can also mount the clamps on an underlying rail, so that you can easily mount several clamps next to each other.
This block clamp is available in a large number of diameters, so that you can always find a suitable size. Select the desired pipe diameter from the selection menu at the top right of this page.

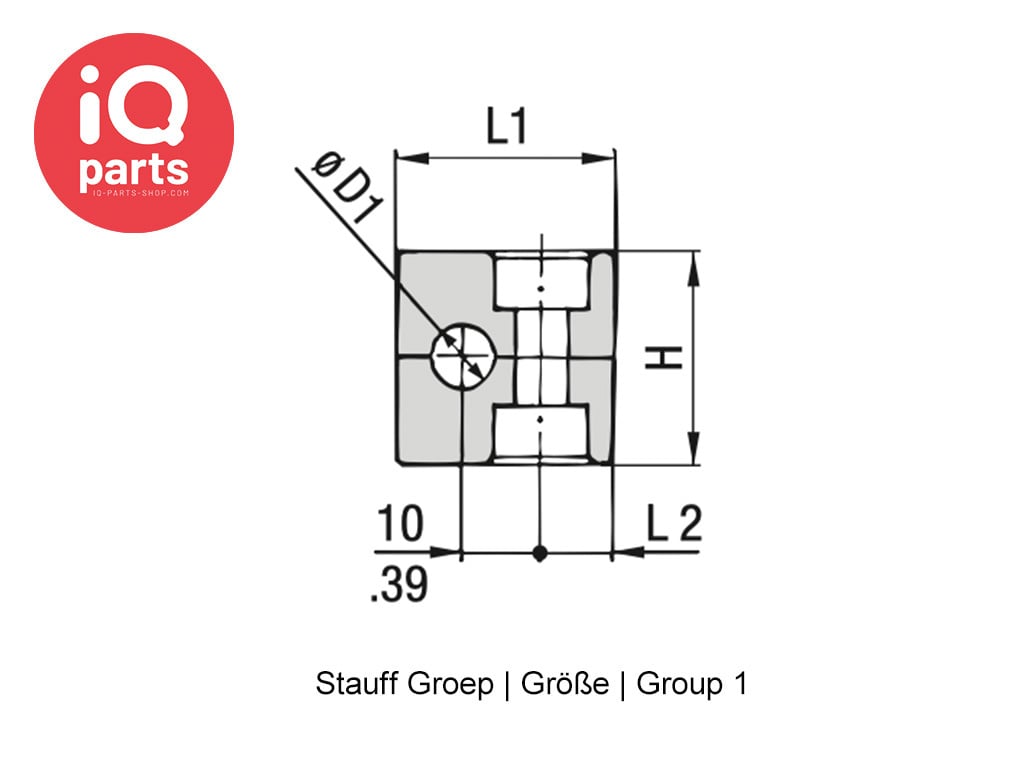

Group 1 contains space for 1 screw
Group 1A to 8 contain space for 2 screws
Each group of Stauff has its own dimensions. For example, it can happen that the same pipe diameter occurs in 2 groups. The dimension of the clamp then differs.
Numbering logic:
For example: 315-PA-H: 3 = Stauff-group, 15 = tube ø, PA = material (Polyamide), H = Smooth Profile
Suitable Screws for this standard series:
| Group | Hexagon Head Bolt with Cover plate | Socket Cap Screw without Cover plate |
| 1 | M6 x 30 | M6 x 20 |
| 1A | M6 x 30 | M6 x 20 |
| 2 | M6 x 35 | M6 x 25 |
| 3 | M6 x 40 | M6 x 30 |
| 4 | M6 x 45 | M6 x 35 |
| 5 | M6 x 60 | M6 x 50 |
| 6 | M6 x 70 | M6 x 60 |
| 7 | M6 x 100 | M6 x 90 |
| 8 | M6 x 125 | M6 x 110 |
Look in the PDF below for the numerous possibilities and the system of the size indication.
Product Features:
- According DIN 3015-1
- Proven, tested and trusted product in various markets
- Recommended for the safe installation of hoses and cables
- Chamfered edges avoid damaging of the hoses and cables
- Available for all commonly used hose and cable outside diameters
- Excellent weathering resistance, even under extreme conditions
Note: You only order the 2-piece block clamp. Other mounting parts must be ordered separately !!
Product code:
1130003145 – 1130003148 – 1130003151 – 1130003154 – 1130005125 – 1130003161 – 1130005073 – 1130009823 – 1130005101 – 1130005146 – 1130005188 – 1130005235 – 1130005258 – 1130005273 – 1130005291 – 1130005330 – 1130005367 – 1130005384 – 1130003274 – 1130003277 – 1130003280 – 1130003283 – 1130003286 – 1130003381 – 1130006333 – 1130005786 – 1130005820 – 1130005952 – 1130005978 – 1130005994 – 1130006024 – 1130006050 – 1130002661 – 1130003573 – 1130003576 – 1130003579 – 1130006215 – 1130006220 – 1130006225 – 1130006229 – 1130018302 – 1130006233 – 1130006261 – 1130007431
106-PA-H – 106.4-PA -H – 108-PA-H – 109.5-PA-H – 110-PA-H – 112-PA-H - 106A-PA-H – 106.4A-PA-H – 108A-PA-H – 110A-PA-H – 112A-PA-H – 212.7-PA-H – 213.5-PA-H – 214-PA-H - 215-PA-H –216-PA-H – 217.2-PA-H – 218-PA-H – 319-PA-H - 320-PA-H –321.3-PA-H – 322-PA-H – 325-PA-H – 325.4-PA-H – 426.9-PA-H – 428-PA-H – 430-PA-H – 532-PA-H – 533.7-PA-H – 535-PA-H – 538-PA-H – 540-PA-H – 542-PA-H – 644.5-PA-H – 648.3-PA-H – 650.8-PA-H – 757.2-PA-H – 760.3-PA-H – 763.5-PA-H – 770-PA-H – 773-PA-H – 776.1-PA-H – 888.9-PA-H – 8102L-PA-H
