CPC - Elbow Coupling Set BMW | Chrome-plated brass | 3/8" NPT - Hose barb 6 - 7 mm
Brand:
CPC
| Article number: | CPC-BMW02 |
| SKU: | BMW02 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
- Customer service 09:00 - 17:00
Information
CPC - Elbow Coupling Set BMW | Chrome-plated brass | 3/8" NPT - Hose barb 6 - 7 mm
This Couplingset for BMW consists of:

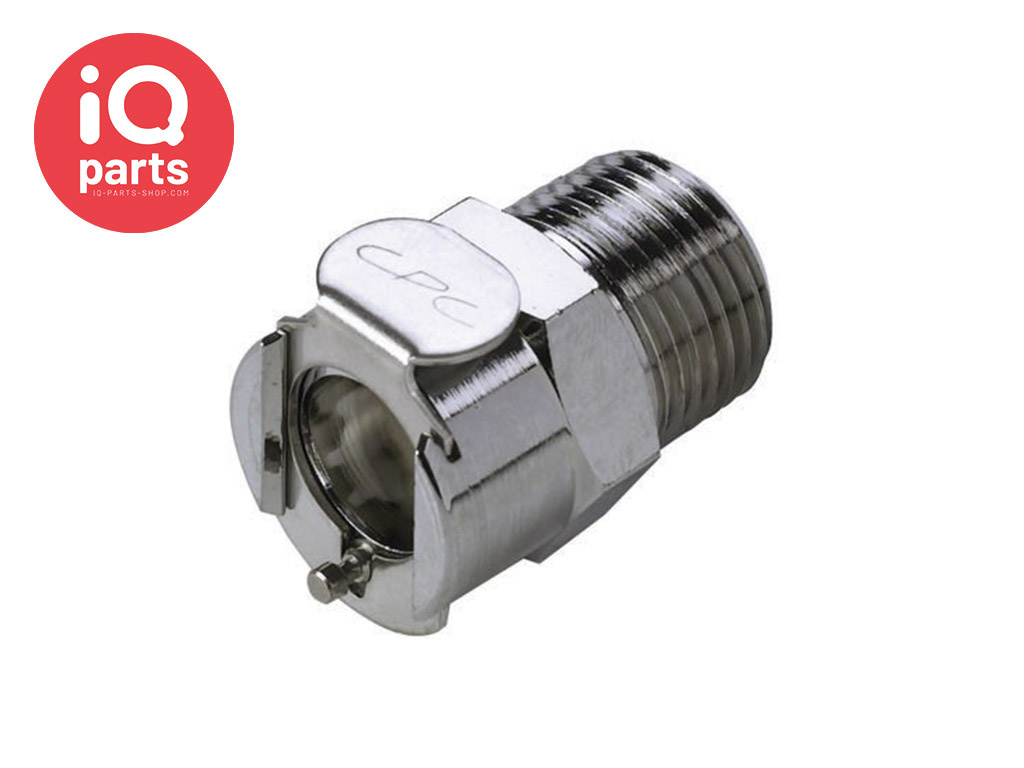

- The LCD10006V coupling body, with shut-off valve and a 3/8" NPT thread (conical, self-sealing) from CPC, is the tank side coupling for screwing in. The integrated VITON seal (FKM) makes the LCD10006V suitable for use in connection with fuel.
- The 90º coupling insert LCD23004V with shut-off valve and a 6,4 mm hose connection for 6 and 7 mm fuel hose (inner diameter). The LCD23004V has a VITON seal (FKM) and is therefore fuel resistant.

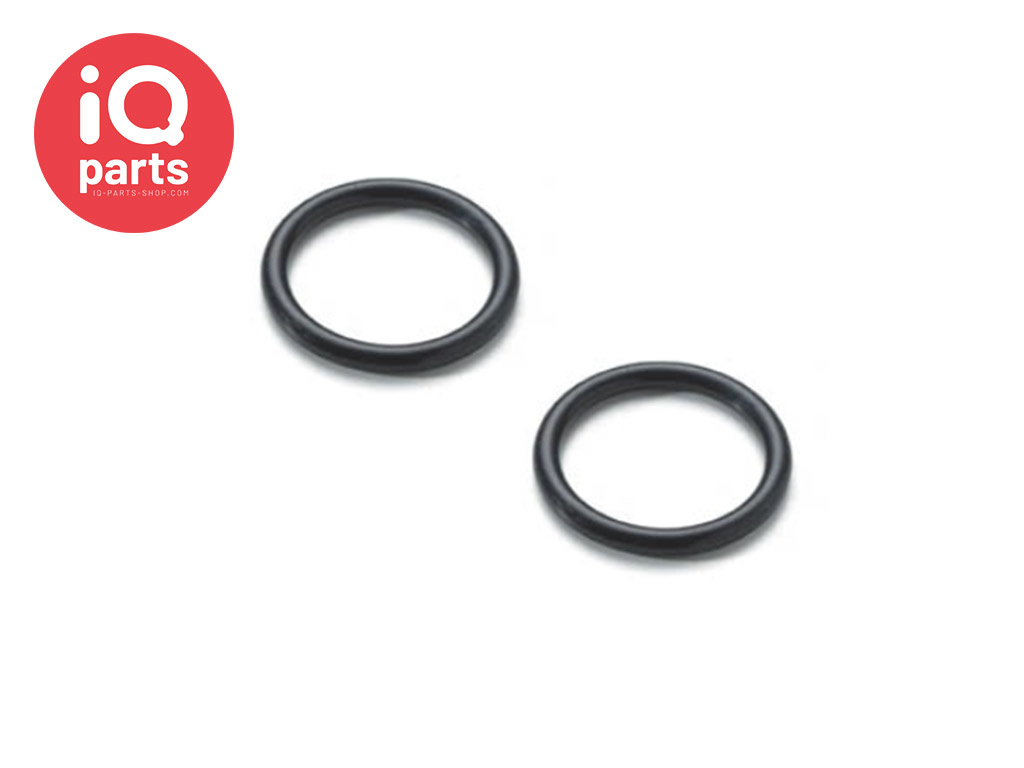

- 2 extra Viton sealing rings
Installation recommendation for the CPC quick couplings:
- Lubricate the threads of the coupling with Loctite 243
- Screw the coupling into the threads of the tank plate by hand
- Tighten ½ to ¾ turn with wrench
Keep in mind that:
After mounting, 2-3 turns of thread of the coupling are still visible above the tank plate, this is normal as the coupling has a conical thread and the thread in the tank plate is cylindrical.Wait a day for the Loctite to set before filling the tank.
- It happens that BMW also has BSP thread. This coupling does not fit. Use the table on the last picture to measure whether you ordered the right thread!
General information about the LC series:
CPC’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects. These couplings offer the flexibility of multiple configurations and terminations to mate with both the PLC acetal and PLC12 polypropylene couplings. In addition, couplings are available that meet the requirements of the NSF standard.
For more technical information, see the PDF.- Material: Chrome-plated brass
- Available in various sizes: from 6.4 mm to 9.5 mm ID, also at an angle of 90º
- Available with clamping ring coupling, hose tail or male or female thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with panel mounting option
- O-rings: Viton (FKM)
- Vacuum up to 17.3 bar (250 PSI)
- Temperature range: -40ºC to 82ºC constant
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Petrol |
| Operating Pressure: | 17,3 bar Vacuum |
| Temperature range: | –40° C tot +82° C |
| Material: | Chrome-plated brass |
| Size: | 1/4" flow |
| Connection: | 90º hose barb |
| Seal: | Viton (FKM) |
| Hose connection: | 6 - 7 mm Inner diameter |
| Weight: | -- |
