CPC - CP103 / CP104 / CP105 | Multi-Mount plate
Brand:
CPC
| Article number: | CPC-CP103 |
| SKU: | CP103 |
- 2 year warranty
- Delivery time: 4 weeks
- Customer service 09:00 - 17:00
Information
CPC - CP103 / CP104 / CP105 | Multi-Mount plate

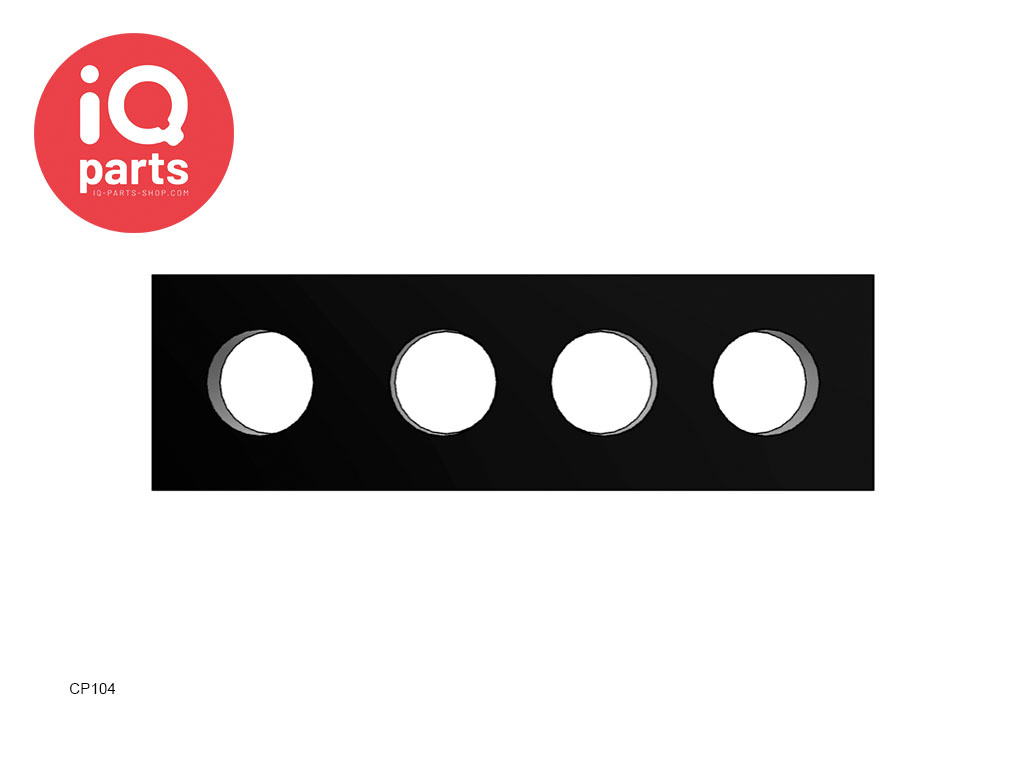

This Multi-Mount plate for 3, 4 or 5 couplings is made of anodized aluminum. You can mount the quick couplings from the CPC Multi-Mount series here.
CPC has placed the first port in the Mounting Plate at a slightly greater distance, so that you can never mount the multi-coupling the wrong way around.
Please note that you need a mounting plate for both the couplings (female) and the plug-in nipples (male)?
Dimensions: (Length x Width x Thickness)
3 ports: 66.04 x 6.35 x 25.4 (2.60” x 0.25” x 1”)
4 ports: 85.09 x 6.35 x 25.4 (3.35” x 0.25” x 1”)
5 ports: 104.14 x 6.35 x 25.4 (4.10” x 0.25” x 1”).
(Choose at the top right at “Make a choice: the amount of Ports”)
THIS PLATE IS FOR COUPLINGS WITH A FLOW OF 1/8”
Multi-Mount couplings provide one easy-to-use coupling for connecting from three to five lines at once. Multi-mount couplings are available in a wide variety of materials including acetal and chrome-plated brass. Multi-mounts are keyed to prevent mismatched connections and can be configured with or without valves for maximum design flexibility.

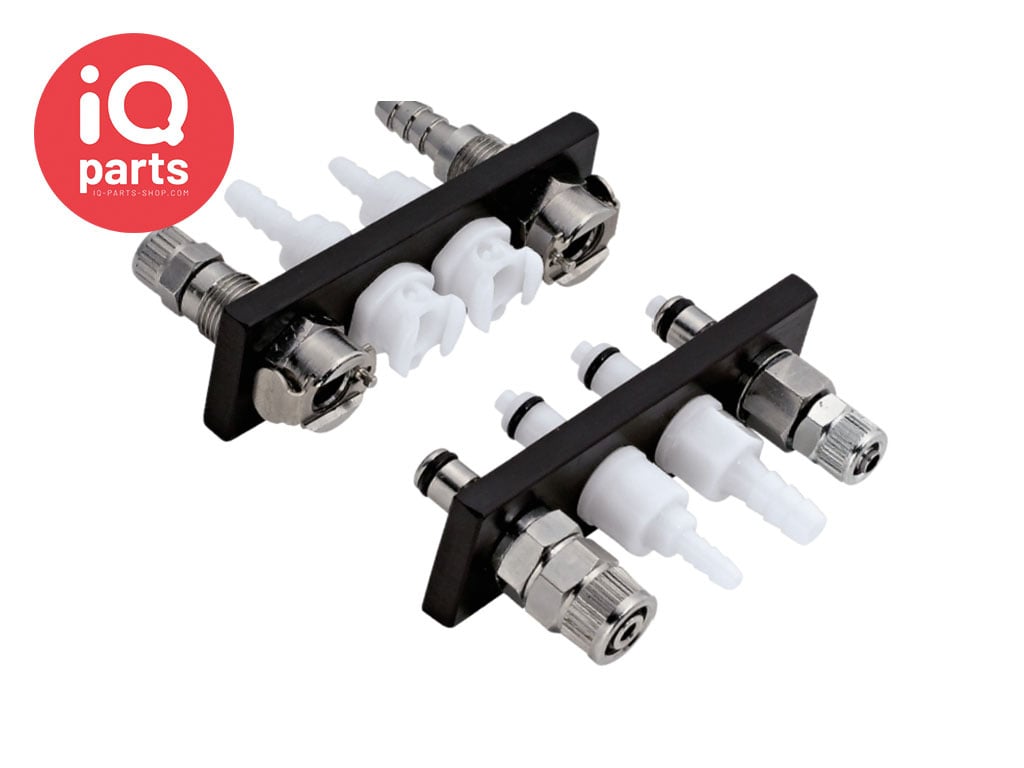

This is how you assemble the Multi-Mount:
- Determine the flow size and type of closure.
- Order two "multiple mounting plates" (one for the coupling bodies and one for the coupling inserts) with the correct number of connection openings for your specific application (available with 3, 4 or 5 openings).
- Order two "standard coupling bodies with thumb locks" for the 2 outer openings. See the PMC and MC series for 1/8" flow.
- Order an appropriate number of "Coupling bodies without Thumb Locks" for the remaining inner openings, from the Multi-Mount series PMM and MM series with 1/8” flow.
- Order an appropriate number of "Coupling inserts" from the Multi-Mount series PMM and MM series with 1/8” flow.
You now only need to disconnect the outer 2 quick couplings with the thumb latch to disconnect the entire series.
Specifications:
- Material: anodized aluminum
- Available in various sizes: More than 5 Ports are available on request
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | -- |
| Operating Pressure: | -- |
| Temperature range: | -40ºF to 180ºF (-40ºC to 82ºC) |
| Material: | anodized aluminum |
| Size: | 1/8" flow |
| Connection: | PMM & MM serie |
| Seal: | -- |
| Hose connection: | -- |
| Weight: | -- |
