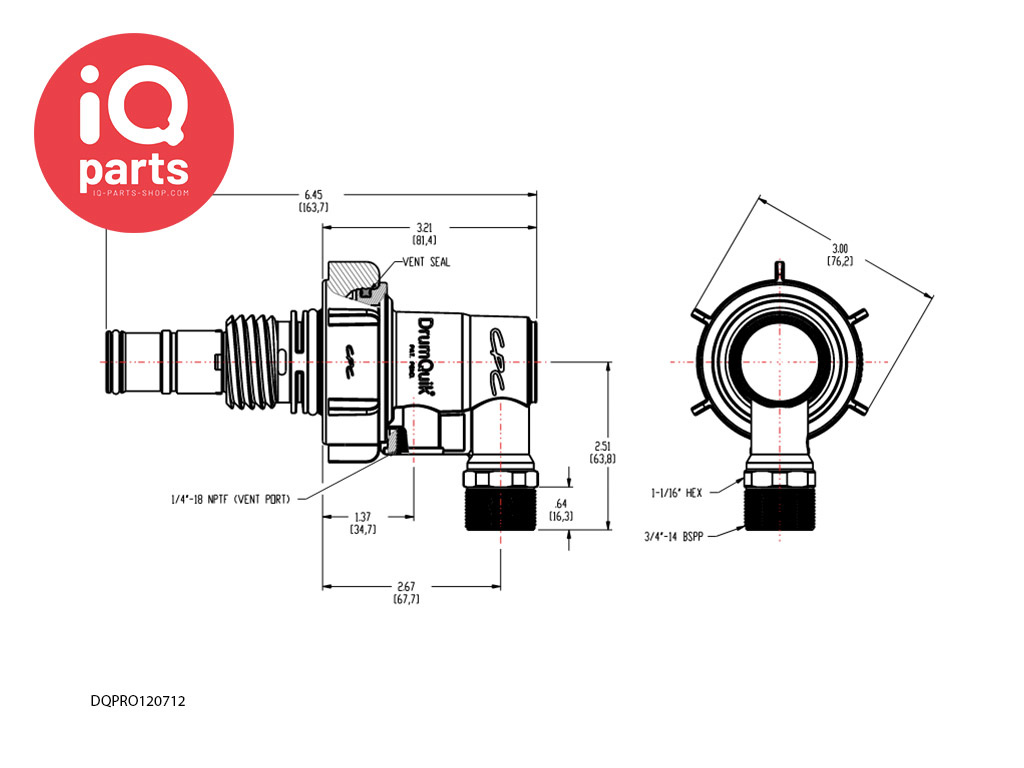

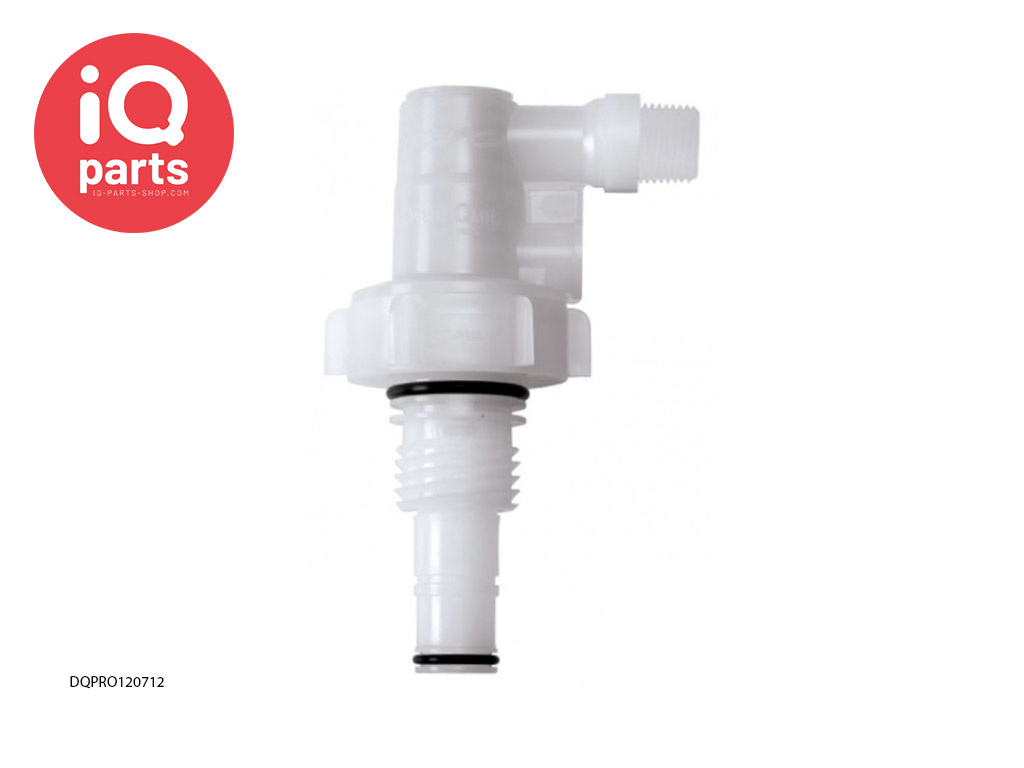

CPC - DQPRO120712 | Elbow Coupler | Polypropylene | 3/4" BSPP male thread | EPDM
Brand:
CPC
| Article number: | CPC-DQPRO120712 |
| SKU: | DQPRO120712 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information
CPC - DQPRO120712 | Elbow Coupler | Polypropylene | 3/4" BSPP male thread | EPDM
The DQPRO120712 elbow coupling with a 3/4" BSPP male thread. The coupling material is polypropylene and the two integrated seals are made of EPDM.
You can combine this coupling with all DrumQuik PRO series inserts, dip tubes and color coding.
DrumQuik® PRO is changing the world of chemical management with its unique closed-system design. The DrumQuik dispensing system for smarter chemical management provides safe, easy and economical extraction of chemicals from drums, jerricans and IBC totes—while reducing spills, containing hazardous fumes and enhancing workplace safety.
The coupler contains an outlet for the medium and an inlet. A valve can also be placed on this inlet, which ensures that only air can enter and no dangerous gases can escape.
A hose can also be connected by means of a quick coupling (See CPC quick couplings) to add gases (such as N2 and CO2) and to pressurize the drum.
Specifications of this item:
- Material: Polypropylene
- with valve
- Valve spring: stainless steel 316 (W5)
- O-rings: EPDM
General information about the DrumQuik®PRO series:
Features and benefits:
- Quick connect/disconnect = Faster container change-outs
- Automatic shutoff valve = Stops flow when disconnected
- Disposable container insert = Reduces chemical exposure and messy handling
Materials:
- Drum insert & dip-tube: Virgin polyethylene (HDPE)
- Shipping plug: Virgin polyethylene (HDPE) or FKM
- Valves: 316 SS, Hastelloy C, virgin PEEK UHP, PPS or Teflon encapsulated 316 SS (TESS)
Seals:
- Coupler seals: EPDM, FKM or Simriz UHP FFKM Perfluoroelastomer
- Bung seal: Polyolefin, EPDM or FKM
-
Shipping plug seal: EPDM or FKM
Specifications:
Operating pressure:
- Disconnected: vacuum to 3.1 bar (45 PSI)
- When coupled: vacuum to drumrating
Operating Temperature:
- Drum Insert: -29ºC to 49ºC (-20ºF to 120ºF)
- Coupler: HPDE 0ºC to 49ºC (32ºF to 120ºF)
Look for more technical info in the PDF
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Chemicals |
| Operating Pressure: | 3,1 bar Vacuum |
| Temperature range: | 0° C tot +49° C |
| Material: | Polypropylene |
| Size: | -- |
| Connection: | Elbow Coupling |
| Seal: | EPDM |
| Hose connection: | 3/4" BSPP male thread |
| Weight: | -- |
