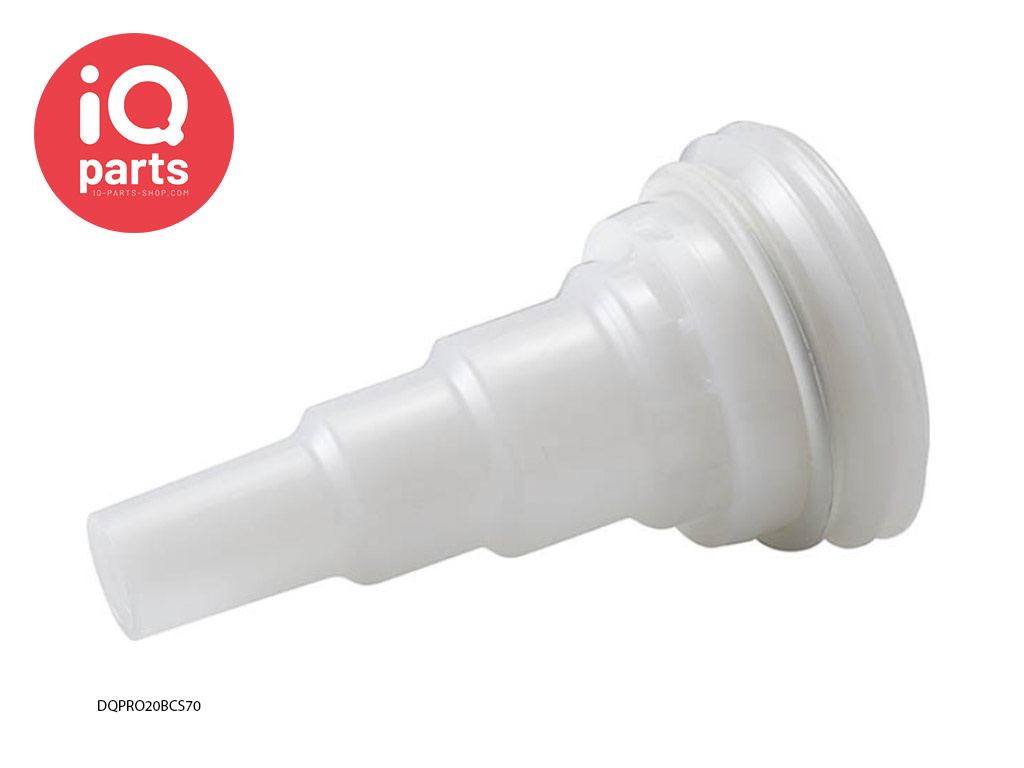

CPC - DQPRO20BCS70 | Drum insert | Polypropylene | 70 mm BCS Thread
Brand:
CPC
| Article number: | CPC-DQPRO20BCS70 |
| SKU: | DQPRO20BCS70 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information
CPC - DQPRO20BCS70 | Drum insert | Polypropylene | 70 mm BCS Thread | EPDM
For European 70x6 and Asian 70x5 Plastic Drum
The DQPRO20BCS70 Drum Insert with a 70 mm BCS thread. The material of the insert is polyethylene and the integrated seal is made of EPDM.

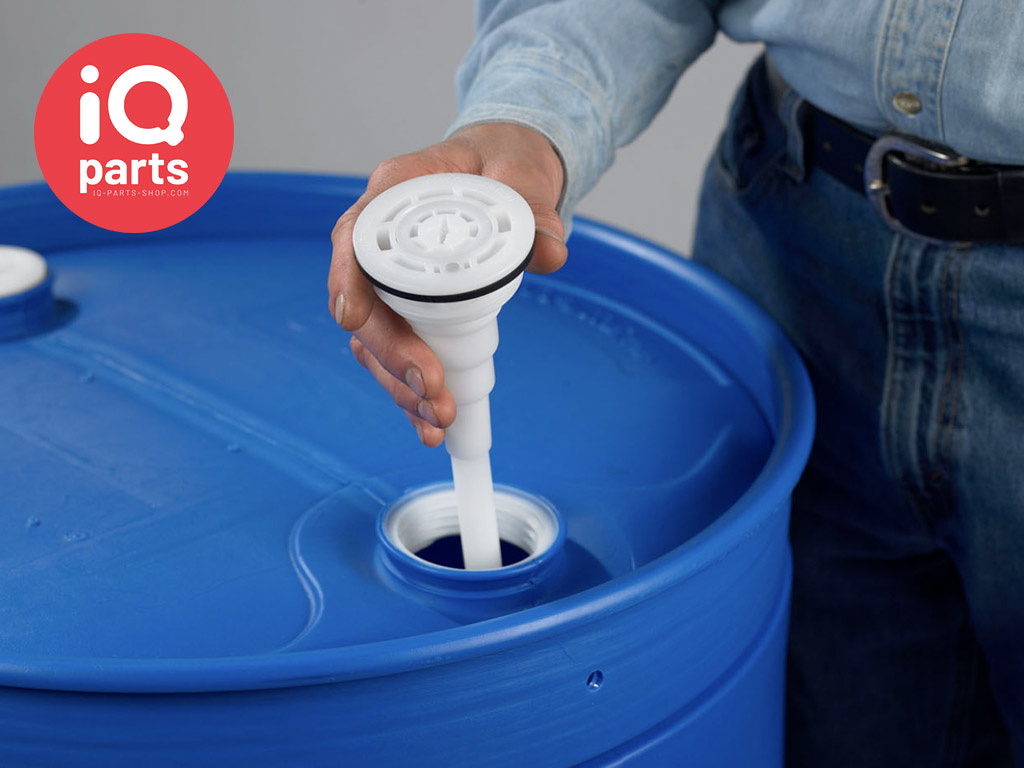

Mount the Dip-tube on the Drum insert. Place the drum insert into the barrel with a torque wrench. You can then unscrew the shipping plug from the insert with a large flat blade screwdriver. Now you simply insert the coupling in the drum insert. When the barrel is empty, disconnect the coupling and simply screw the cap back into the insert. Safe and without spills!!
You can combine this coupling with all DrumQuik PRO series inserts, dip tubes and color coding.
DrumQuik® PRO is changing the world of chemical management with its unique closed-system design. The DrumQuik dispensing system for smarter chemical management provides safe, easy and economical extraction of chemicals from drums, jerricans and IBC totes—while reducing spills, containing hazardous fumes and enhancing workplace safety.
Specifications of this item:
- Material: Polypropylene
- O-rings: EPDM
General information about the DrumQuik®PRO series:
Features and benefits:
- Quick connect/disconnect = Faster container change-outs
- Automatic shutoff valve = Stops flow when disconnected
- Disposable container insert = Reduces chemical exposure and messy handling
Materials:
- Drum insert & dip-tube: Virgin polyethylene (HDPE)
- Shipping plug: Virgin polyethylene (HDPE) or FKM
- Valves: 316 SS, Hastelloy C, virgin PEEK UHP, PPS or Teflon encapsulated 316 SS (TESS)
Seals:
- Coupler seals: EPDM, FKM or Simriz UHP FFKM Perfluoroelastomer
- Bung seal: Polyolefin, EPDM or FKM
-
Shipping plug seal: EPDM or FKM
Specifications:
Operating pressure:
- Disconnected: vacuum to 3.1 bar (45 PSI)
- When coupled: vacuum to drumrating
Operating Temperature:
- Drum Insert: -29ºC to 49ºC (-20ºF to 120ºF)
- Coupler: HPDE 0ºC to 49ºC (32ºF to 120ºF)
Look for more technical info in the PDF
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Chemicals |
| Operating Pressure: | 3,1 bar Vacuum |
| Temperature range: | -29° C tot +49° C |
| Material: | Polypropylene |
| Size: | 70 mm BCS thread |
| Connection: | Drum insert |
| Seal: | EPDM |
| Hose connection: | -- |
| Weight: | -- |
