CPC - DTLD17004 / DTLD17004MBLK | Coupling body | ABS | Dual Hose barb 6,4 mm (1/4")

€14,64 Incl. tax
€12,10 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: CPC-DTLD17004MBLK
SKU: DTLD17004MBLK
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
  • Customer service 09:00 - 17:00
Information

CPC - DTLD17004 / DTLD17004MBLK | Coupling body | ABS | Dual Hose barb 6,4 mm (1/4")

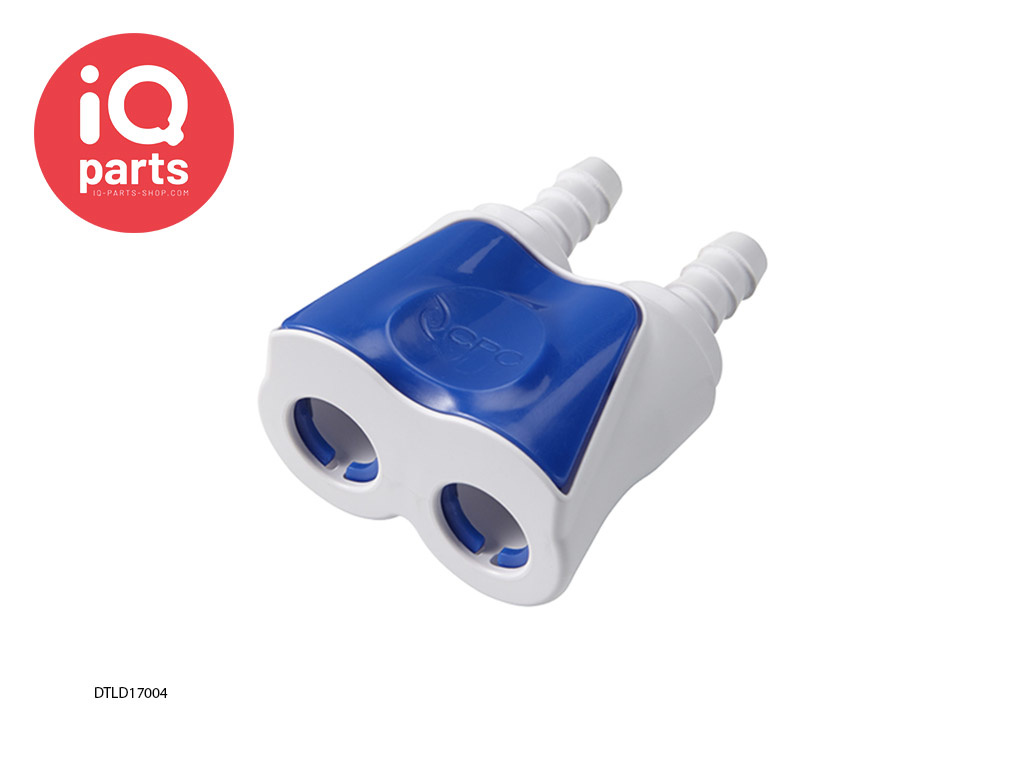

An Inline, double coupling from CPC from the DTLD series with a 6.4 mm hose tail. This quick coupling (female) ensures a leak-free seal and is made of ABS. This coupling is available in white with blue latch (DTLD17004) and black with gray latch (DTLD17004MBLK). (Choose at the top right at "Make a choice:")

Properties and benefits of the coupling from the DTLD series:
  • Single thumb latch; Minimizes inadvertent latch activation
  • Latch always in position to accept insert; Ensures leak-free operation
  • Compact, modular design; Fits well in de hand and is easy to wipe down
  • Independent quick connections; Requires minimal manual dexterity

General information about the DTLD series:
The 1/4" flow DTLD Series dual flow couplings provide a unique thumb latch with independent or simultaneous connections of loose tube sets. Made from ABS thermoplastic, the DTLD Series valved couplings ensures when connecting one insert, the second insert is prevented from disconnecting.
One-hand operation makes the DTLD Series the choice for simple, independent connections of dual port connections. The DTLD Series is compatible with all PLC, PLC12 and LC Series Inserts. For more technical information, see the PDF.

  • Material: ABS
  • Thumb latch and retainer: Acetal
  • Available in 2 sizes: 6.4 mm and 9.5 mm ID
  • With valve
  • Internal insert valve: Polypropylene
  • Internal body valve: Acetal
  • Valve spring made of stainless steel 316 (W5)
  • O-rings: Buna-N (NBR)
  • Vacuum up to 1.38 bar (20 PSI)
  • Temperature range: 0ºC to 48ºC
  • Compliance: REACH and RoHS

Look at related products for the right choice for your application or contact our sales department: [email protected]



Specifications
Medium: Liquid / Air
Operating Pressure: 1,38 bar Vacuum
Temperature range: 0° C tot +48° C
Material: ABS, Acetal, Polypropylene
Size: 1/4" flow
Connection: Dubble Quick coupling
Seal: Buna-N (NBR)
Hose connection: 6,4 mm (1/4") Inner diameter
Weight: --
CPC CPC - DTLD17004 / DTLD17004MBLK | Coupling body | ABS | Dual Hose barb 6,4 mm (1/4")
