CPC - EFCD16612 | In-line Coupling Body | Panel mount | hose barb 9,5 mm (3/8")
Brand:
CPC
| Article number: | CPC-EFCD16612 |
| SKU: | EFCD16612 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
- Customer service 09:00 - 17:00
Information

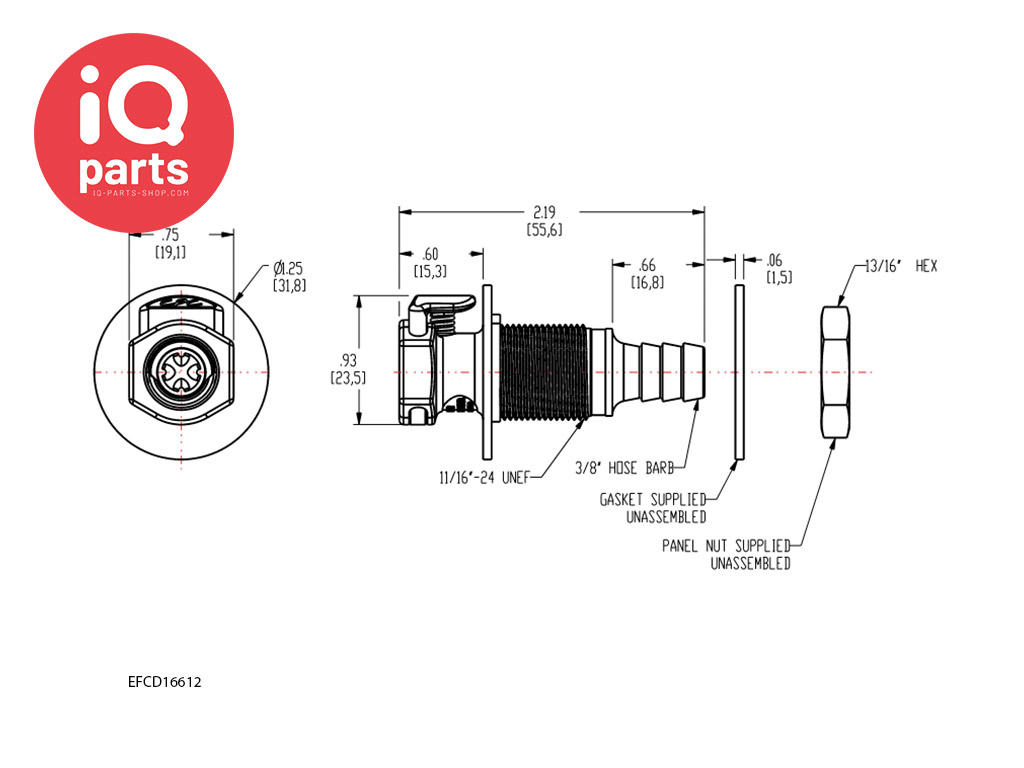

CPC - EFCD16612 | In-line Coupling Body | Panel mount | hose barb 9,5 mm (3/8")
An In-line Coupling Body of CPC from the EFC12 series with a 9,5 mm hose barb and suitable for panel mounting through the male thread and fastening. This Body (female) ensures a leak-free seal, partly provided by a EPDM sealing ring and is made of POLYPROPYLENE. This coupling is only available with valve (EFCD16612)
Properties of the coupling from the EFC12 series:
- High efficiency valve = More flow than PLC Series in a compact size
- Plastic thumb latch = Fewer moving parts
- Polypropylene material = Chemically resistant and gamma sterilizable
-
Compatible = Mates with most APC couplings
Applications:
- Drinking water filtration
- carpet cleaner
- air mattress systems
- heat therapy
- parts cleaning
-
dispensing systems
General information about the EFC12 series:
The 9/32" flow EFC12 Series couplings feature a high efficiency valve design that provides a greater flow capability than any other coupling its size. Chemically resistant polypropylene material makes it ideal for harsh environments. The EFC12 Series adds a bulkhead panel mount option for tight seals against tank walls and drums.
These couplings offer the flexibility of multiple configurations and terminations and mate with APC-serie. For more technical information, see the PDF.
- Material main components and valve: Polypropylene
- Thumb latch is Polypropylene
- Available in various sizes: 6.4 mm and 9.5 mm ID, also at an angle of 90º
- Available with hose tail or male thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- External springs and pin: SS 302 (W4)
- Available with panel mounting option
- O-rings: EPDM
- Panel mount gasket: EPDM
- Vacuum up to 7.2 bar (105 PSI)
- Temperature range: 0ºC to 71ºC constant
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Chemicals |
| Operating Pressure: | 7,2 bar Vacuum |
| Temperature range: | 0° C tot +71° C |
| Material: | Polypropylene |
| Size: | 9/32" flow |
| Connection: | In-line Coupling Body |
| Seal: | EPDM |
| Hose connection: | 9,5 mm (3/8") Inner diameter |
| Weight: | -- |
