ERIKS - Spiralex OHS Bridge clamp with Eyelet W2
Brand:
ERIKS
Article number: | ERK-11195259 |
EAN: | 4049645030429 |
SKU: | 11195259 |
- 2 year warranty
- Delivery time: 1 week after order date
- Customer service 09:00 - 17:00
Information
ERIKS - Spiralex OHS Bridge clamp with Eyelet W2
Version:
Special worm screw clamp for spiral hoses type Vacuflex, Abraflex and CP (with the exception of the hose types Abraflex-HD and AbraflexSHD).
With suspension eye to guide hoses safely and correctly.

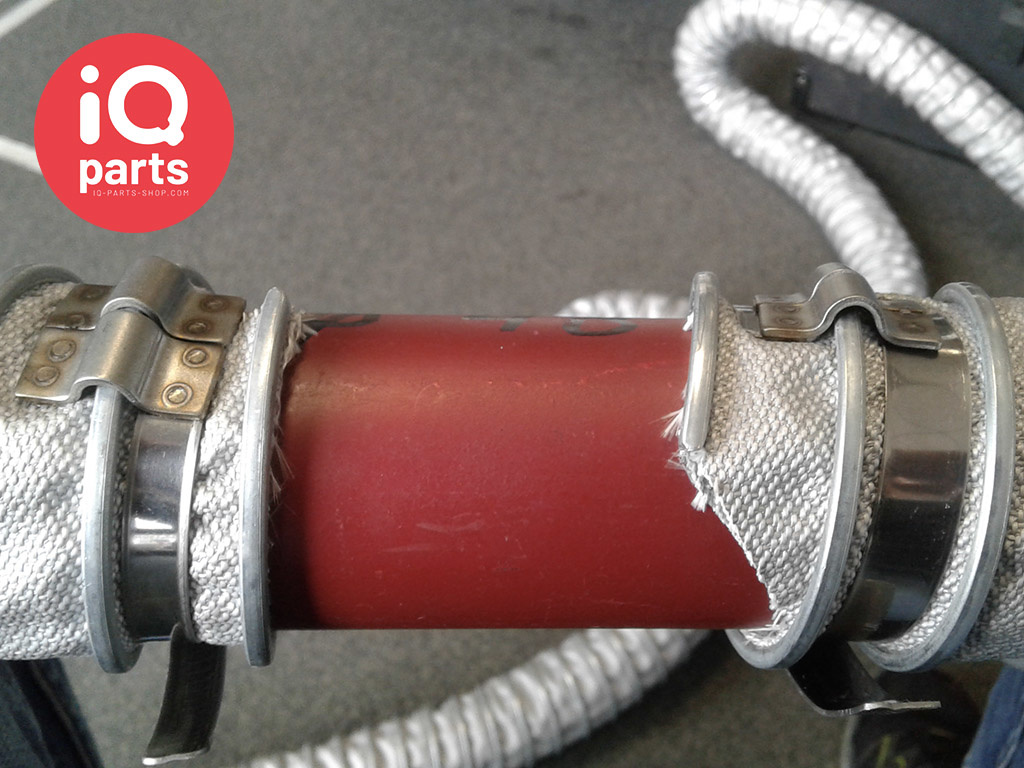

Worm screw clamp with an integrated "spiral bridge", which ensures full pressure on the entire circumference of the hose.
This guarantees a secure and tight connection of the hose to the connecting piece.
Easy to assemble.
According to DIN 3017.
Material:
- Clamp strip chrome steel (AISI 430)
- Spiral bridge stainless steel (AISI 304)
- Screw galvanized steel (AISI 430)
- Fixing eyelet, galvanized steel (AISI 430)
- Bandwidth: 9 and 12 mm
Larger dimensions available on request.

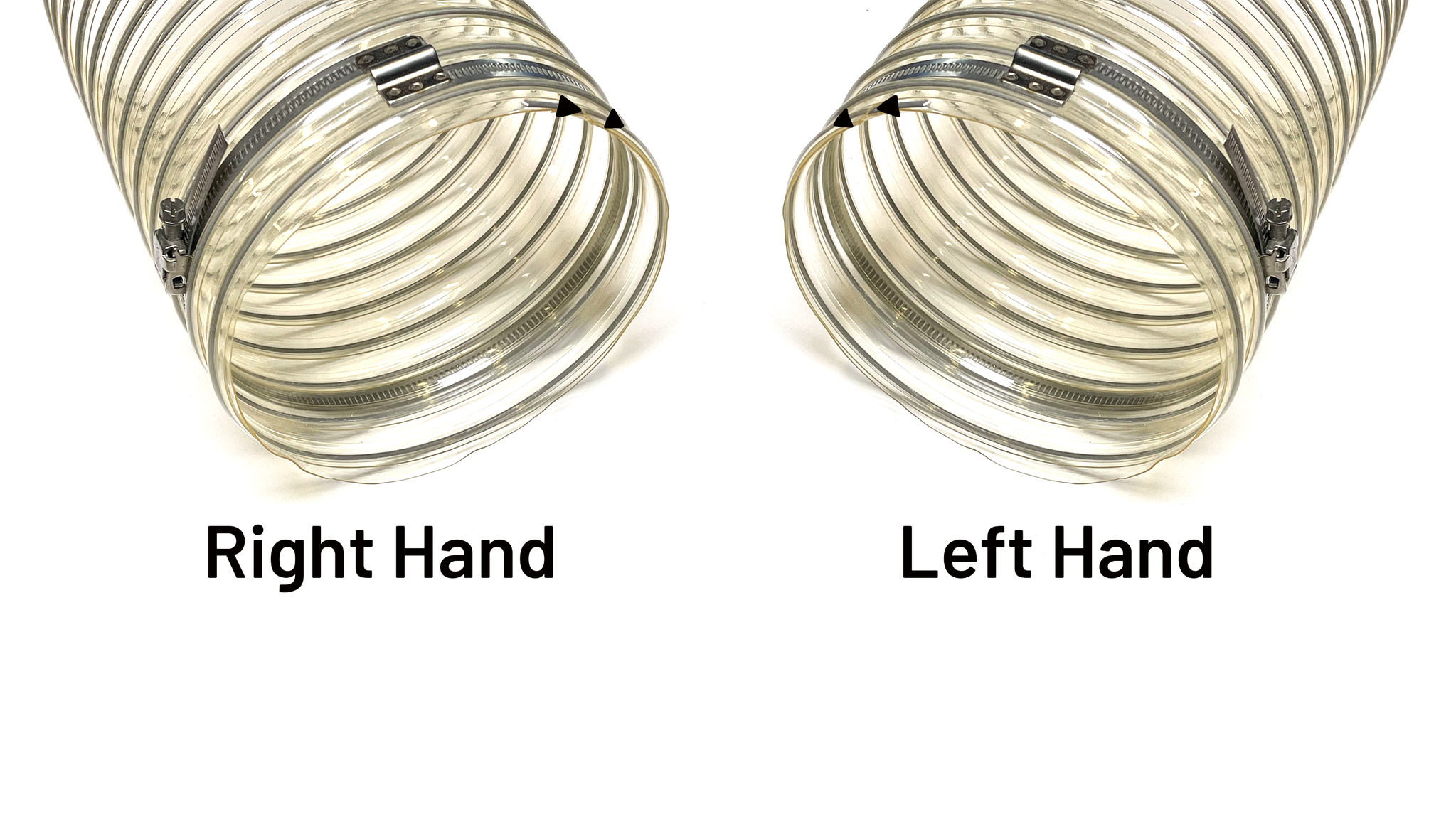

Choose in the top right corner of the menu whether you need a right-handed or left-handed bridge clamp.
95% of the hoses are clockwise.
Product code:
11195259 - 11195261 - 11195273 - 11195274 - 11195276 - 11195277 - 11195278 - 11195279 - 11195280 - 11195281 - 11195282 - 11195283 - 11195284 - 11195286 - 11195287 - 11195288 - 11195289 - 11195290 - 11195291 - 11195292 - 11195293 - 11195294 - 11195296 - 11195297 - 11195298 - 11195299 - 11195300 - 11195301
EAN:
4049645030429 - 4049645030436 - 4049645030443 - 4049645030450 - 4049645030467 - 4049645030474 - 4049645030481 - 4049645030498 - 4049645030504 - 4049645030511 - 4049645030528 - 4049645030535 - 4049645030542 - 4049645030559 - 4049645030566 - 4049645030573 - 4049645030580 - 4049645030597 -4049645030603 - 4049645030610 - 4049645030627 - 4049645030634 - 4049645030641 - 4049645030658 - 4049645030665 - 4049645030672 - 4049645030696 - 4049645030702
Norresnumber:
217-0055-0000 - 217-0065-0000 - 217-0085-0000 - 217-0095-0000 - 217-0115-0000 - 217-0125-0000 - 217-0135-0000 - 217-0145-0000 - 217-0155-0000 - 217-0165-0000 - 217-0175-0000 - 217-0195-0000 - 217-0215-0000 - 217-0245-0000 - 217-0275-0000 - 217-0295-0000- 217-0315-0000- 217-0495-0000
Specifications
Bolt: | -- |
Bandwidth: | 9 - 12 mm |
Tightening torque (Maximum): | 3 Nm (Maximum) |
