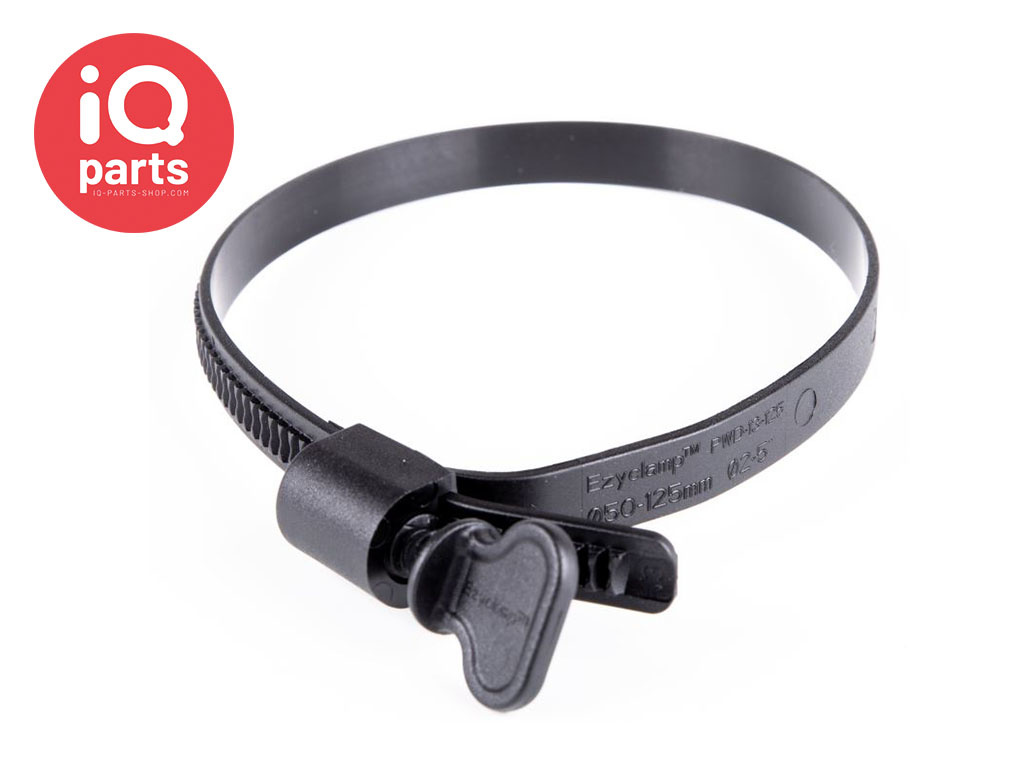

HCL Ezyclamp™ with wing made of Polyamide 66

HCL Ezyclamp™ with wing made of Polyamide 66

Designed and manufactured by HCL to the highest quality the Ezyclamp™is a highly versatile Nylon Worm Drive Hose Clamp. The Ezyclamp™ is 12.7mm (1⁄2”) wide and available in 5 sizes covering a diameter range of 25mm (1”) to 150mm (6”).

It is offered in a choice of materials:

• PA66 (Nylon 6.6.) for standard applications
• PA12 (Nylon 12) for niche markets such as 5G telecommunications & Subsea.

Key Features:

• wing
• 2 installation options 1 Minimal Leak Path
• Quick & Easy to Install 1 Non-Conductive
• 2 screw types – Wing or 8mm Hex
• 2 Material Options – Nylon 6.6. or Nylon 12 1 Non-Corrosive
• Non-Magnetic
• Excellent UV resistance (PA12)

Temperature:

PA66 (Nylon 6.6):

• Max Long term Temp 125°C (255°F).
• Occasional Peak Temp 170°C (340°F)

PA12 (Nylon 12):

• Max Long term Temp 100°C (212°F)

Flammability:

• PA66 (Nylon 6.6.) UL 94 V-2
• PA12 (Nylon 12) UL 94 HB

Standard Colour:

• Black (other colours on request)

Available per 100 pieces
