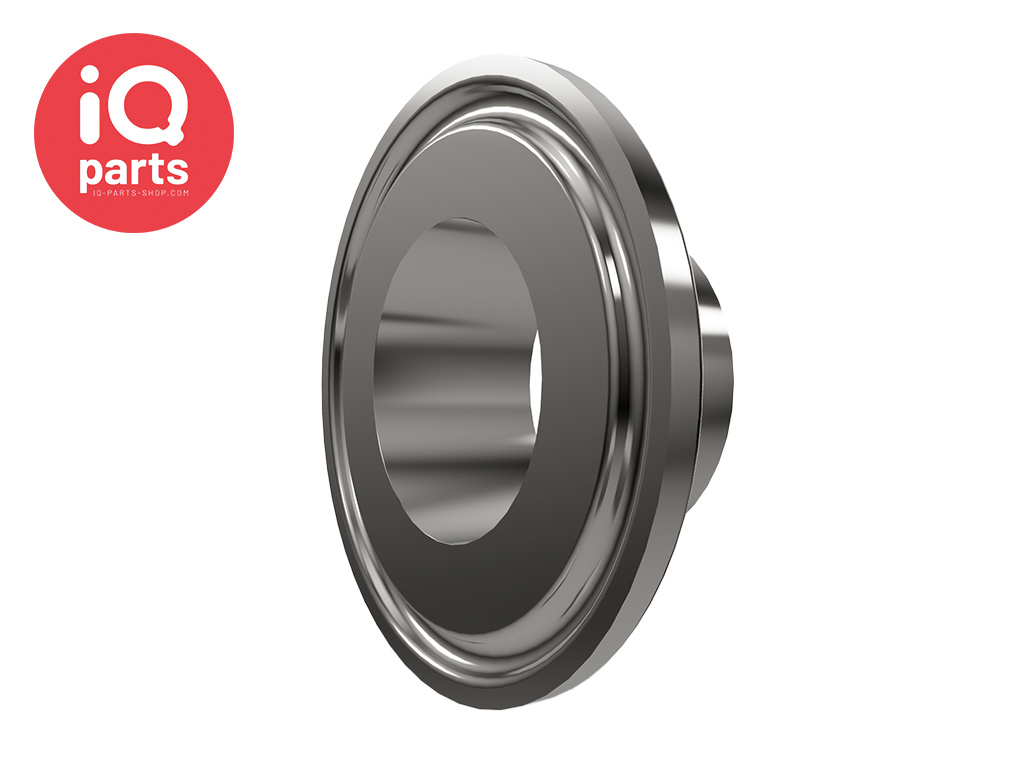

IQ-Parts Ferrules DIN32676 | sched. B | Short (KK) | AISI 316L
| Article number: | IQP-20412950 |
- 2 year warranty
- Delivery time: 2 Weeks
- Customer service 09:00 - 17:00
- Material: Stainless steel AISI 316L (corresponding to 1.4404)
- Flange sleeve in different versions: according to DIN32676 sched. A/B/C in version KK (Short) and KL (Long), ISO 2852, EN ISO 1127, special sizes, BS 4825, etc.
- Standard interface: H3 hygiene class, inside <0.8 µm, outside <1.6 µm
|
Sched. B DN Metric |
Tube OD A |
Tube ID B |
Flange OD C |
Groove D |
Short (KK) E |
Item-No. |
|
DN10,2 (NW06) |
10,2 |
7,0 |
25,0 |
20,2 |
12,7 |
20412950 |
|
DN13,5 (NW08) |
13,5 |
10,3 |
25,0 |
20,2 |
12,7 |
20412990 |
|
DN17,2 (NW10) |
17,2 |
14,0 |
25,0 |
20,2 |
12,7 |
20413040 |
|
DN17,2 (NW10) |
17,2 |
14,0 |
50,5 |
43,5 |
21,5 |
20413060 |
|
DN21,3 (NW15) |
21,3 |
18,1 |
50,5 |
43,5 |
21,5 |
20413100 |
|
DN26,9 (NW20) |
26,9 |
23,7 |
50,5 |
43,5 |
21,5 |
20413152 |
|
DN33,7 (NW25) |
33,7 |
29,7 |
50,5 |
43,5 |
21,5 |
20413200 |
|
DN42,4 (NW32) |
42,4 |
38,4 |
50,5 |
21,5 |
20413200 |
|
|
DN42,4 (NW32) |
42,4 |
38,4 |
64,0 |
56,5 |
21,5 |
20413250 |
|
DN48,3 (NW40) |
48,3 |
44,3 |
64,0 |
56,5 |
21,5 |
20413300 |
|
DN60,3 (NW50) |
60,3 |
56,3 |
77,5 |
70,5 |
28,0 |
20413355 |
|
DN60,3 (NW50) |
60,3 |
56,3 |
77,5 |
70,5 |
21,5 |
20413350 |
|
DN76,1 (NW65) |
76,1 |
72,1 |
91,0 |
83,5 |
28,0 |
20413405 |
|
DN76,1 (NW65 |
76,1 |
72,1 |
91,0 |
83,5 |
21,5 |
20413400 |
|
DN88,9 (NW80) |
88,9 |
84,3 |
106,0 |
97,0 |
28,0 |
20413455 |
|
DN88,9 (NW80) |
88,9 |
84,3 |
106,0 |
97,0 |
21,5 |
20413450 |
|
DN114,3 (NW100) |
114,3 |
109,7 |
130,0 |
122,0 |
28,0 |
20413505 |
|
DN139,7 (NW125) |
139,7 |
134,5 |
155,0 |
146,0 |
28,0 |
20413555 |
|
DN168,3 (NW150) |
168,3 |
163,1 |
183,0 |
174,0 |
28,0 |
20413600 |
|
DN219,1 (NW200) |
219,1 |
213,9 |
233,5 |
225,0 |
28,0 |
20413650 |
|
DN273,0 (NW250) |
273,0 |
267,8 |
286,1 |
|
28,0 |
20413700 |
|
DN323,9 (NW300) |
323,9 |
318,7 |
338,0 |
|
28,0 |
20413750 |
