CPC - FFC10835 | Coupling Body | Polysulfone | 1/2" NPT Pipe thread

€24,43 Incl. tax
€20,19 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: CPC-FFC10835
SKU: FFC10835
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
Information

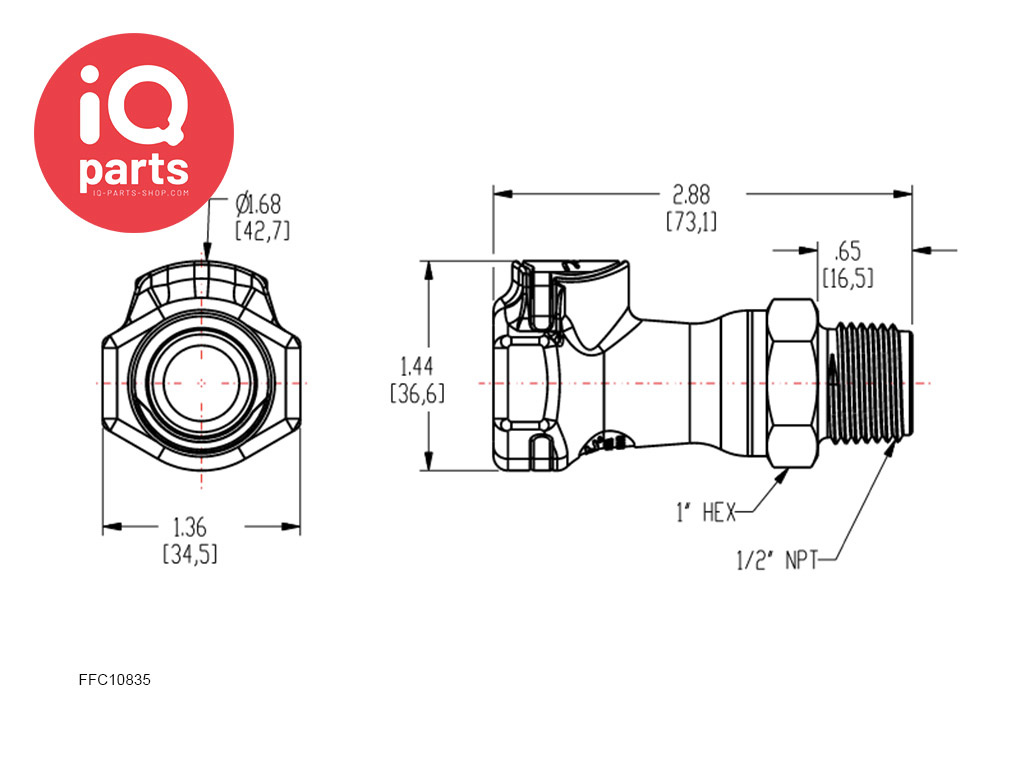

CPC - FFC10835 | Coupling Body | Polysulfone | 1/2" NPT Pipe thread


An in-line coupling of CPC from the FFC35 series with a 1/2" NPT Pipe thread. This quick coupling (female) ensures a leak-free seal and is made of Polysulfone. This coupling is only available without a valve (FFC10835).

FFC35 Series 1/2" flow couplings feature double the flow of the HFC Series couplings. The FFC Series has a non-valved bore that increases flow and minimizes turbulence. The polysulfone material is able to withstand demanding applications and features physical strength, chemical resistance and autoclavability. An ergonomic design and a large, shrouded thumb pad produce a coupling that is easy to grip and simple to operate.

Characteristics and benefits:
  • Polysulfone; Physically strong and autoclavable
  • No valves, Exeprional flow
  • Ergonomic design; Easy to grip, simple to operate

Possible areas of application:
  • Filtration of deionized water
  • floor cleaning systems
  • drinking water treatment
  • drainage pipes
  • air cooling systems
  • wastewater treatment

Materials:
  • Main components and valve: Polysulfone
  • External springs and pin: AISI 316 Stainless Steel (W5)
  • Panel Mount ring: EPDM
  • 0-ring and female GHT gasket: FDA compliant Buna-N
  • Colour: Natural white with charcoal gray latch

Specifications:
  • Working pressure: vacuum up to 8.6 bar (125 PSI)
  • Operating Temperature: -40ºC to 138ºC (-40ºF to 280ºF)

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Air / Chemicals
Operating Pressure: 8,6 bar Vacuum
Temperature range: -40° C tot +138° C
Material: Polysulfone
Size: 1/2" NW
Connection: In-line Coupling Body
Seal: Buna-N (FDA)
Hose connection: 1/2" NPT Pipe Thread
Weight: --
