NORMACONNECT® FGR COMBI GRIP E | NBR | W5
Brand:
NORMA
| Article number: | NOR-5848660038 |
| SKU: | 5848660038 |
- 2 year warranty
- Delivery time: on request
Information

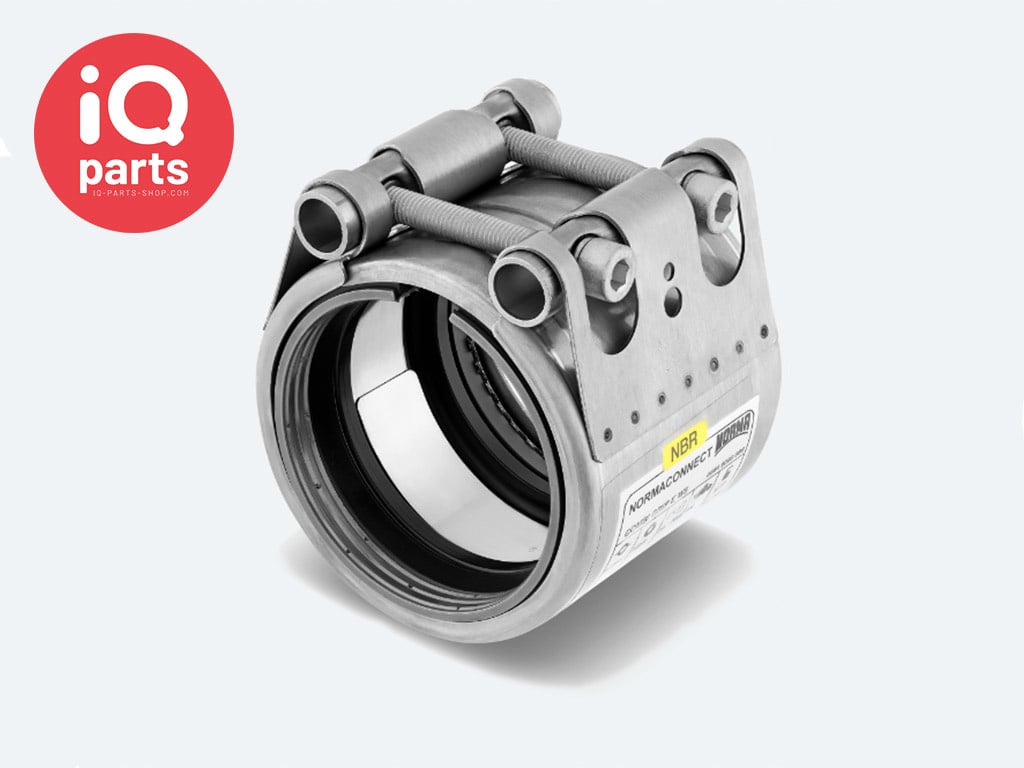

NORMACONNECT® FGR COMBI GRIP E | NBR | W5
The combining pipe coupling.
FGR COMBI GRIP E axial restraint pipe couplings are used to connect plastic pipes with metal pipes. On the side connecting the plastic pipe, the coupling has a special anchoring ring with rows of flat teeth which are pressed into the pipe surface without damaging the material. At the same time the force applied is distributed evenly across the pipe surface. On the side connecting the metal pipe, the coupling has a different anchoring ring with conically stamped teeth which grip into the pipe surface. Due to the special design of the anchoring ring the coupling can withstand even high vibration loads.
Characteristics:
- Sizes: 60,3 / 63 mm – 139,7 / 140 mm
- Working pressure: 16.0 – 6.0 bar
- Material: W5 (AISI 316, 1.4571/1.4401)
Temperature:
- EPDM: 26.9 – 168.3mm: -30ºC to +125ºC; > 180.0 mm: -20ºC to +80ºC (Click here for the EPDM version)
- NBR: -20ºC to +80ºC
Advantages:
- Time-saving installation: no welding, pre-alignment or pipe end treatment required
- Space-saving: can be installed in hard-to-reach places
- Pipe tolerance compensation and angular distortion compensation
Applications:
- shipbuilding
- offshore
- machine building
- (petro-)chemical industry
- sewerage works
The NORMACONNECT® COMBI GRIP E is almost identical to the NORMACONNECT® COMBI GRIP. The COMBI GRIP E has hollow trunnions containing the bolts, the COMBI GRIP has solid trunnions and are mounted on the couplings > 160.0 mm.
New datasheet:
Old datasheet:
Productcode:
05848660038 – 05848660042 – 05848660043 – 05848660046 – 05848660048 - 05848660054 – 05848660061 - 05848660060 - 05848660073 – 05848660076 – 05848660086 – 05848660088 - 05848660101 –05848660108 - 05848660110 – 05848660114 – 05848660139 – 05848660141 – 05848660159
0584 8660 038 – 0584 8660 042 – 05848660 043 – 0584 8660 046 – 0584 8660 048 - 0584 8660 054 – 0584 8660 061 - 0584 8660 060 - 05848660 073 – 0584 8660 076 – 0584 8660 086 – 0584 8660 088 - 0584 8660 101 –0584 8660 108 - 0584 8660 110 – 0584 8660 114 – 0584 8660 139 – 0584 8660 141 – 0584 8660 159
EAN:
4043171734530 - 4043171717434 – 4043171732949 – 4043171709835 – 4043171718165 – 4043171785969 – 4043171537643 – 4043171736954 - 4043171915144
Specifications
| Bolt: | M8 SW6 - M10 SW8 - M12 SW10 |
| Bandwidth: | See PDF |
| Tightening torque (Maximum): | See PDF |
