Flexseal - Flexring FR | Universal Multibush for DN100, DN150 und DN200
Brand:
Flexseal
| Article number: | FLS-FR100 |
| SKU: | FR100 |
- 2 year warranty
- Delivery time: 1 week after order date
- Customer service 09:00 - 17:00
Information
Flexseal - Flexring FR | Universal Multibush for DN100, DN150 und DN200

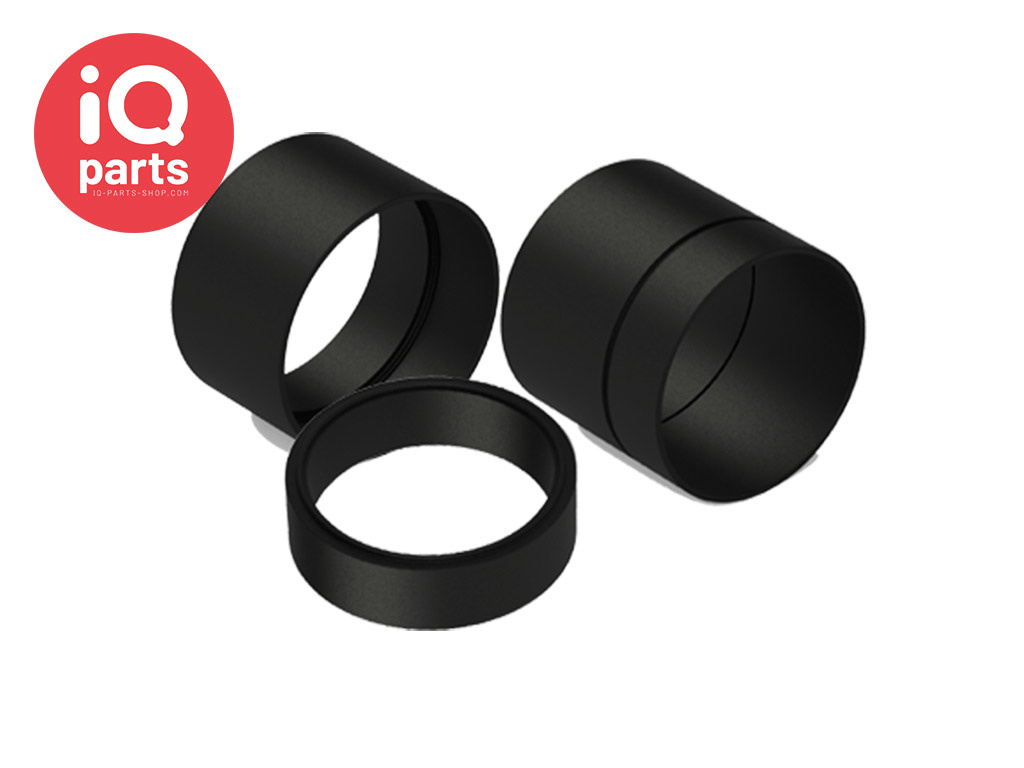

The universally applicable flexring is a collapsible compensation ring that, due to its flexibility, offers three options for compensating the difference in outer diameter between two pipes to be connected.
In combination with the respective sleeve, the flexible ring solves almost any connection problem for the nominal sizes DN100, DN150 and DN200. Especially if it is unclear which piping materials should be connected.
The purpose of the Flexring is to increase the outside diameter of a pipe to be joined when the pipe is too small for the sleeve being used. Flexseal Flexrings can be used as an additional component when connecting with sleeves & adapters or connecting elements. The Flexring fills the space between the outside of the pipe and the inside of the clamp sleeve.
The product advantages at a glance:
- Individual production according to customer requirements
- It’s versatility in use allows the Flexring to be used when a larger pipe outer diameter is required
The PDF explains how to use the flexible ring fill thicknesses.
Material:
- EPDM
The Flexring type FR consists of high-quality elastomers according to DIN 681-1 and DIN EN 295-4.
Variants:

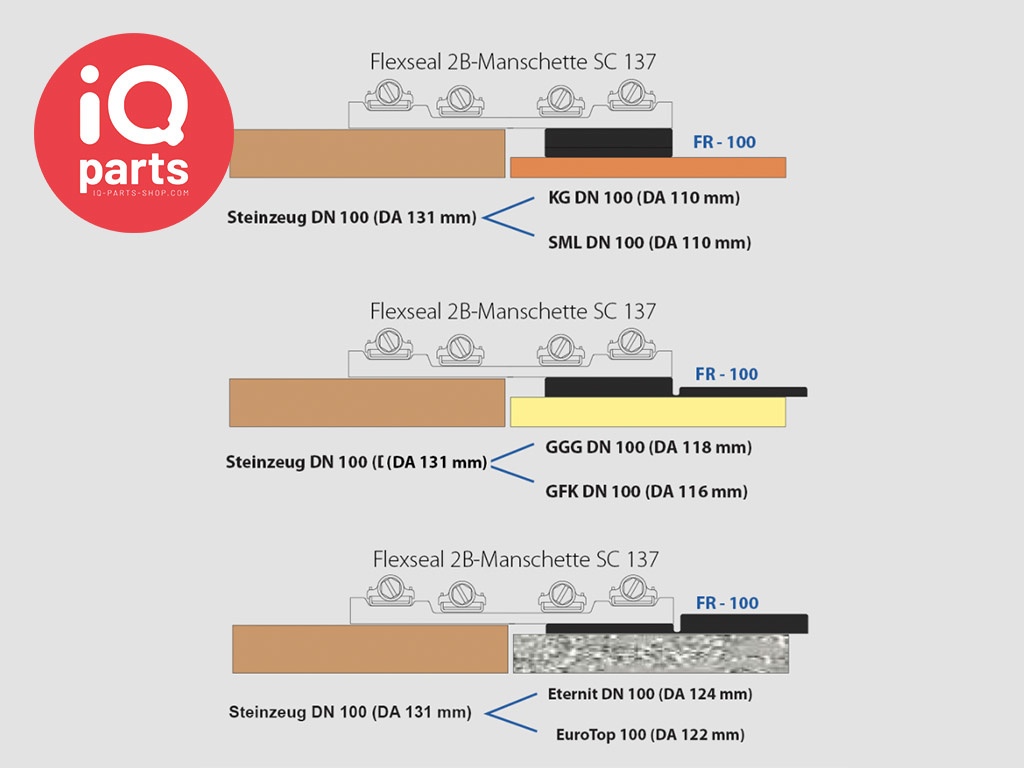

- FR 100: DN100. Bridges 3mm, 6mm and 9mm thickness difference (OD)
- FR 150: DN150. Bridges 4mm, 8mm and 12mm thickness difference (OD)
- FR 200: DN200. Bridges 8mm, 16mm and 24mm thickness difference (OD)
Application examples:
- FR100 - KG, SML, GGG, GRP, Eternit, Eurotop (DN100)
- FR150 - KG, SML, GGG, GRP, Eternit, Eurotop (DN150)
- FR200 - KG, SML, GGG, GRP, Eurotop (DN200)
Product code:
FR100 - FR150 - FR200
