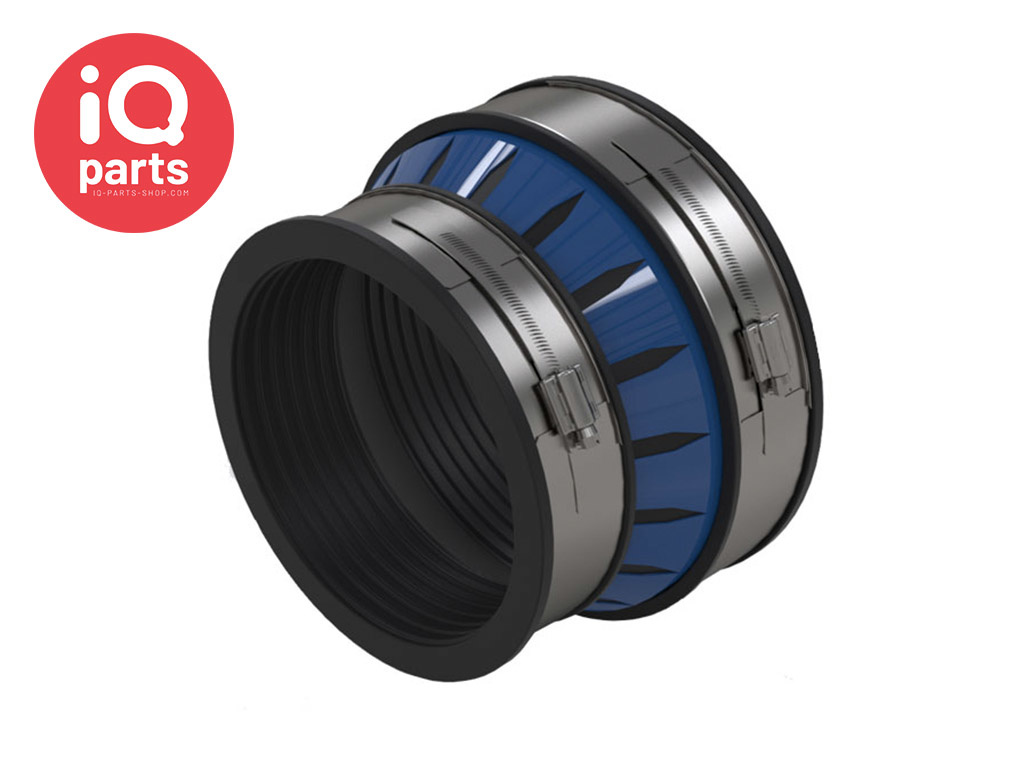

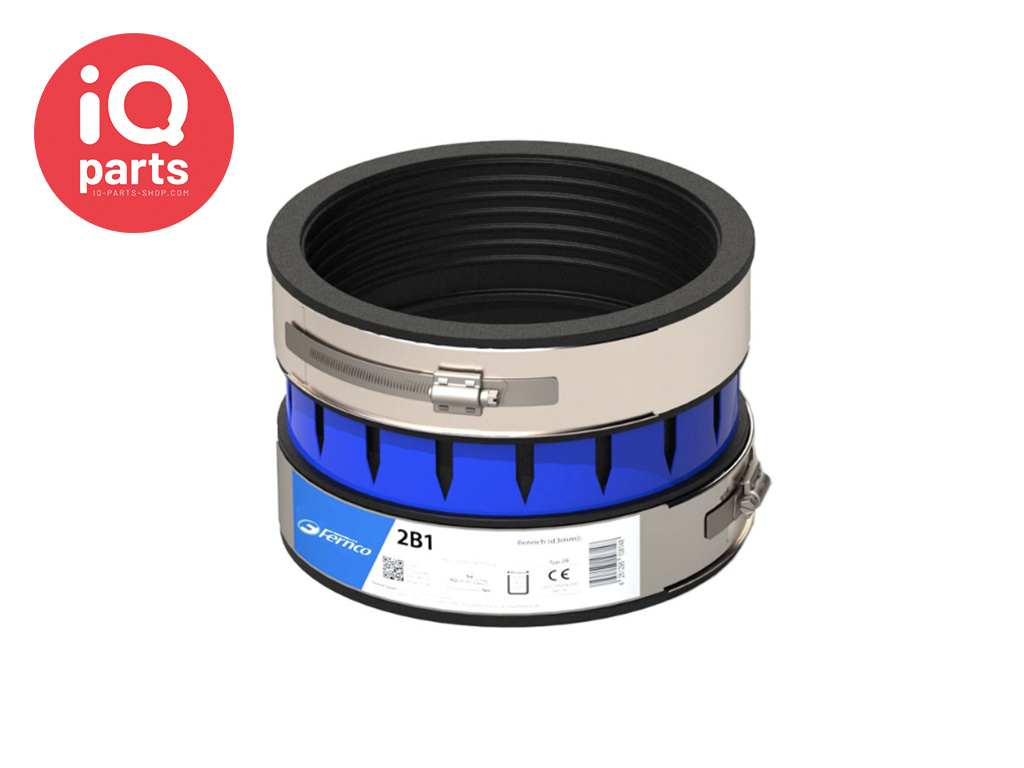

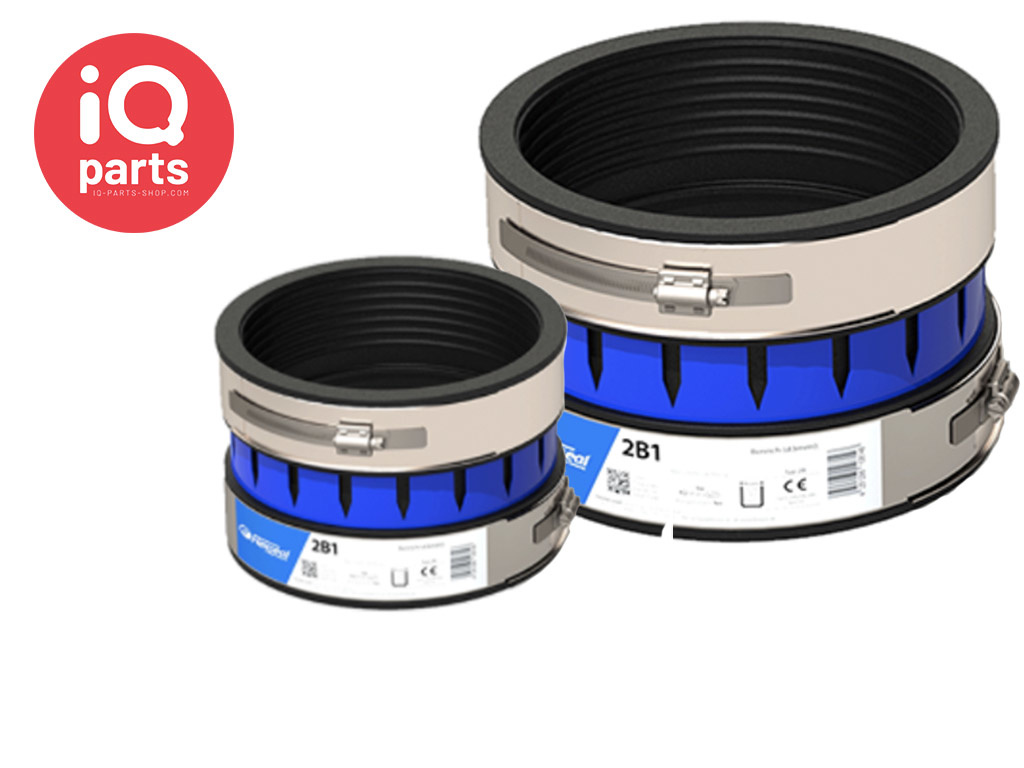

Fernco - 2B1 All-In-One Universal Coupling

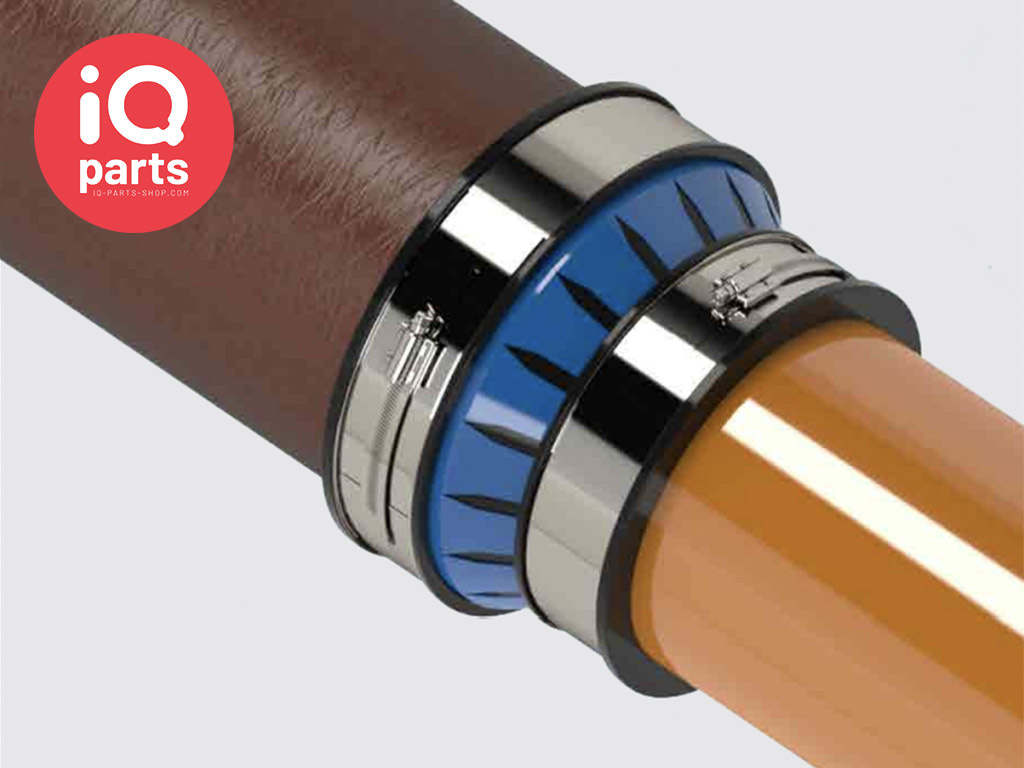

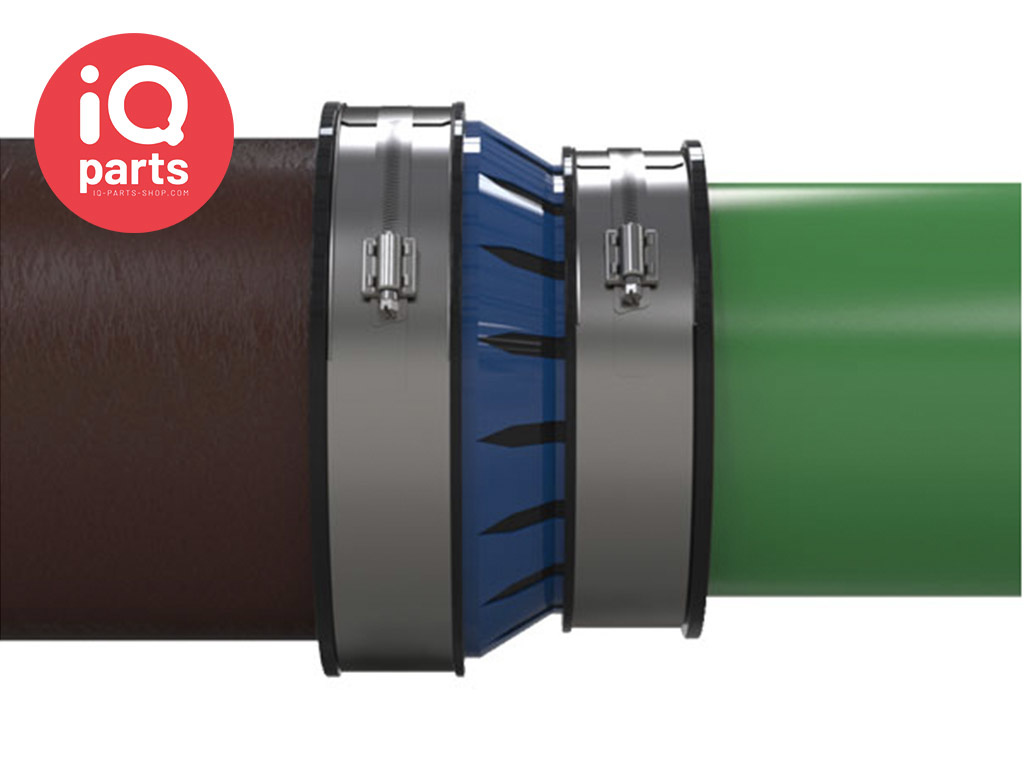

The universal connector 2B ALL-IN-ONE connect any two pipes of the same nominal diameter regardless of the differences in outside diameter, providing it is within the products size range. While providing a reliable watertight seal to various pipe sizes the product will also provide resistance to vertical shear loads. The 2B ALL-IN-ONE performs the connections what would traditionally require a multitude of flexible couplings. Furthermore, the coupling outperforms many of the features of the Unicon and similar products.



• Range available for DN 100 to DN 400
• Improved profile ensures the rubber doesn’t collapse when installed to a pipe within its size range
• The reducing shearband made of a seawater-resistant aluminum alloy offers maximum protection against vertical shear loads
• High quality tension bands made from 1.4401 (W5, AISI316) stainless steel
• Corrosion resistant
• Reduces the need to carry excessive inventory
• Quick and easy to install – no special tools required
• Satisfies the requirements of EN295-4, EN681-1 & EN 16397-1



• Rubber: EPDM according to EN681-1
• Clamps: W5, AISI 316 (SS 1.4410, V4A)
• Shearband: Aluminum
• Pressure Rating: up to 2.5 bar
• Temperature range: -50º C to 150º C
• Tightening torque: 15 Nm / 17 Nm
• Jetting resistance: 120 bar

Incl. bush as a supplement to the 2B1 coupling for bridging larger diameter differences or falling below the minimum clamping range. On request also available in other sizes.







Fernco previously sold these products under the name Flexseal.



Product code:

2B1-100 - 2B1-125 - 2B1-150 - 2B1-150B - 2B1-200S - 2B1-200L - 2B1-220 - 2B1-280 - 2B1-290 - 2B1-305 - 2B1-305L - 2B1-320 - 2B1-320L - 2B1-360 - 2B1-390 - 2B1-390L - 2B1-445 - 2B1-465 - 2B1-300B - 2B1-540 - 2B1-570
