Flexseal - SC Standard Sleeve Coupling Typ 2B
Brand:
Flexseal
| Article number: | FLS-SC-050-065 |
| SKU: | SC65 |
- 2 year warranty
- Delivery time: 2 Weeks
Information

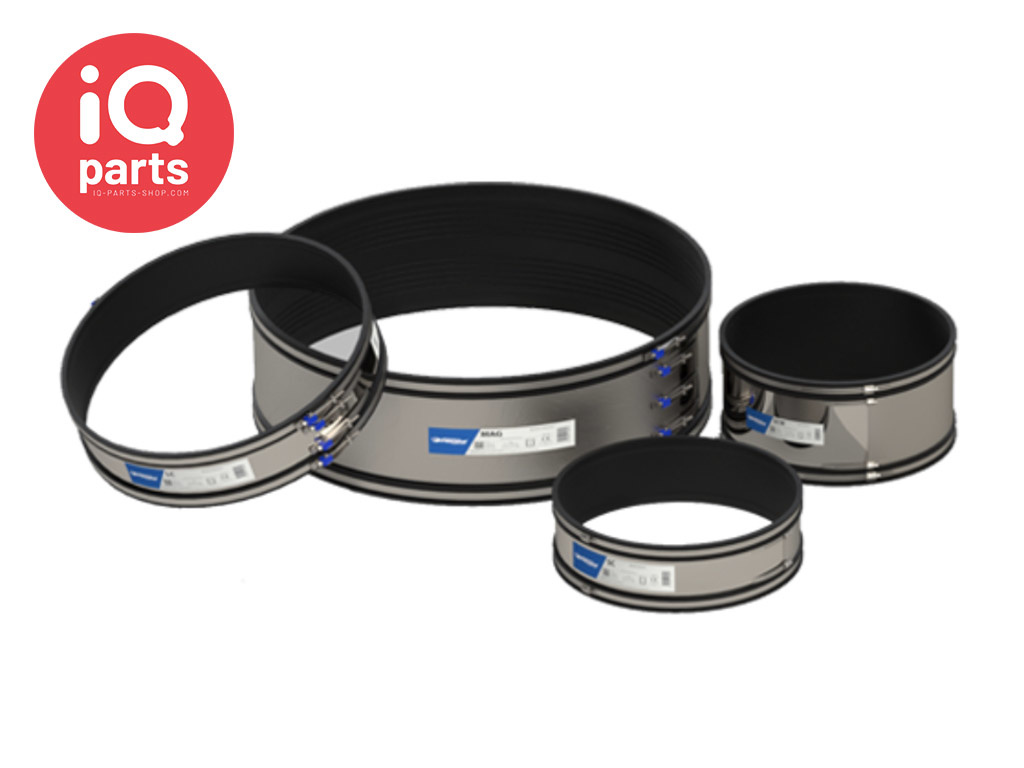

Flexseal - SC Standard Sleeve Coupling Typ 2B

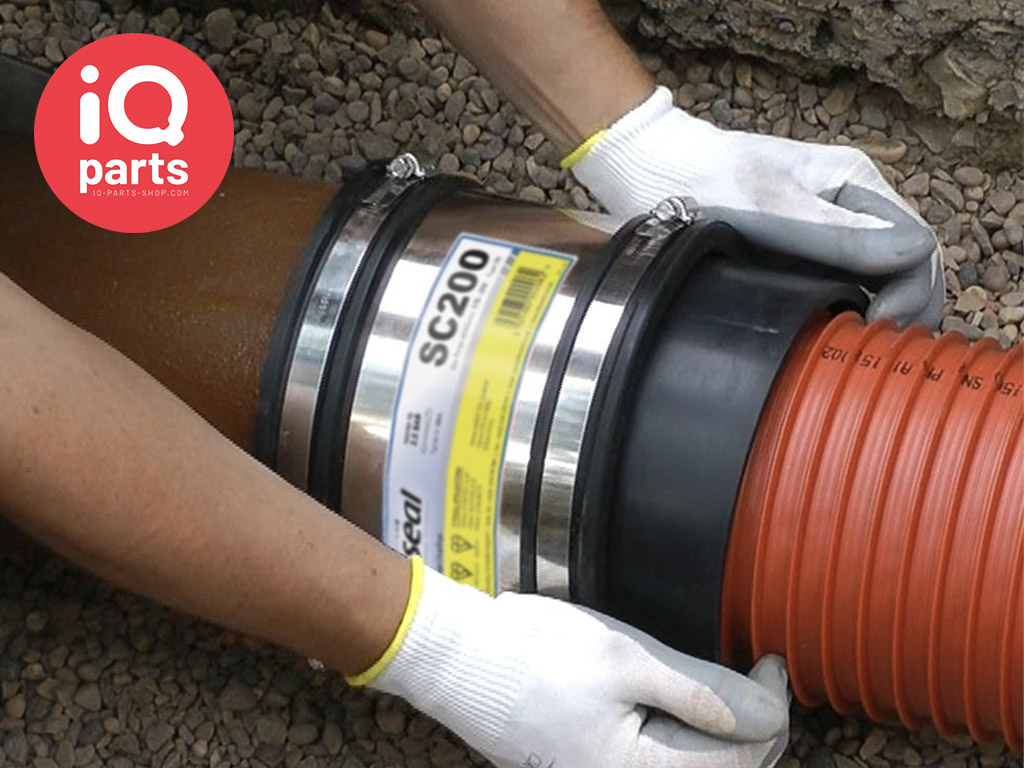

There are numerous application possibilities for installation, repair and maintenance of sewage pipes of all types for the SC couplings on its own or in combination with bushes.When used individually or combined with bushes, Flexseal Standard Couplings have many applications in the construction, repair and maintenance of pipe system:

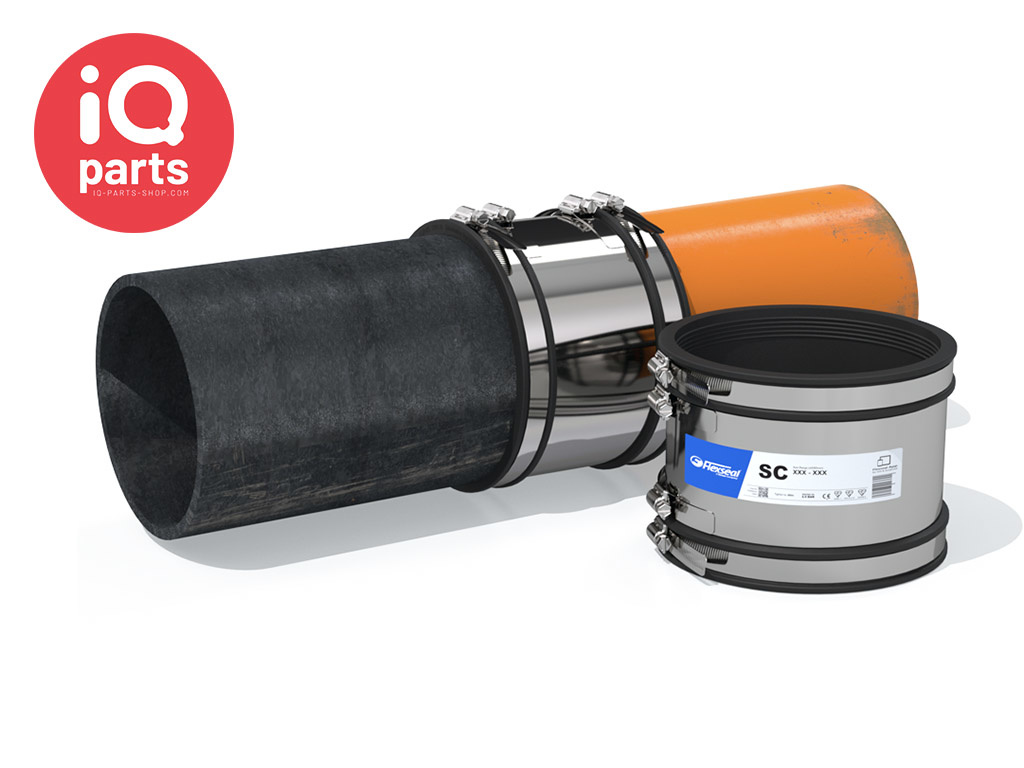

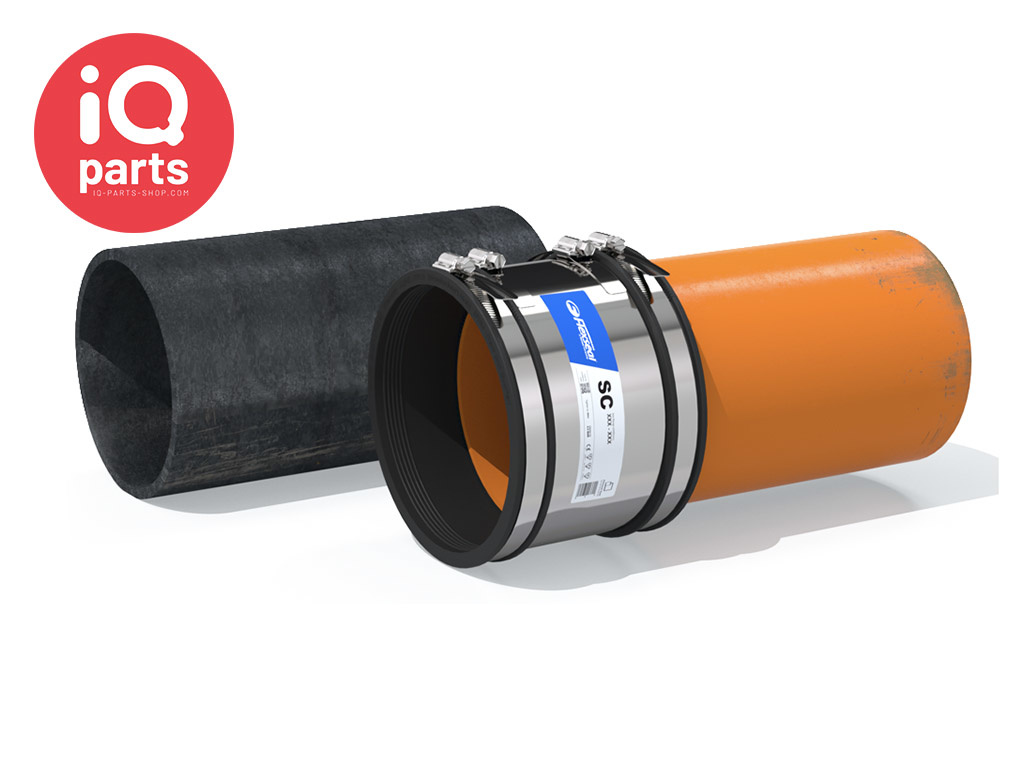

- As a joint for plain ended pipes
- Repair and maintenance of existing pipelines
- Connecting short and cut lengths of pipe
- etc.
For an OD difference > 12 mm it is necessary to use bushes!
Typ 2B for all pipes
Flexseal offers with the range of type 2B shear banded couplings a series of products that connect two pipes easily, safely and stably. The shear banded couplings have been specially developed for all types of wastewater pipes. They are suitable for use in buried and above-ground drainage systems outside and inside buildings. In addition, the shear band provides extra protection against shear loads.
Product benefits:
- For connecting wastewater pipes of all materials and manufacturers
- Withstands internal pressure of up to 2.5 bar
- Stainless steel shear band helps prevent pipe displacementLess excavation compared to replacing a whole length of pipe
- Approved to DIN EN 295-4, as well as DIN EN 16397
Material:
- Rubber: EPDM (DIN EN681-1. (oil and petrol resistant NBR on request)
- Clamps: All steel parts of the collar are always made of minimum V2A (1.4301) stainless steel (W4, AISI 304). V4A (-1.4404) on request (W5, AISI 316)
Characteristics:
- Sizes: 115 - 620 mm
- Pressure level: 2.5 bar / 36.25 PSI
- Temperature window: -50ºC to 150ºC
- Tightening torque: 6 NM to 13 NM (optional: integrated torque control)
- Standard / Approval: DIN EN16397-2, DIN EN 295-4
Product code:
SC65 - SC75 - SC95 - SC115 - SC120 - SC125 - SC137 - SC150 - SC165 - SC175 - SC185 - SC200 - SC215 - SC225 - SC250 - SC265 - SC275 - SC290 - SC310 - SC320 - SC335 - SC345 - SC360 - SC370 - SC385 - SC395 - SC410 - SC425 - SC430 - SC445 - SC450 - SC465 - SC470 - SC490 - SC510 - SC525 - SC540 - SC550 - SC560 - SC570 - SC580 - SC600 - SC620
