CPC - HFC17612 / HFCD17612 | Coupling Body | Polypropylene | Hose barb 9,5 mm (3/8")
Brand:
CPC
| Article number: | CPC-HFCD17612 |
| SKU: | HFCD17612 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information

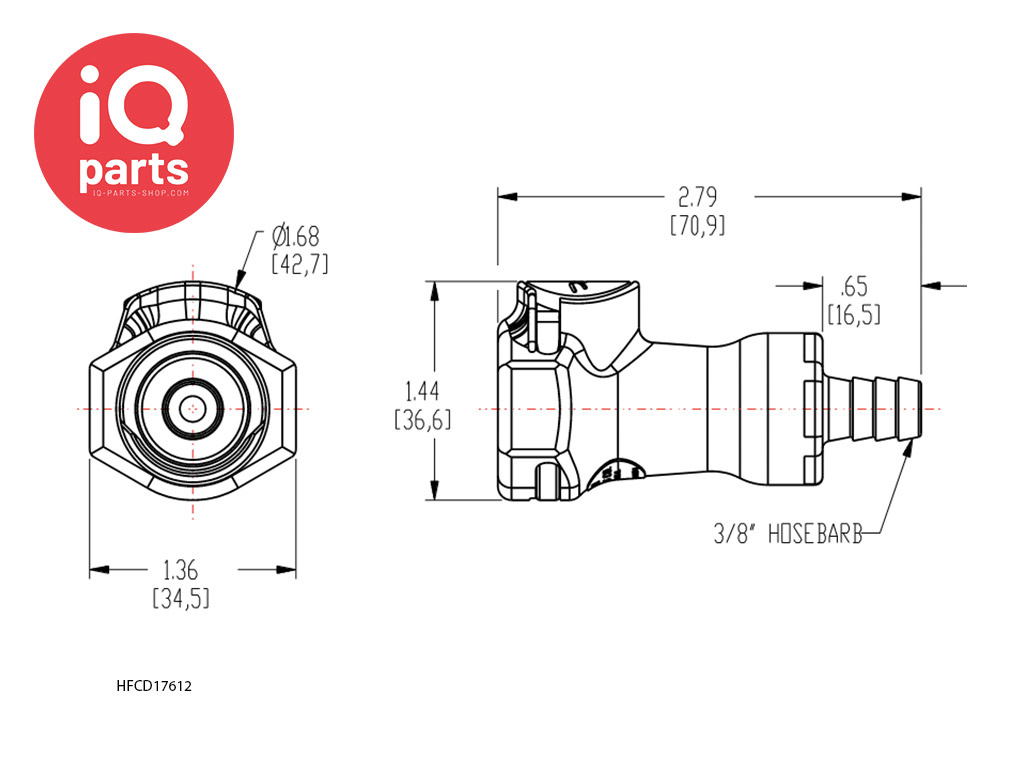

CPC - HFC17612 / HFCD17612 | Coupling Body | Polypropylene | Hose barb 9,5 mm (3/8")
An in-line coupling of CPC from the HFC12 series with a 9,5 mm hose barb. This quick coupling (female) ensures a leak-free seal and is made of POLYPROPYLENE. This coupling is available with a valve (HFCD17612) and without a valve (HFC17612). (Choose at the top right at "Make a choice:")
Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. HFC12 couplings are also available in NSF-listed versions.
Characteristics and benefits:
- High performance valve Higher; flow rates in a compact size
- Ergonomic design; Easy to grip, easy to use
- Polypropylene material; Chemically resistant and sterilizable with gamma radiation
- Compatibility; Can be combined with HFC35 and HFC57 series couplings
Possible areas of application:
- Chemicals for developing photos
- Battery filling systems
- Air mattress systems
- Sprinkler systems
- Recycling of antifreeze
- Heating and cooling systems
Materials:
- Main components and valve: Polypropylene
- Valve Spring and external sprins and pin: AISI 316 Stainless Steel (W5)
- 0-ring: EPDM
- Colour: Gray
Specifications:
- Working pressure: vacuum up to 4,2 bar (60 PSI)
- Operating Temperature: 0ºC to 71ºC (32ºF to 160ºF)
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Chemicals |
| Operating Pressure: | 4,2 bar Vacuum |
| Temperature range: | 0° C tot +71° C |
| Material: | Polypropylene |
| Size: | 3/8" NW |
| Connection: | In-line Coupling Body |
| Seal: | EPDM |
| Hose connection: | 9,5 mm (3/8") Inner diameter |
| Weight: | -- |
