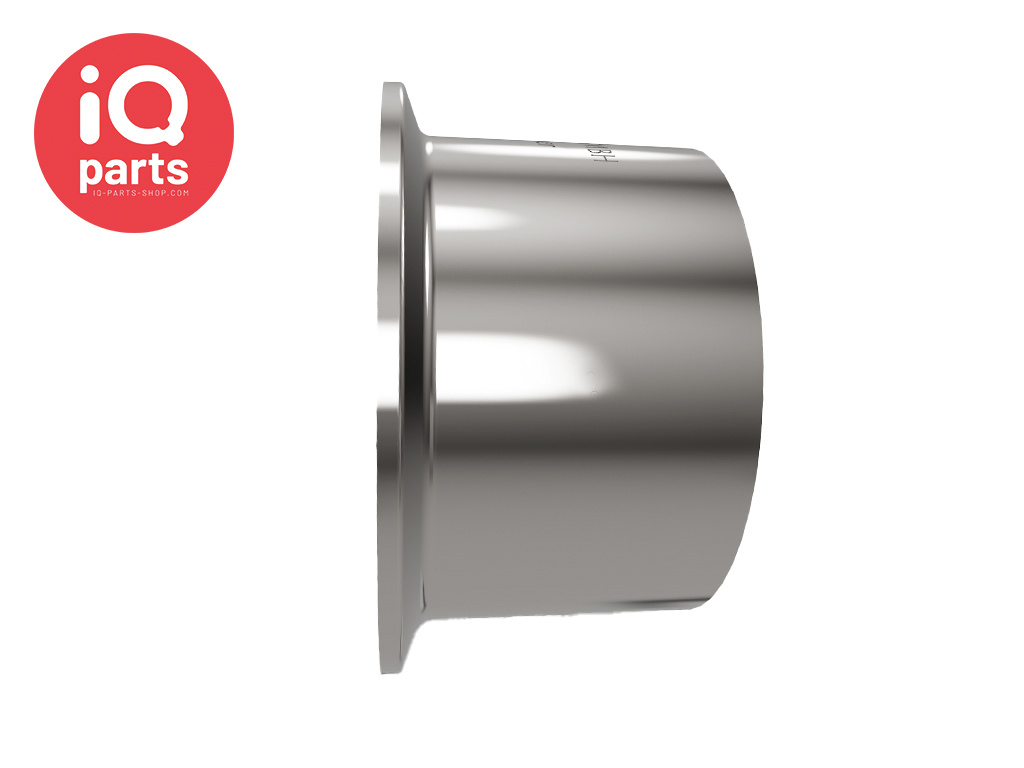

IQ-Parts Ferrules ASME BPE | AISI 316L

Ferrules ASME BPE Clamp connections are ideal for use in the food, pharmaceutical, chemical and biological industries. These clamp connections according to ASME BPE are also suitable in the field of engine and test bench construction.

Characteristics:

Material: Stainless steel AISI 316L (corresponding to 1.4404)
Flange sleeve in different versions: according to DIN32676 sched. A/B/C in version KK (Short) and KL (Long), ISO 2852, EN ISO 1127, special sizes, BS 4825, etc.
Standard interface: H3 hygiene class, inside <0.8 µm, outside <1.6 µm

In addition to the flange sleeves and blind covers according to ASME BPE, we also offer you the right seals in different sealing materials and cast brackets in different designs. See the related products for this.

Take a good look at the PDF of the desired clamp to order the right size clamp with the right ferrules!!

ASME BPE	Tube OD A	Tube ID B	Flange OD C	Groove D	Short (KK) E	Item-No.
3/8"	9,52	7,74	25,0	20,2	44,5	20399995
1/2"	12,70	9,40	25,0	20,2	44,5	20400001
3/4"	19,05	15,75	25,0	20,2	44,5	20400051
1"	25,40	22,10	50,5	43,5	44,5	20400101
1 1/2"	38,10	34,80	50,5	43,5	44,5	20400151
2"	50,80	47,50	64,0	56,5	57,2	20400201
2 1/2"	63,50	60,20	77,5	70,5	57,2	20400251
3"	76,20	72,90	91,0	83,5	57,2	20400301
4"	101,60	97,38	119,0	110,0	57,2	20400401
6"	152,40	146,86	167,0	156,5	76,2	20400601
