CPC - LCD10004V | Coupling Body | Chrome-plated brass | 1/4" NPT Pipe Thread
Brand:
CPC
| Article number: | CPC-LCD10004V |
| SKU: | LCD10004V |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information

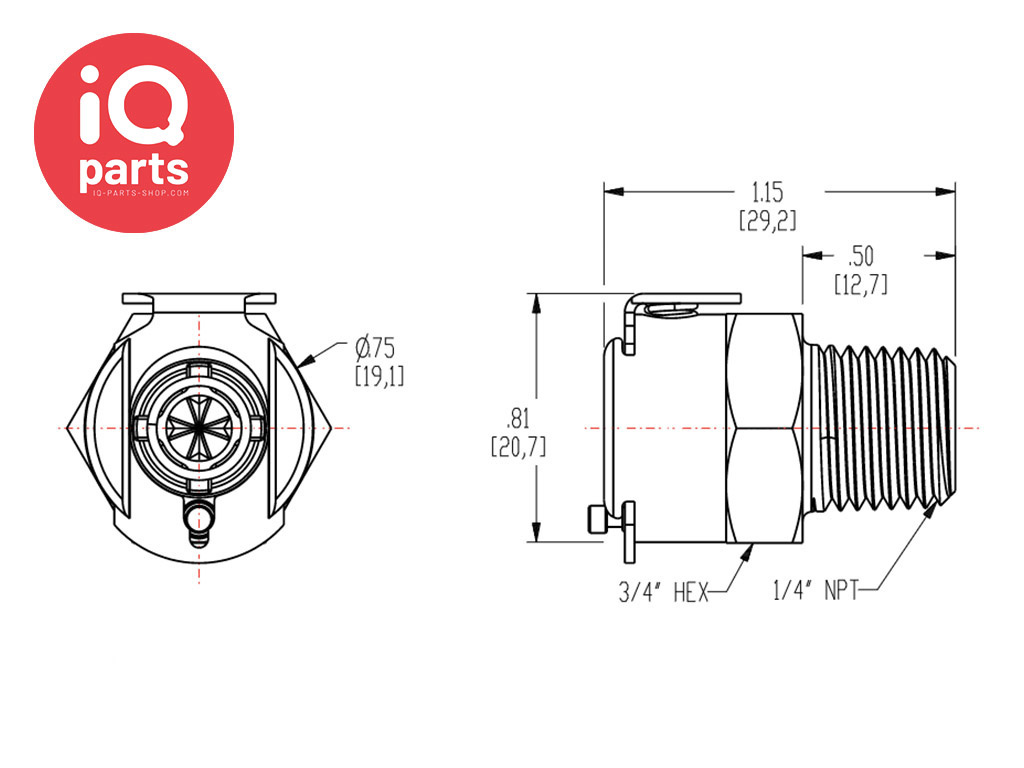

CPC - LCD10004V | Coupling Body | Chrome-plated brass | 1/4" NPT Pipe Thread
The LCD10004V coupling, with shut-off valve and a 1/4" NPT thread (conical, self-sealing) from CPC, is the tank side coupling for screwing in. The integrated VITON seal (FKM) makes the LCD10004V suitable for use in connection with fuel.
Suitable for the following and many other motorcycle models:
- Cagiva - Navigator
- Cagiva - Grand Canyon
- Ducatie - 998
- MV Agusta - R 1150 GS Adventure
Installation recommendation for the CPC quick couplings:
- Lubricate the coupling threads with Loctite 243
- Screw the coupling into the threads of the tank plate by hand
- Tighten ½ to ¾ turn with a wrench
Keep in mind that:
After mounting, 2-3 turns of thread of the coupling are still visible above the tank plate, this is normal as the coupling has a conical thread and the thread in the tank plate is cylindrical.
Wait a day for the Loctite to set before filling the tank.
General information about the LC series:
CPC’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects. These couplings offer the flexibility of multiple configurations and terminations to mate with both the PLC acetal and PLC12 polypropylene couplings. In addition, couplings are available that meet the requirements of the NSF standard.
For more technical information, see the PDF.- Material: Chrome-plated brass
- Available in various sizes: from 6.4 mm to 9.5 mm ID, also at an angle of 90º
- Available with clamping ring coupling, hose tail or male or female thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with panel mounting option
- O-rings: Viton (FKM)
- Vacuum up to 17.3 bar (250 PSI)
- Temperature range: -40ºC to 82ºC constant
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Petrol |
| Operating Pressure: | 17,3 bar Vacuum |
| Temperature range: | –40° C tot +82° C |
| Material: | Chrome-plated brass |
| Size: | 1/4" flow |
| Connection: | In-line coupling |
| Seal: | Viton (FKM) |
| Hose connection: | 1/4" NPT Pipe Thread |
| Weight: | -- |
