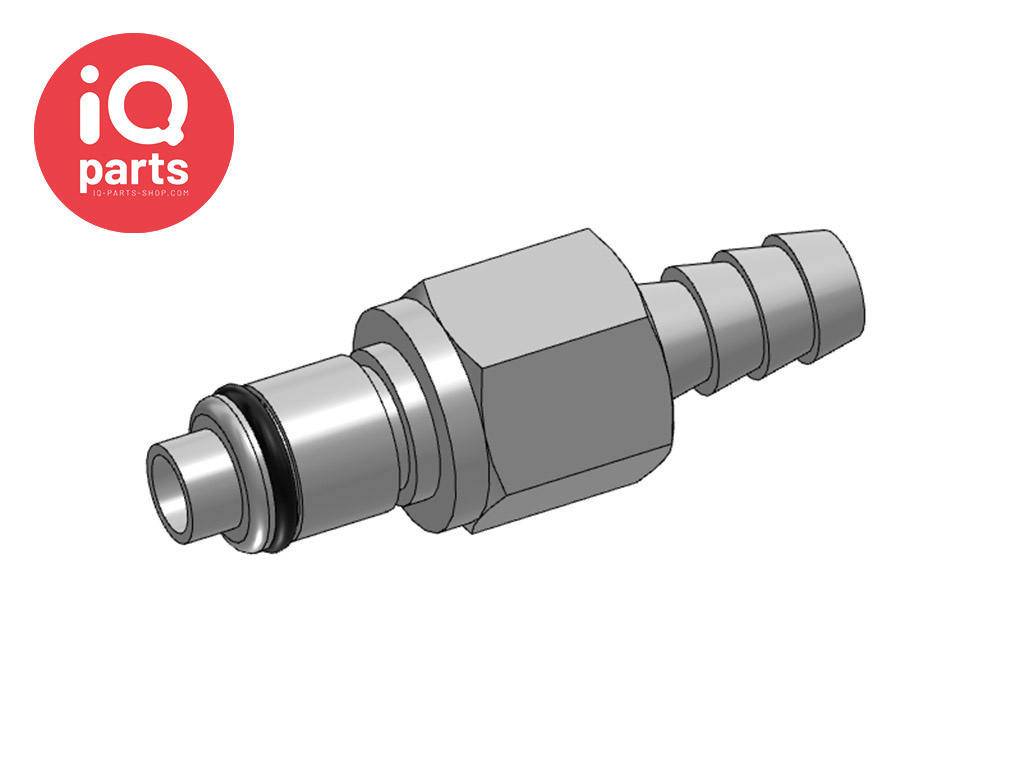

CPC - LCD22004V | Coupling Insert | Chrome-plated brass | Hose barb 6 - 7 mm
Brand:
CPC
| Article number: | CPC-LCD22004V |
| SKU: | LCD22004V |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information
CPC - LCD22004V | Coupling Insert | Chrome-plated brass | Hose barb 6 - 7 mm
The connector LCD22004V with shut-off valve and a hose connection for 6 to 7 mm fuel hose. The LCD22004V has a VITON seal (FKM) and is therefore fuel resistant.
Suitable for the following and many other motorcycle models:
- Aprilia
General information about the LC series:
CPC’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects. These couplings offer the flexibility of multiple configurations and terminations to mate with both the PLC acetal and PLC12 polypropylene couplings. In addition, couplings are available that meet the requirements of the NSF standard.
For more technical information, see the PDF.- Material: Chrome-plated brass
- Available in various sizes: from 6.4 mm to 9.5 mm ID, also at an angle of 90º
- Available with clamping ring coupling, hose tail or male or female thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with panel mounting option
- O-rings: Viton, (FKM)
- Vacuum up to 17.3 bar (250 PSI)
- Temperature range: -40ºC to 82ºC constant
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Petrol |
| Operating Pressure: | 17,3 bar Vacuum |
| Temperature range: | –40° C tot +82° C |
| Material: | Chrome-plated brass |
| Size: | 1/4" flow |
| Connection: | In-line hose barb |
| Seal: | Viton (FKM) |
| Hose connection: | 6 - 7 mm Inner diameter |
| Weight: | -- |
