CPC - LM21 | FitQuik male Luer | Polypropylene | 1,6 mm (1/16") Hose barb
Brand:
CPC
| Article number: | CPC-LM21 |
| SKU: | LM21 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information

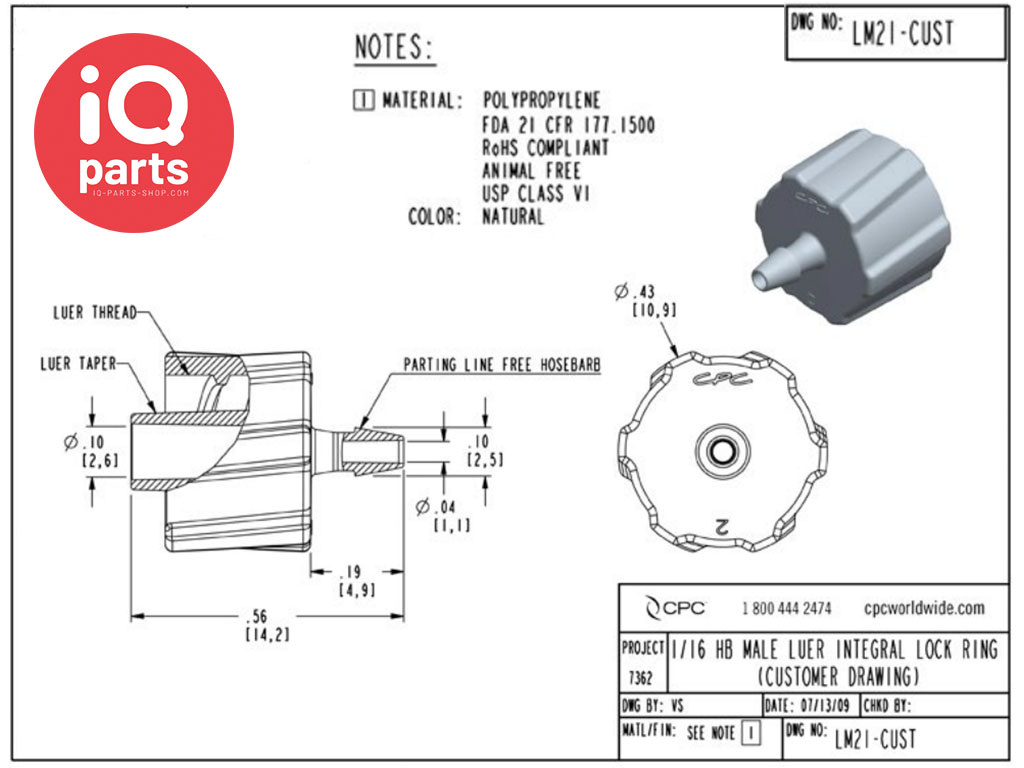

CPC - LM21 | FitQuik male Luer | Polypropylene | 1,6 mm (1/16") Hose barb
This CPC male Luer FitQuik® fitting has a 1.6 mm (1/16”) hose barb, is made of Polypropylene and has an integrated locking ring.
CPC's Luer FitQuik® fitting and connectors fit products that comply with ISO standards 594-1 and 594-2.
Areas of application of the FitQuik series:
- Medical devices
- Analytical instruments
- Air powered equipment
The FitQuik® Luer range is larger than what we offer in our shop.
Available:
Various fittings and connectors:
- Male (Fitting)
- Female (Connector)
Diverse materials:
- Polypropylene
- White Nylon
- Black Nylon
- Polycarbonate
Various hose connection sizes (ID):
- 1/16”
- 3/32”
- 1/8”
- 5/32”
- 3/16”
Panel mounting for both fittings and connectors.
Available product codes:
Male Luers:
LM21, LM2130, LM2131, LM2191, LM31, LM3130, LM3131, LM3191, LM41, LM4130, LM4131, LM4191, LM51, LM5130, LM2131, LM2191, LM61, LM6130, LM6131 ,LM6191
Female Luers:
LF21, LF2130, LF2131, LF2191, LF31, LF3130, LF3131, LF3191, LF41, LF4130, LF4131, LF4191, LF51, LF5130, LF2131, LF2191, LF61, LF6130, LF6131 , LF6191
Panel Mount Male Luer:
PMLM21, PMLM2130, PMLM2131, PMLM31, PMLM3130, PMLM3131, PMLM41, PMLM4130, PMLM4131, PMNUTSST, PMNUT30
Panel Mount Female Luer:
PMLF21, PMLF2130, PMLF2131, PMLF31, PMLF3130, PMLF3131, PMLF41, PMLF4130, PMLF4131, PMNUTSST, PMNUT30
You will find more information about the options in the PDF.
Send an email to our sales department to express your wishes.
Specifications
| Medium: | Liquid / Air / Chemicals |
| Operating Pressure: | -- |
| Temperature range: | -- |
| Material: | Polypropylene |
| Size: | -- |
| Connection: | Male Luer |
| Seal: | -- |
| Hose connection: | 1,6 mm (1/16") Inner diameter |
| Weight: | -- |
