CPC - LQ2D3102BLU / LQ2D3102RED | Coupling Body | Chrome-plated brass | 1/8" G thread (BSPP)
Brand:
CPC
| Article number: | CPC-LQ2D3102RED |
| SKU: | LQ2D3102RED |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information
CPC - LQ2D3102BLU / LQ2D3102RED | Coupling Body | Chrome-plated brass | 1/8" G thread (BSPP)

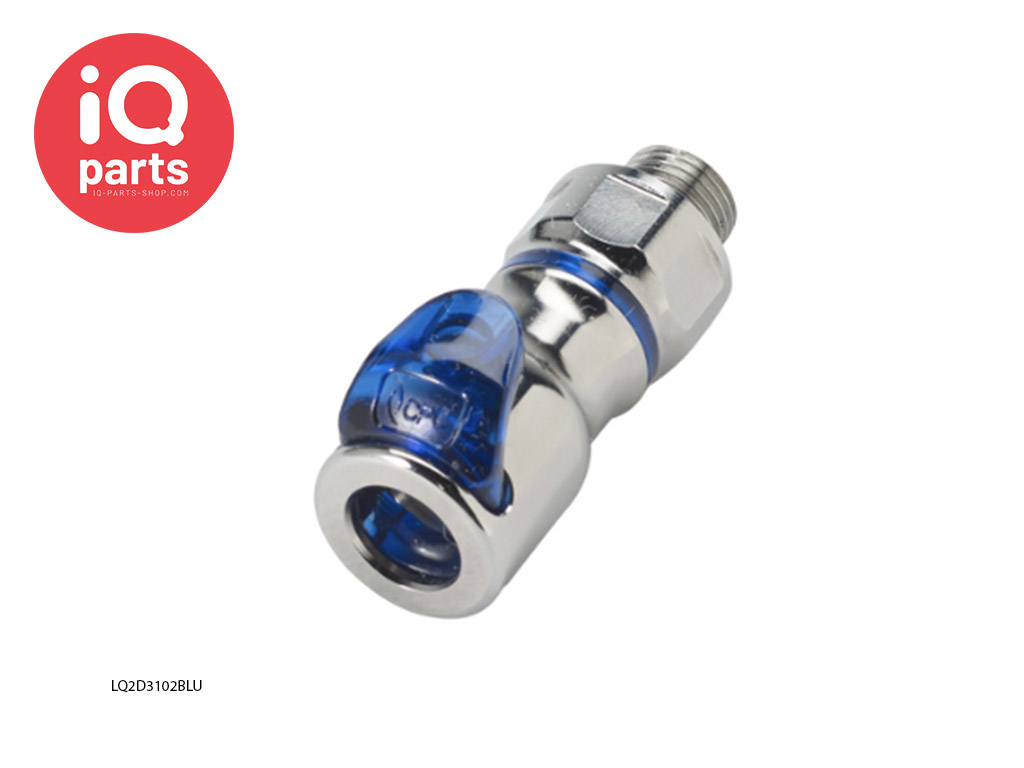

A In-line coupling body from CPC from the LQ2 series with a 1/8" G thread (BSPP). This coupling body (female) ensures a leak-free seal, partly provided by an EPDM sealing ring. This coupling is available in both Red/hot (LQ2D3102RED) and Blue/cold (LQ2D3102BLU) color coding. (Choose at the top right at "Make a choice:")
This coupling is supplied as standard with an EPDM sealing ring, but are also available with an FKM (Viton) O-ring.
Features of the couplings from the LQ2 series:
- Brass material
- Chrome Finish
- Color coding; Instant visual identification of the cooling lines
- Non-spill design; Disconnecting under pressure with no spill
- Extra protection against leaks for a extended period of time
- High flow capacity at low pressure; cost-effective cooling system
- Choice of EPDM or FKM (Viton) O-rings, depending on the application
- Ergonomic design; Easy one-handed operation with audible closing
- Small design; dimensions suit electronics in small spaces
-
Available with screw thread and hose tail
Possible applications:
- Server cooling
- Liquid cooling
- Thermal management
- Cooling systems
-
Equipment Construction
General information about the LQ2 series:
The Everis™ LQ2 Series with 1/8” flow is designed specifically for liquid cooling applications. With a small form factor for tight spaces, Everis LQ2 connectors offer a high-flow capacity to optimize system performance while providing ultra-reliable, dripless connections and disconnections to protect valuable electronics. Everis LQ2 fittings use patent pending valve technology that eliminates drips and are designed for long-term use. EPDM and FKM seals are standard options for compatibility with glycol/water or dielectric coolants.
- Material: Chrome Plated Brass
- Valve and release button: Polysulfone
- Available with hose tail or male thread 1/4" SAE-4, G1/8"
- Stainless steel valve spring
- O-rings: EPDM, FKM (Viton) optional
- Working pressure: vacuum up to 13.8 bar (200 PSI)
- Operating temperature: -17ºC to 115ºC (0ºF to 240ºF)
- Droplet Formation: <0.015 cc at ~ 0 bar and < 0.063 cc at ~ 13.8 bar per disconnect
- Flow capacity: CV ~ 0.37 max
- Lubricant: Krytox® PFPE (chemically neutral)
As of the end of Q3 2024, CPC is making a minor change regarding this product:
The plating of this product is being changed from a Nickel-Chrome to an Electroless Nickel-plating.
This provides the following benefits:
- Improved coverage
- Improved corrosion resistance
- Better wear resistance
- Does not affect the form, fit or function of the coupling
- No changes to the part number or pricing
The appearance will be slightly less shiny and more nickel-colored.
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid Cooling |
| Operating Pressure: | 13,8 bar Vacuum |
| Temperature range: | –17° C tot +115° C |
| Material: | Chrome-plated brass |
| Size: | 1/8" flow |
| Connection: | In-line coupling |
| Seal: | EPDM |
| Hose connection: | 1/8" G thread (BSPP) |
| Weight: | -- |
