CPC - LQ4D10004BLU / LQ4D10004RED | Coupling Body | Chrome-plated brass | 1/4" NPT male thread
Brand:
CPC
| Article number: | CPC-LQ4D10004BLU |
| SKU: | LQ4D10004BLU |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information
CPC - LQ4D10004BLU / LQ4D10004RED | Coupling Body | Chrome-plated brass | 1/4" NPT male thread

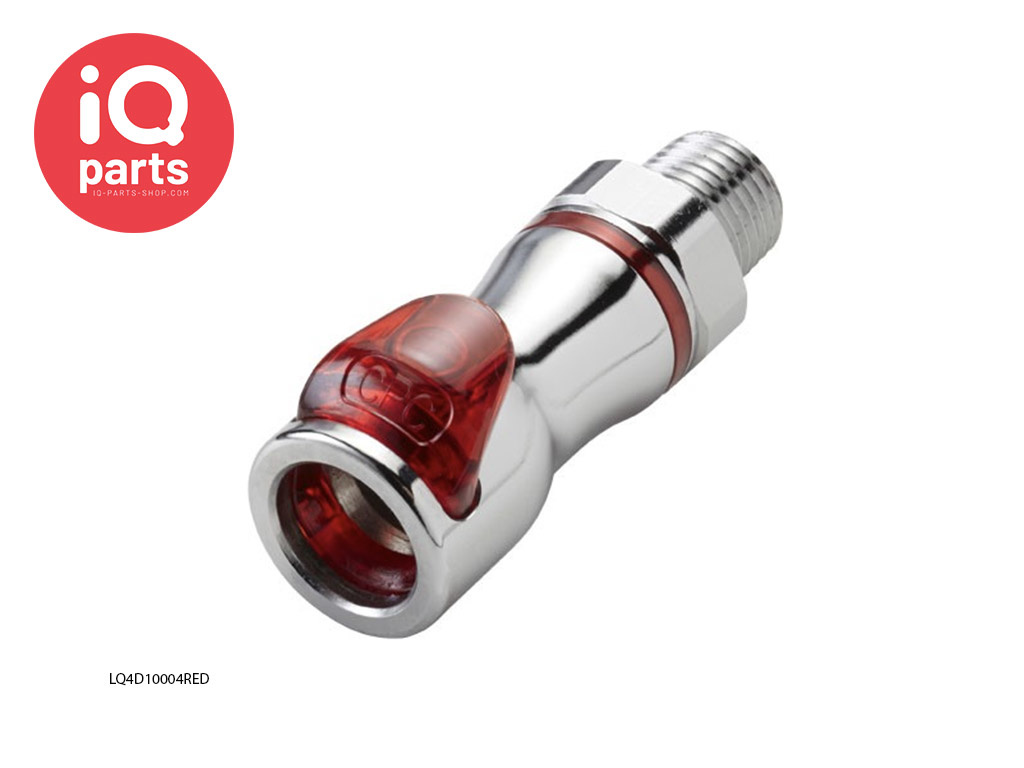

A In-line coupling body from CPC from the LQ4 series with a 1/4" NPT male thread. This coupling body (female) ensures a leak-free seal, partly provided by an EPDM sealing ring. This coupling is available in both Red/warm (LQ4D10004RED) and Blue/cool (LQ4D10004BLU) color coding. (Choose at the top right at "Make a choice:")
This coupling is supplied as standard with an EPDM sealing ring, but are also available with an FKM (Viton) O-ring.
Features of the couplings from the LQ4 series:
- Brass material
- Chrome Finish
- Color coding; Instant visual identification of the cooling lines
- Non-spill design; Disconnecting under pressure with no spill
- Extra protection against leaks for a extended period of time
- High flow capacity at low pressure; cost-effective cooling system
- Choice of EPDM or FKM (Viton) O-rings, depending on the application
- Ergonomic design; Easy one-handed operation with audible closing
- Small design; dimensions suit electronics in small spaces
-
Available with screw thread and hose tail
Possible applications:
- Powerful super computers
- Data centers
- Medical technology
- Cooling systems
- Medical equipment
General information about the LQ4 series:
The Everis™ LQ4 Series quick disconnects with ¼” flow offer a relative high-flow capacity to optimize system performance while providing ultra-reliable, dripless connections and disconnections to protect valuable electronics. Everis LQ4 fittings are designed for long-term use and feature patent pending valve technology that eliminates drips. EPDM and FKM seals are standard options for compatibility with glycol/water or dielectric coolants. For other material and termination options please contact our sales department.
- Material: Chrome Plated Brass
- Valve and release button: Polysulfone
- Available with hose tail, male thread 1/4" SAE-4, 3/8" SAE-6, 1/4" en 3/8" NPT or PTF
- Stainless steel valve spring
- O-rings: EPDM, FKM (Viton) optional
- Working pressure: vacuum up to 8,3 bar (120 PSI)
- Operating temperature: -17ºC to 115ºC (0ºF to 240ºF)
- Droplet Formation: <0.025 cc at ~ 0 bar and < 0.055 cc at ~ 8,3 bar per disconnect
- Flow capacity: 3.0 gal/min, 11,3 l/min
- Lubricant: Krytox® PFPE (chemically neutral)
As of the end of Q3 2024, CPC is making a minor change regarding this product:
The plating of this product is being changed from a Nickel-Chrome to an Electroless Nickel-plating.
This provides the following benefits:
- Improved coverage
- Improved corrosion resistance
- Better wear resistance
- Does not affect the form, fit or function of the coupling
- No changes to the part number or pricing
The appearance will be slightly less shiny and more nickel-colored.
Specifications
| Medium: | Liquid Cooling |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | –17° C tot +115° C |
| Material: | Chrome-plated brass |
| Size: | 1/4" flow |
| Connection: | In-line coupling |
| Seal: | EPDM |
| Hose connection: | 1/4" NPT Pipe Thread |
| Weight: | -- |
