CPC - LQ6D47008BLU / LQ6D47008RED | Coupling Insert | Chrome-plated brass | 1/2" G Male thread (BSPP)
Brand:
CPC
| Article number: | CPC-LQ6D47008BLU |
| SKU: | LQ6D47008BLU |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
Information
CPC - LQ6D47008BLU / LQ6D47008RED | Coupling Insert | Chrome-plated brass | 1/2" G Male thread (BSPP)

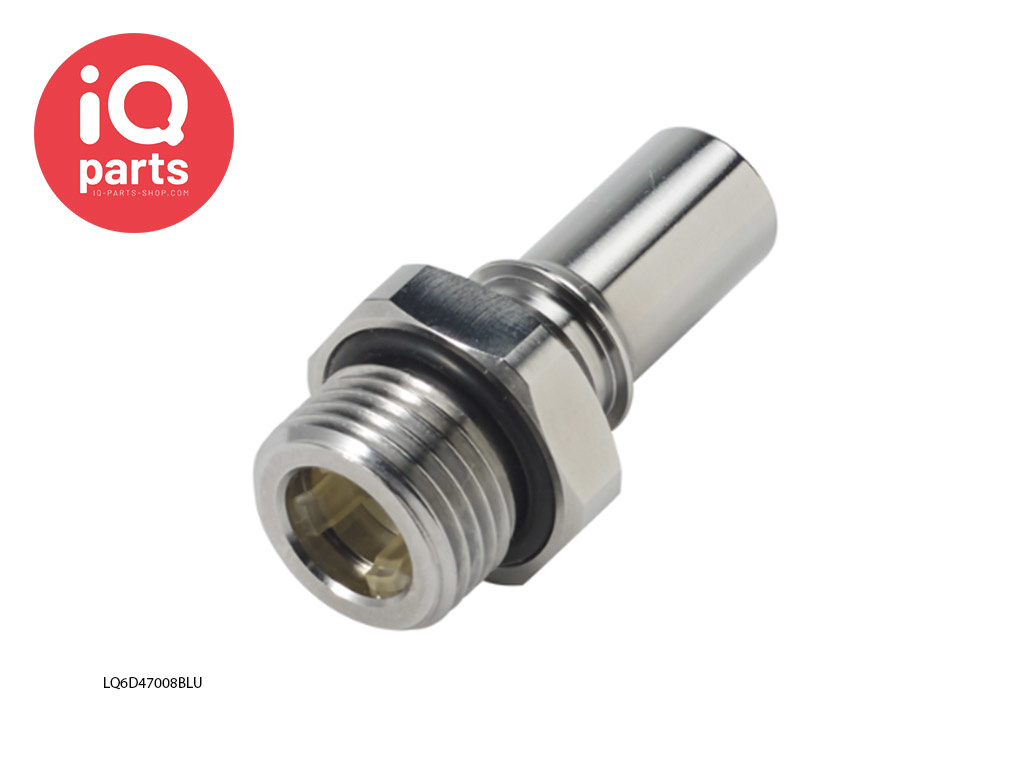

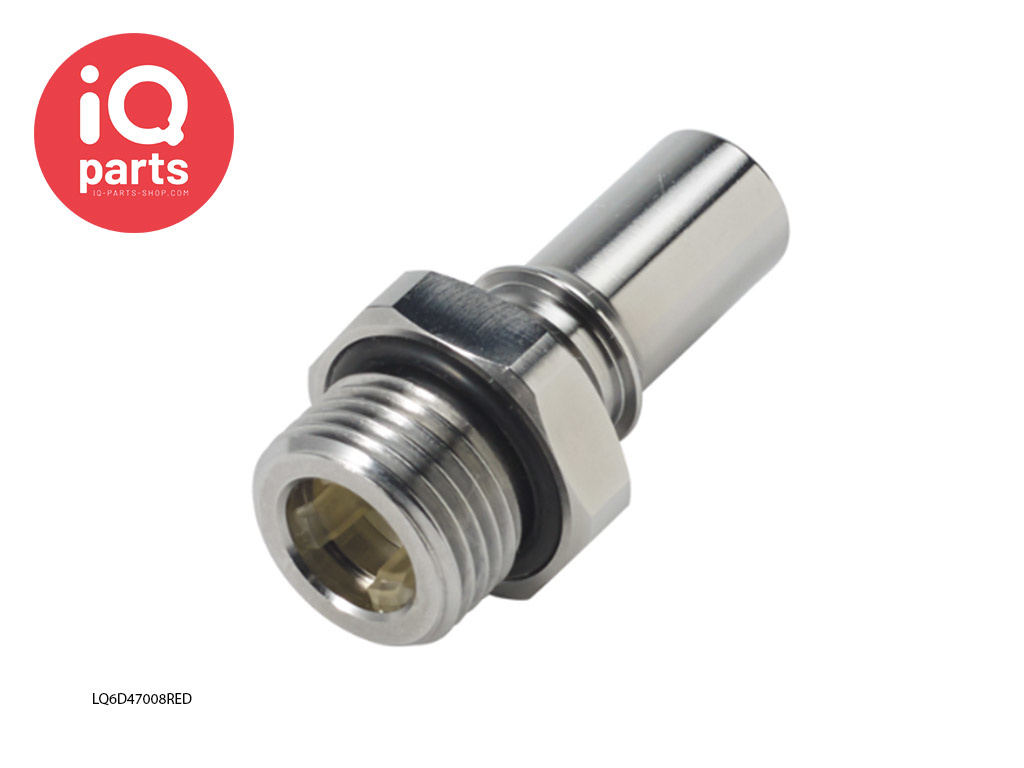

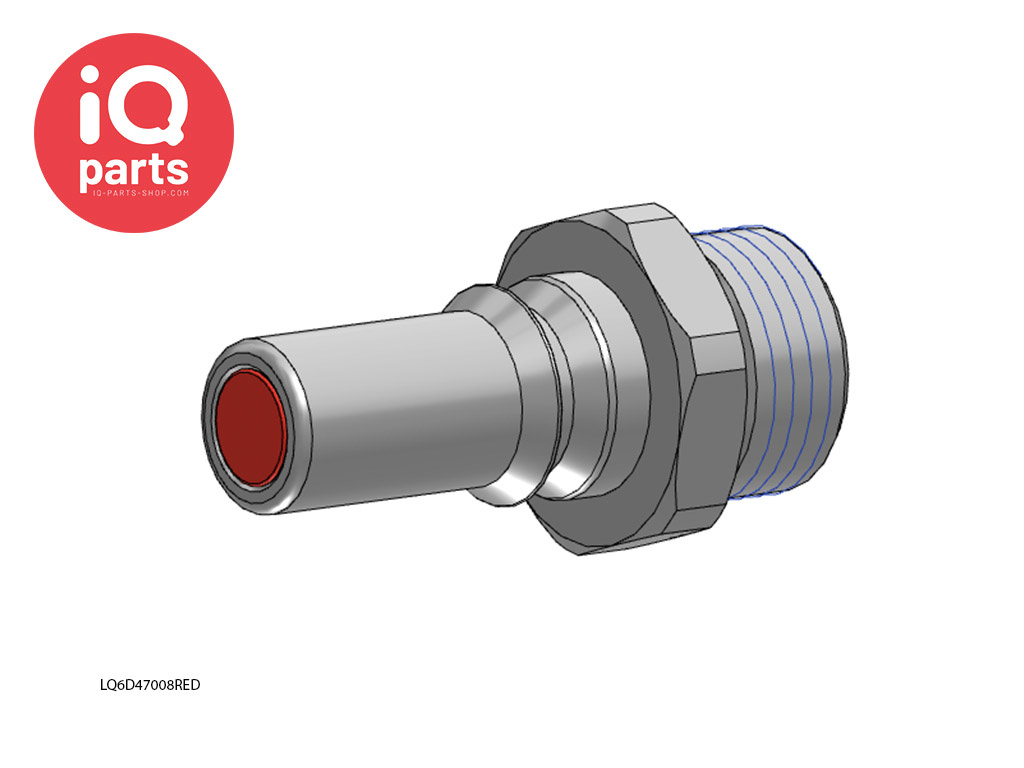

A In-line coupling Insert from CPC from the LQ6 series with a 1/2" G Male thread (BSPP). This coupling Insert (male) ensures a leak-free seal, partly provided by an EPDM sealing ring. This coupling is available in both Red/warm (LQ6D47008RED) and Blue/cool (LQ6D47008BLU) color coding. (Choose at the top right at "Make a choice:")
This coupling is supplied as standard with an EPDM sealing ring, but are also available with an FKM (Viton) O-ring.
Features of the couplings from the LQ6 series:
- Brass material
- Chrome Finish
- Color coding; Instant visual identification of the cooling lines
- Non-spill design; Disconnecting under pressure with no spill
- Extra protection against leaks for a extended period of time
- High flow capacity at low pressure; cost-effective cooling system
- Choice of EPDM or FKM (Viton) O-rings, depending on the application
- Ergonomic design; Easy one-handed operation with audible closing
- Small design; dimensions suit electronics in small spaces
-
Available with screw thread and hose tail
- Rotation allows movement; Eliminates tube kinking
Possible applications:
- Powerful super computers
- Data centers
- Medical technology
- Cooling systems
- Medical equipment
General information about the LQ6 series:
The Everis LQ6 Series fittings feature 3/8” flow for liquid cooling of electronics applications. Everis™ LQ6 connectors offer a high-flow capacity to optimize system performance. They provide ultra-reliable, dripless connections and disconnections to protect valuable equipment. Everis LQ6 fittings use patent pending valve technology that eliminates drips and are designed for long-term use. FKM and EPDM seals are standard options for compatibility with dielectric or glycol/water coolants. For other material and termination options contact our sales department.
- Material: Chrome Plated Brass
- Valve and release button: Polysulfone
- Available with hose tail, male thread 1/2" SAE-8, 3/8" SAE-6, 3/8" G/BSPP, 3/8" NPT or PTF
- Stainless steel valve spring
- O-rings: EPDM, FKM (Viton) optional
- Working pressure: vacuum up to 8,3 bar (120 PSI)
- Operating temperature: -17ºC to 115ºC (0ºF to 240ºF)
- Droplet Formation: <0.05 cc at ~ 0 bar and < 0.125 cc at ~ 8,3 bar per disconnect
- Flow capacity: 4.0 gal/min, 15,1 l/min
- Lubricant: Krytox® PFPE (chemically neutral)
As of the end of Q4 2024, CPC is making a minor change regarding this product:
The plating of this product is being changed from a Nickel-Chrome to an Electroless Nickel-plating.
This provides the following benefits:
- Improved coverage
- Improved corrosion resistance
- Better wear resistance
- Does not affect the form, fit or function of the coupling
- No changes to the part number or pricing
The appearance will be slightly less shiny and more nickel-colored.
Specifications
| Medium: | Liquid Cooling |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | –17° C tot +115° C |
| Material: | Chrome-plated brass |
| Size: | 3/8" flow |
| Connection: | In-line Coupling Insert |
| Seal: | EPDM |
| Hose connection: | 1/2" G male thread (BSPP) |
| Weight: | -- |
