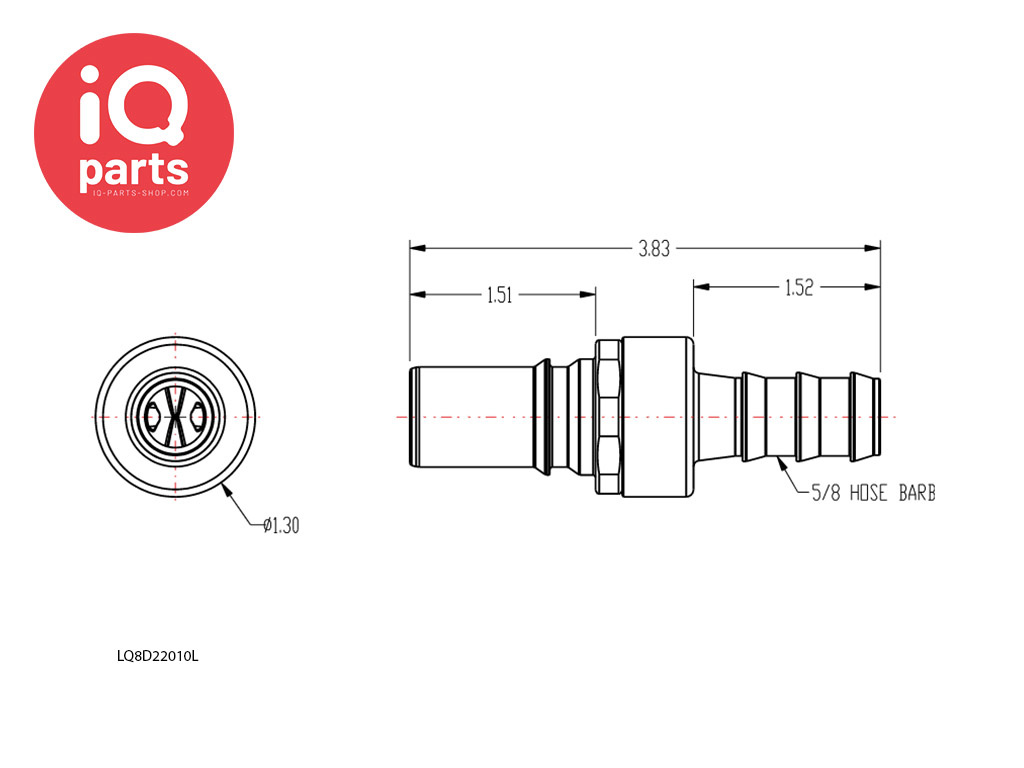

CPC - LQ8D22010L | Coupling Insert | Chrome-plated brass | Hose barb 15,9 mm (5/8")
Brand:
CPC
| Article number: | CPC-LQ8D22010L |
| SKU: | LQ8D22010L |
- 2 year warranty
- Delivery time: 8 - 12 weeks
- Customer service 09:00 - 17:00
Information
CPC - LQ8D22010L | Coupling Insert | Chrome-plated brass | Hose barb 15,9 mm (5/8")
A In-line coupling Insert from CPC from the LQ8 series with a 15,9 mm hose barb. This coupling Insert (male) ensures a leak-free seal, partly provided by an EPDM sealing ring.
Features of the couplings from the LQ8 series:
- Brass material
- Chrome Finish
- Non-spill design; Disconnecting under pressure with no spill
- Extra protection against leaks for a extended period of time
- High flow capacity at low pressure; cost-effective cooling system
- EPDM O-ring
- Ergonomic design; Easy one-handed operation with audible closing
- Small design; dimensions suit electronics in small spaces
-
Available with screw thread and hose tail
Possible applications:
- Server Cooling
- Cooling Liquid
- Thermal Management
- Cooling systems
- Equipment building
General information about the LQ8 series:
Everis™ LQ8 Series feature 1/2” flow for liquid cooling of electronics applications. Specifically designed for thermal management applications, Everis LQ8 connectors offer a high-flow capacity to optimize liquid cooling system performance. They provide ultra-reliable, dripless connections and disconnections for ease of use and peace of mind given proximity to sensitive or valuable equipment components. LQ8 quick disconnects (QDs) use patent pending valve technology that eliminates drips and are designed for long-term use. EPDM seals are a standard option for compatibility with glycol/water coolants.
- Material: Chrome Plated Brass
- Valve and release button: Polyphenylsulfone
- Available with hose tail, male thread 3/4" SAE-1, 3/4" G
- Stainless steel valve spring
- O-rings: EPDM
- Working pressure: vacuum up to 8,3 bar (120 PSI)
- Operating temperature: -17ºC to 115ºC (0ºF to 240ºF)
- Droplet Formation: <0.02 cc at ~ 0 bar and < 0.07 cc at ~ 4,1 bar per disconnect
As of the end of Q4 2024, CPC is making a minor change regarding this product:
The plating of this product is being changed from a Nickel-Chrome to an Electroless Nickel-plating.
This provides the following benefits:
- Improved coverage
- Improved corrosion resistance
- Better wear resistance
- Does not affect the form, fit or function of the coupling
- No changes to the part number or pricing
The appearance will be slightly less shiny and more nickel-colored.
Specifications
| Medium: | Liquid Cooling |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | –17° C tot +115° C |
| Material: | Chrome-plated brass |
| Size: | 1/2" flow |
| Connection: | In-line Coupling Insert |
| Seal: | EPDM |
| Hose connection: | 15,9 mm (5/8") Inner diameter |
| Weight: | -- |
