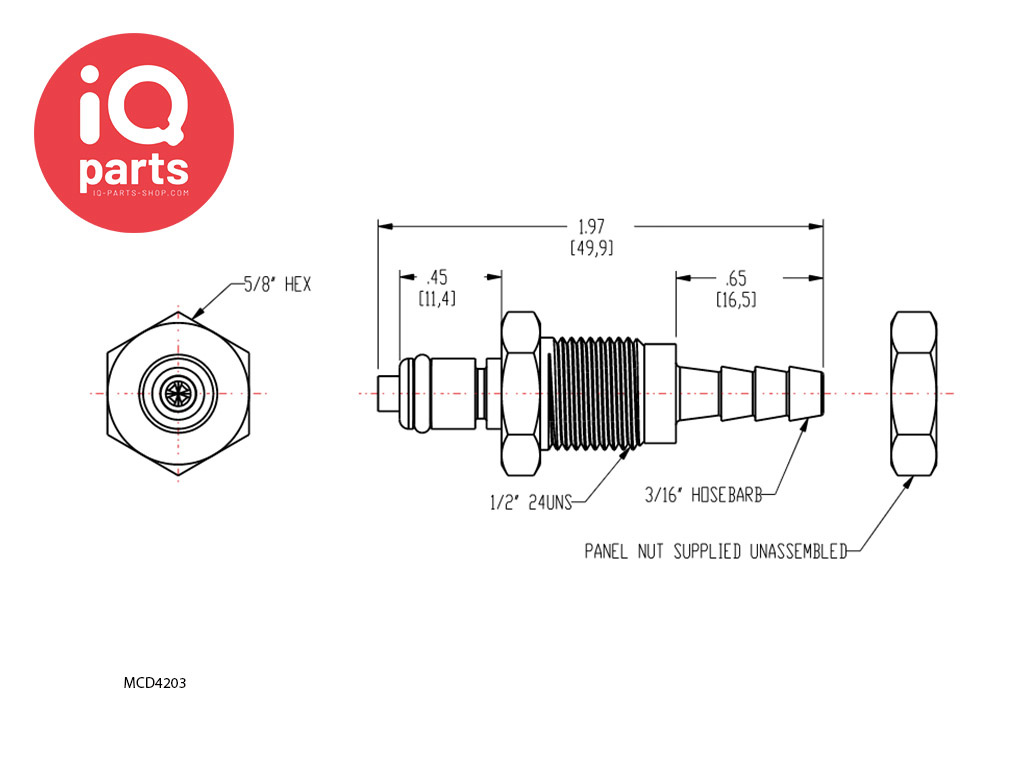

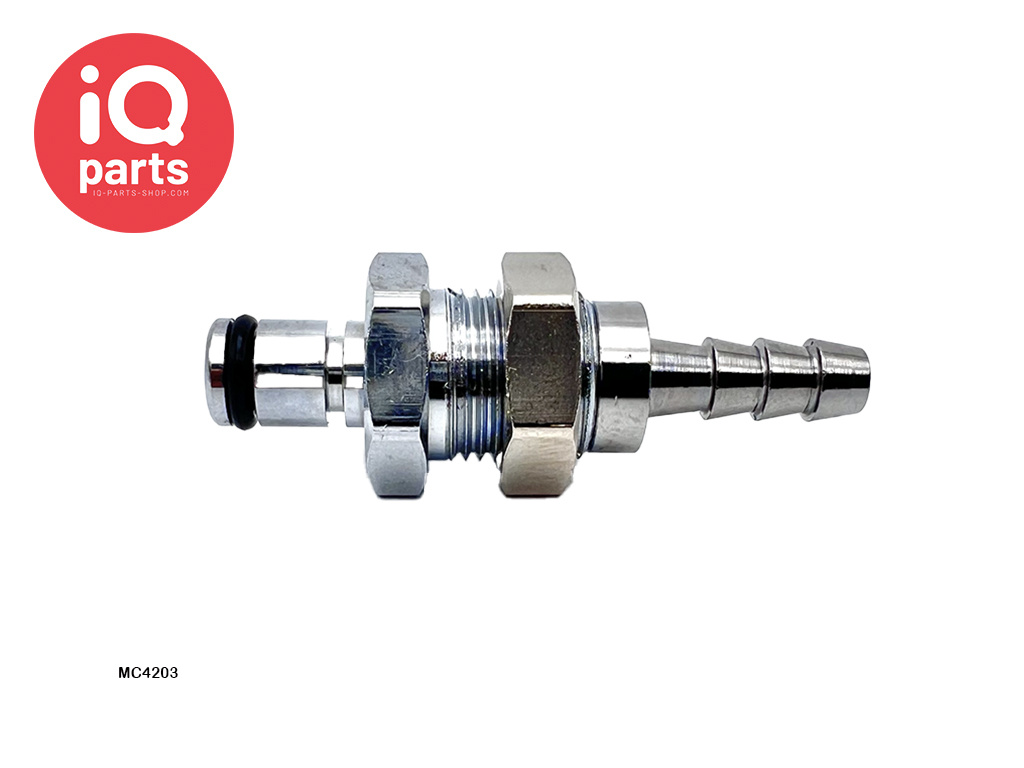

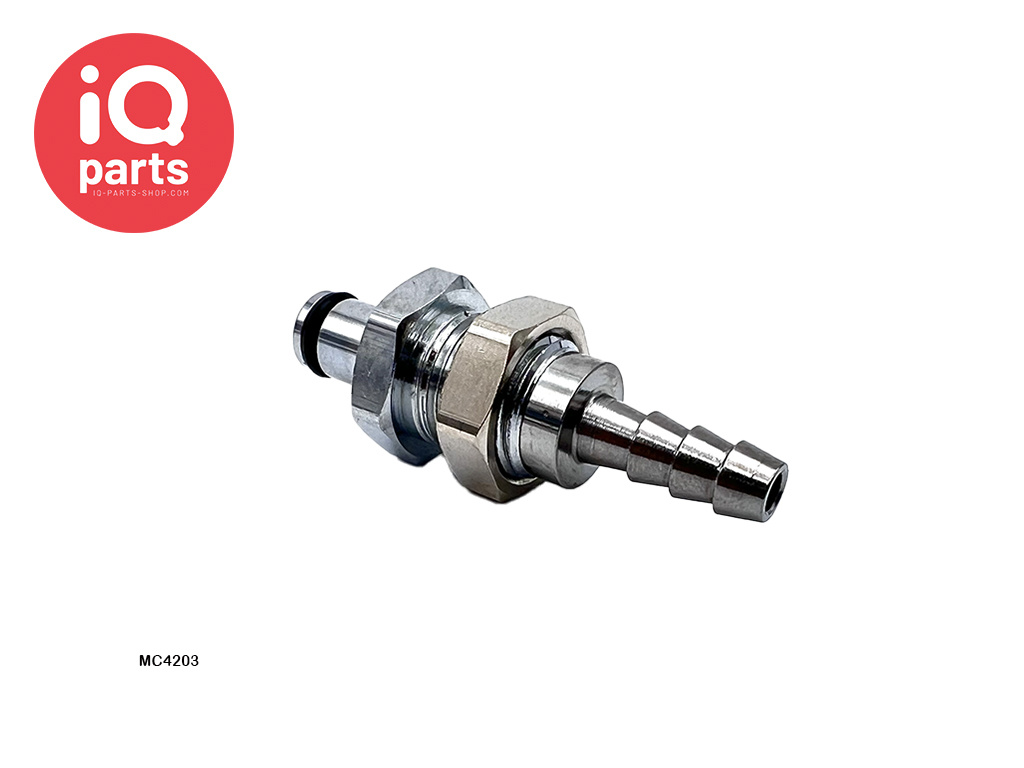

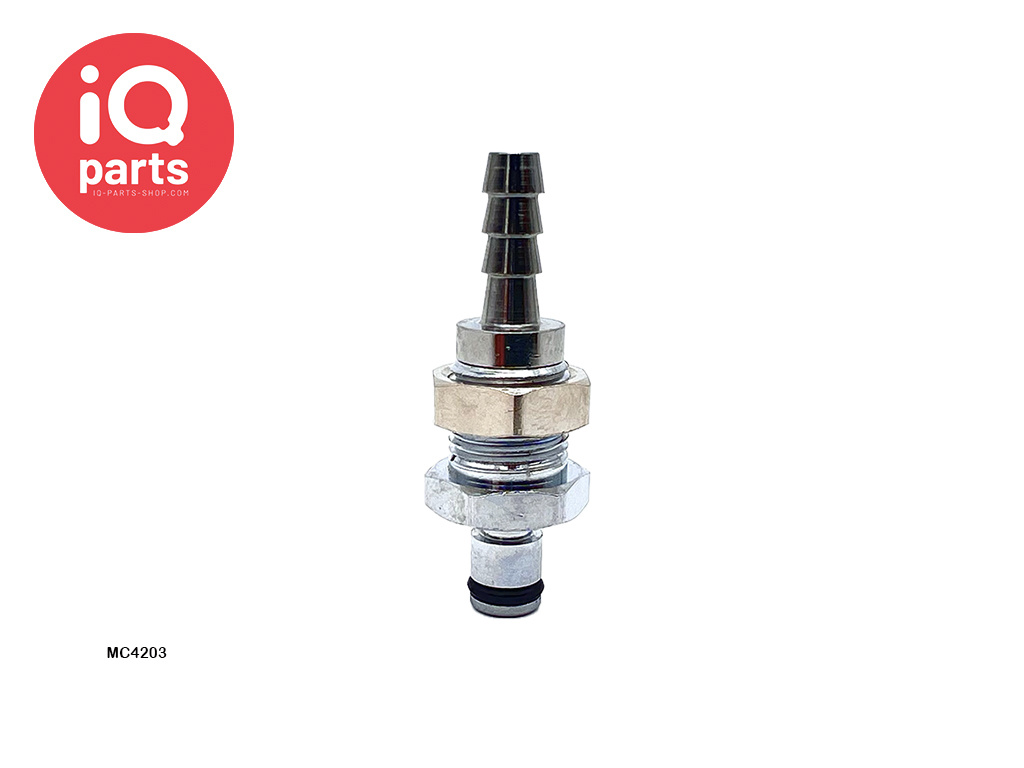

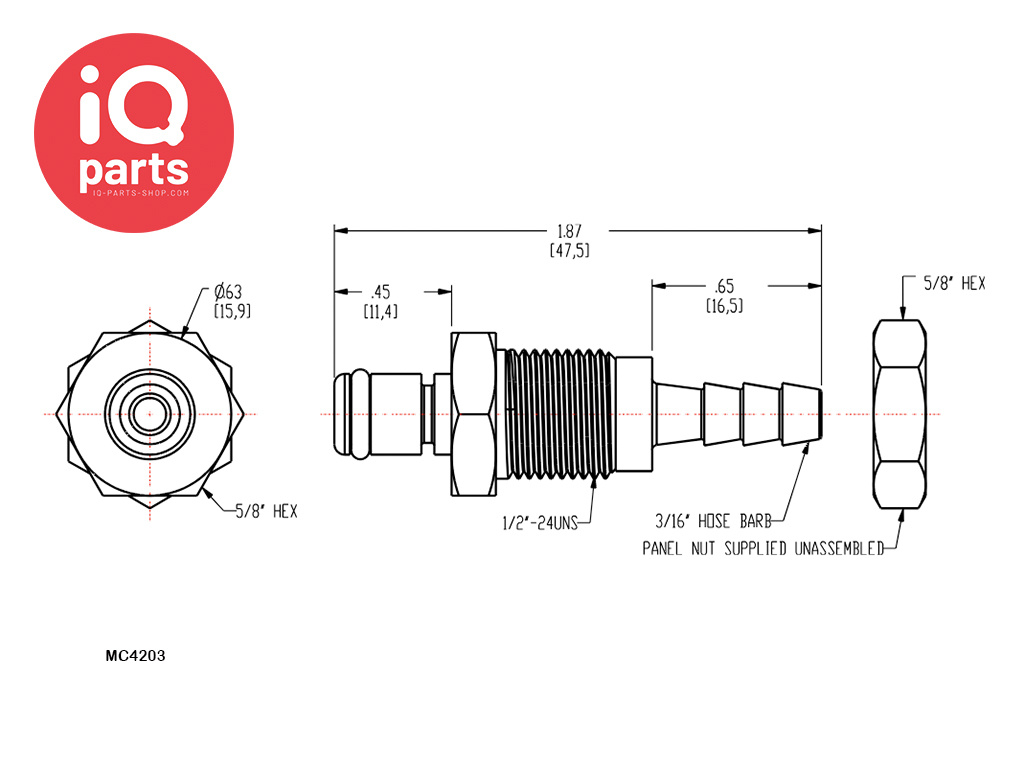

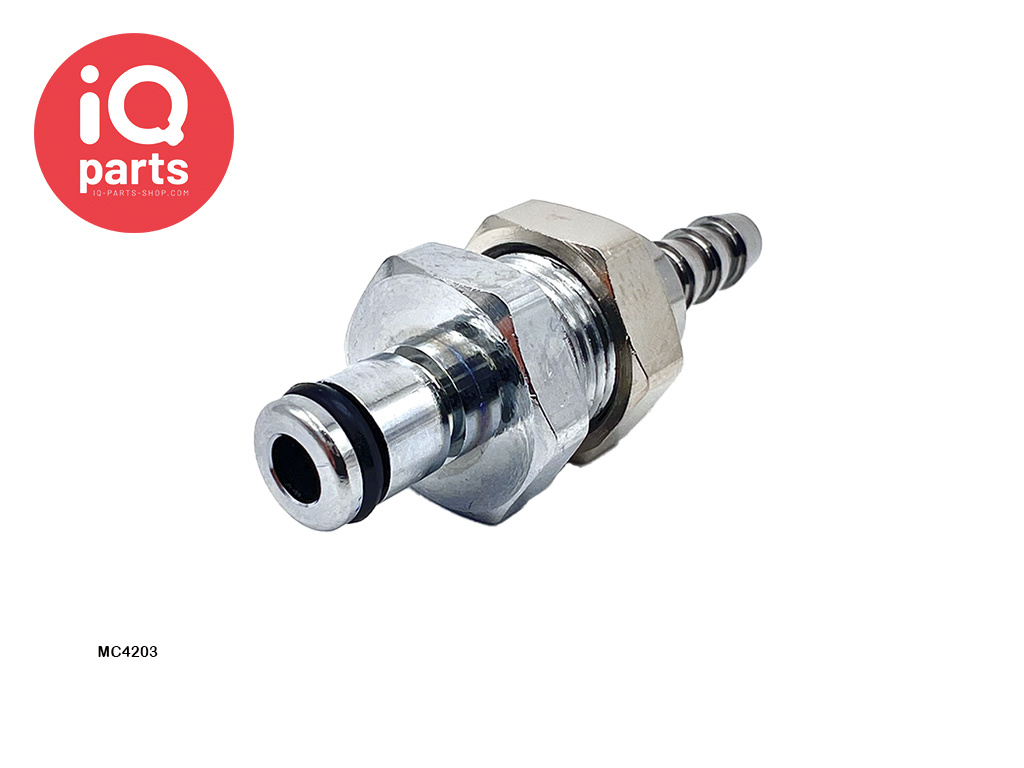

CPC - MC4203 / MCD4203 | Coupling Insert | Panel mount | Hose barb 4,8 mm (3/16")
Brand:
CPC
| Article number: | CPC-MCD4203 |
| SKU: | MCD4203 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information
CPC - MC4203 / MCD4203 | Coupling Insert | Panel mount | Hose barb 4,8 mm (3/16")
An in-line coupling of CPC from the MC series with a 4,8 mm Hose barb and suitable for panel mounting through the male thread and fastening nut.
This Coupling Insert (male) ensures a leak-free seal, partly provided by a Buna-N (NBR) sealing ring. This coupling is available with a valve (MCD4203) and without a valve (MC4203). (Choose at the top right at "Make a choice:")
Properties of the coupling from the MC series:
- Brass Material
- Chrome plating
- Durable and able to withstand higher pressure and temperature
- Attractive appearance
- Versions rated to 204ºC
- One-hand connection and disconnection
- MC mates with PMC and PMC12 Series couplings
Possible Applications:
- laser cooling systems
- soil investigation
- Diagnosis
- gas cylinder cabinets
- silkscreen
- fuel lines
General information about the MC series:
CPC’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects. These couplings offer the flexibility of multiple configurations and terminations to mate with both the PMLC acetal and PMC12 polypropylene couplings. In addition, couplings are available that meet the requirements of the NSF standard.
For more technical information, see the PDF.- Material: Chrome-plated brass
- Available in various sizes: from 3,2 mm to 6,4 mm ID, also at an angle of 90º
- Available with clamping ring coupling, hose tail or male or female thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with panel mounting option
- O-rings: Buna-N (NBR)
- Vacuum up to 17.3 bar (250 PSI)
- Temperature range: -40ºC to 82ºC constant
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air |
| Operating Pressure: | 17,3 bar Vacuum |
| Temperature range: | –40° C tot +82° C |
| Material: | Chrome-plated brass |
| Size: | 1/8" flow |
| Connection: | In-line Coupling Insert |
| Seal: | Buna-N (NBR) |
| Hose connection: | 4,8 mm (3/16") ID |
| Weight: | -- |
