Mikalor Bridge clamp - Hose clamp with Bridge W4 - 12 mm

Mikalor Bridge clamp - Hose clamp with Bridge W4 - 12 mm

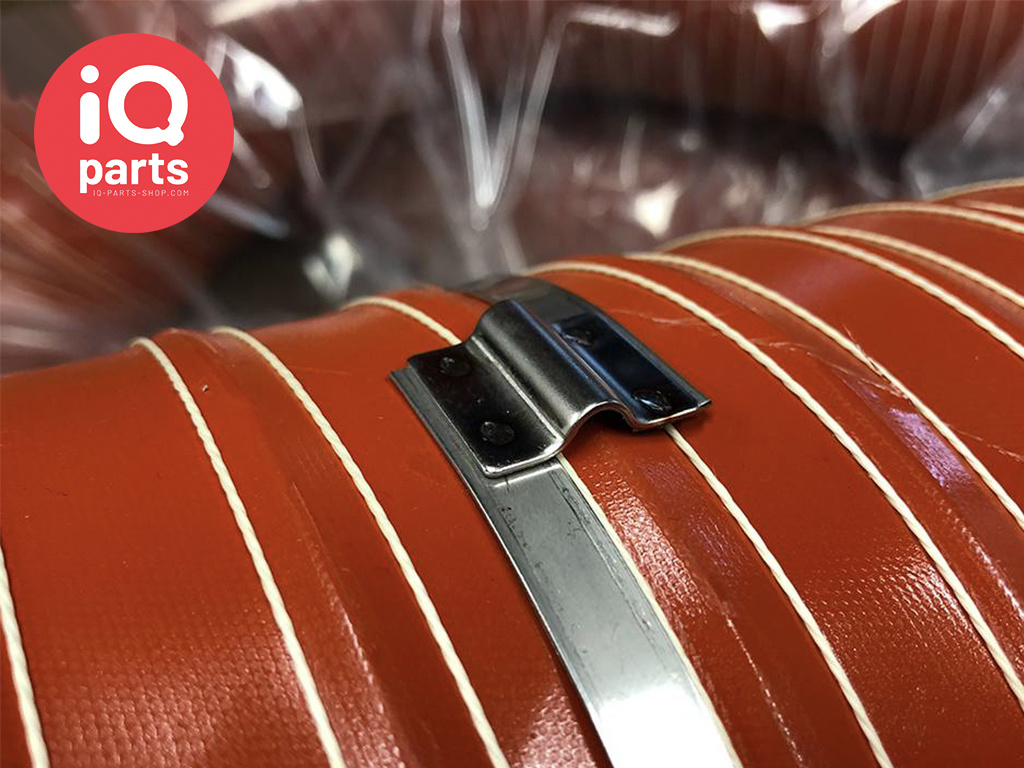

The Mikalor ASFA-S W4 Bridge Clamp is a specially developed worm screw hose clamp that is suitable for extraction hoses and ventilation hoses that are provided with an outer spiral. The "bridge" installed in the clamp falls over the spiral, which perfectly seals the hose and hose clamp. There is no better solution. Design according to DIN 3017. The stainless steel band is relatively thin and supple, yet strong, so that when tightening the clamp, it fits well around the circumference of the hose. The threads have been rolled cold in the outer circumference of the belt, so that the inside is completely flat. Moreover, the fastening of the housing to the belt is constructed in such a way that the inside of the belt is also hardly interrupted there. All this ensures a perfect connection to the hose circumference and a particularly good seal. To prevent damage to the hose, the belt edges have been turned outwards.

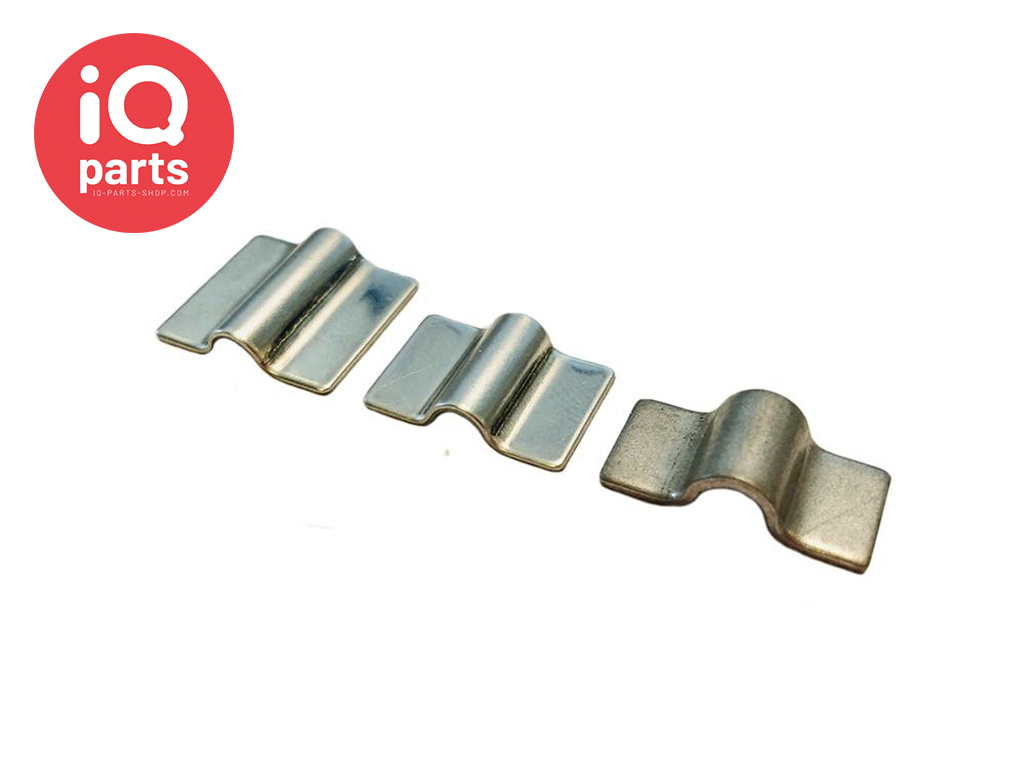

We have different sizes of bridges available, for a spiral diameter of Ø 4 and Ø 7 mm. in W4 (RVS 304) and W5 (RVS 316). Standard we use the bridge for a spiral diameter of Ø 4. If you have a thicker spiral on the hose, please contact us and we make a proposal for the right clamp with bridge.

Special clamps are also available on request;

• In W5 version, stainless steel (RVS 316).
• Up to a diameter of 500 mm or larger.

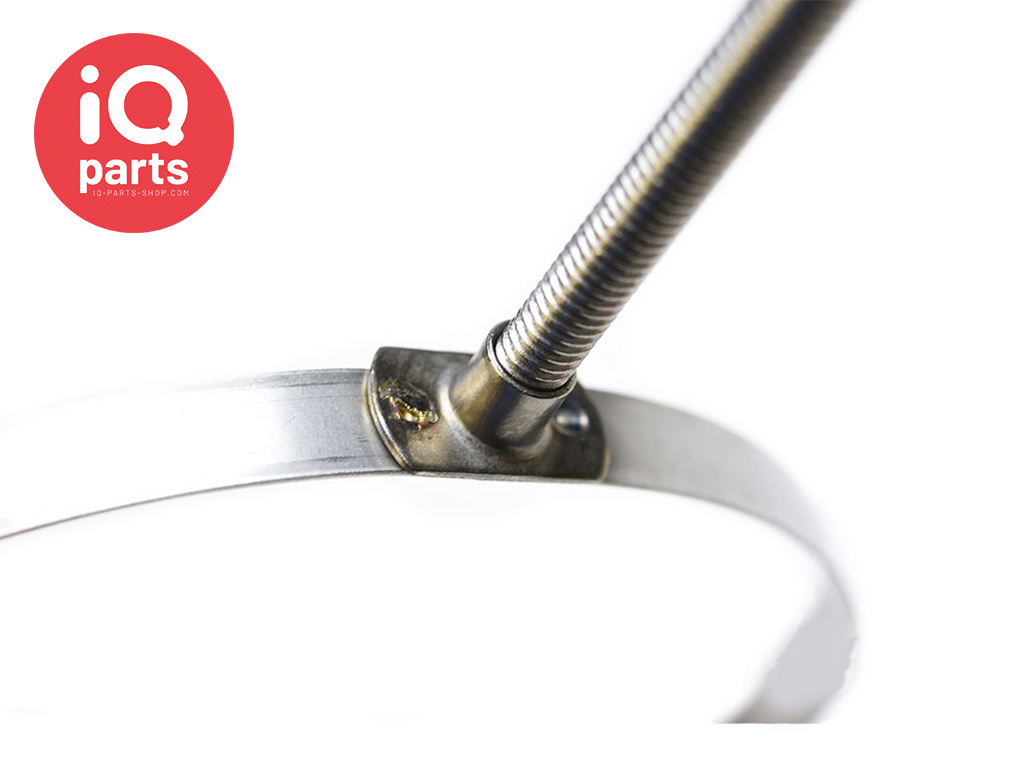

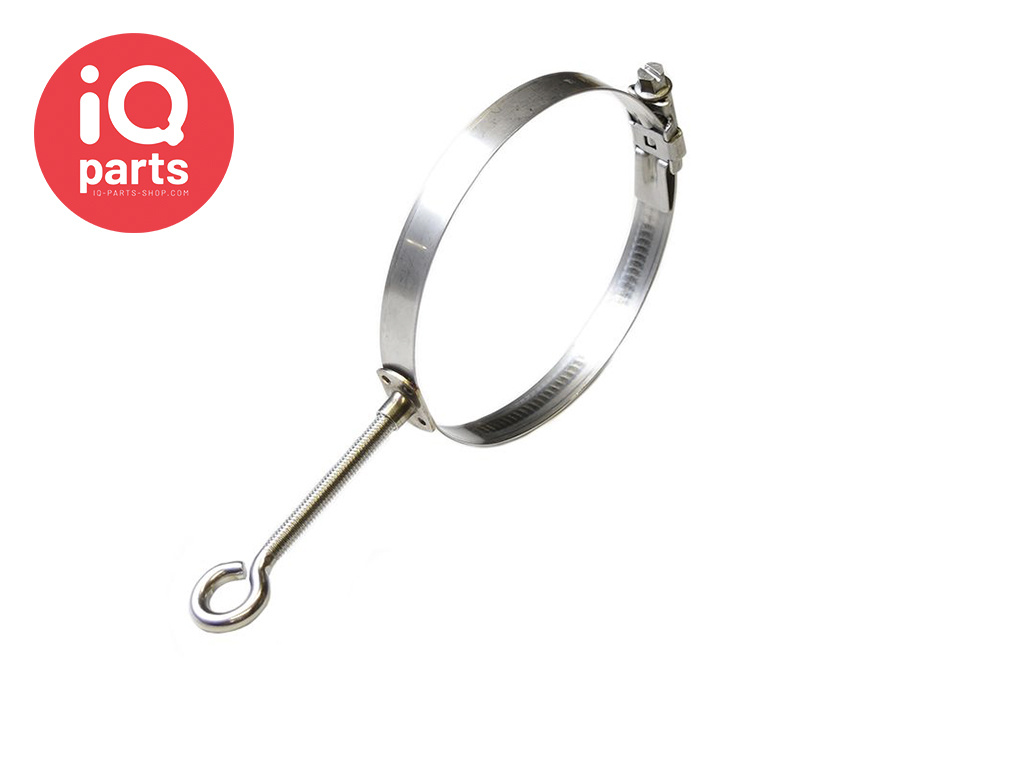

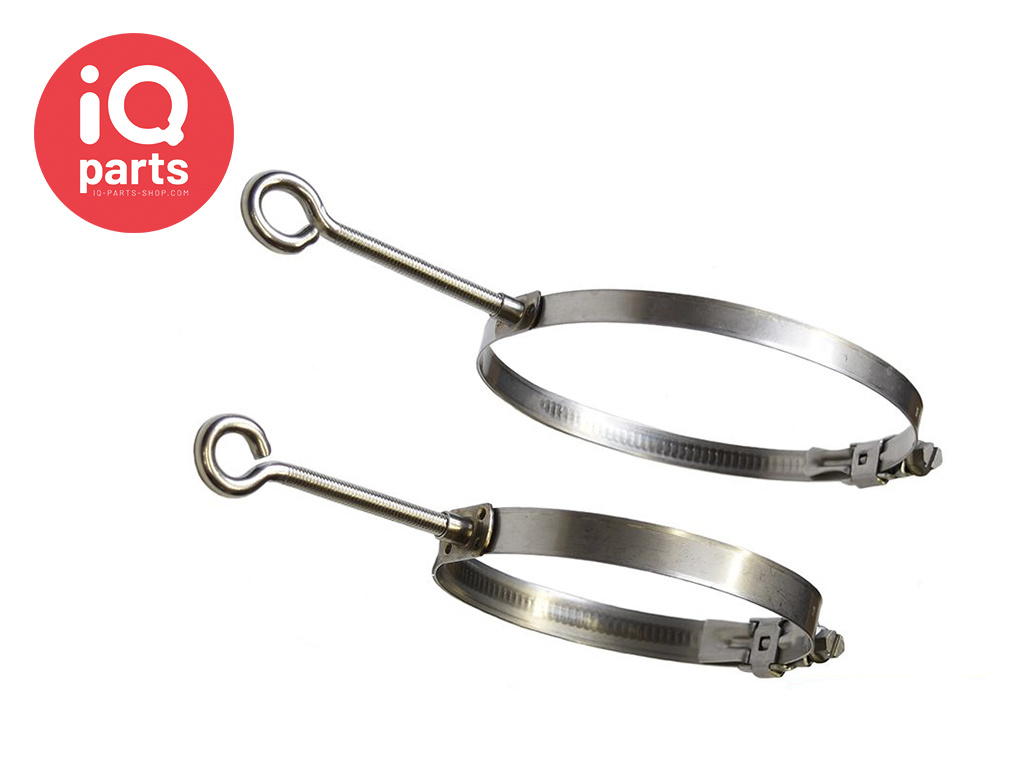

• With stainless steel hanging eye.
• With quick release.
• Equipped with M3 or M4 bolt for easy mounting to profile, wall etc.
• Equipped with Earth wire connection

All other versions possible at the booth
