CPC - MPC22006T | Coupling Insert | ABS | 9,5 mm (3/8") Hose barb | BUNA-N - DISCONTINUED -
Brand:
CPC
| Article number: | CPC-MPC22006T |
| SKU: | MPC22006T |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information

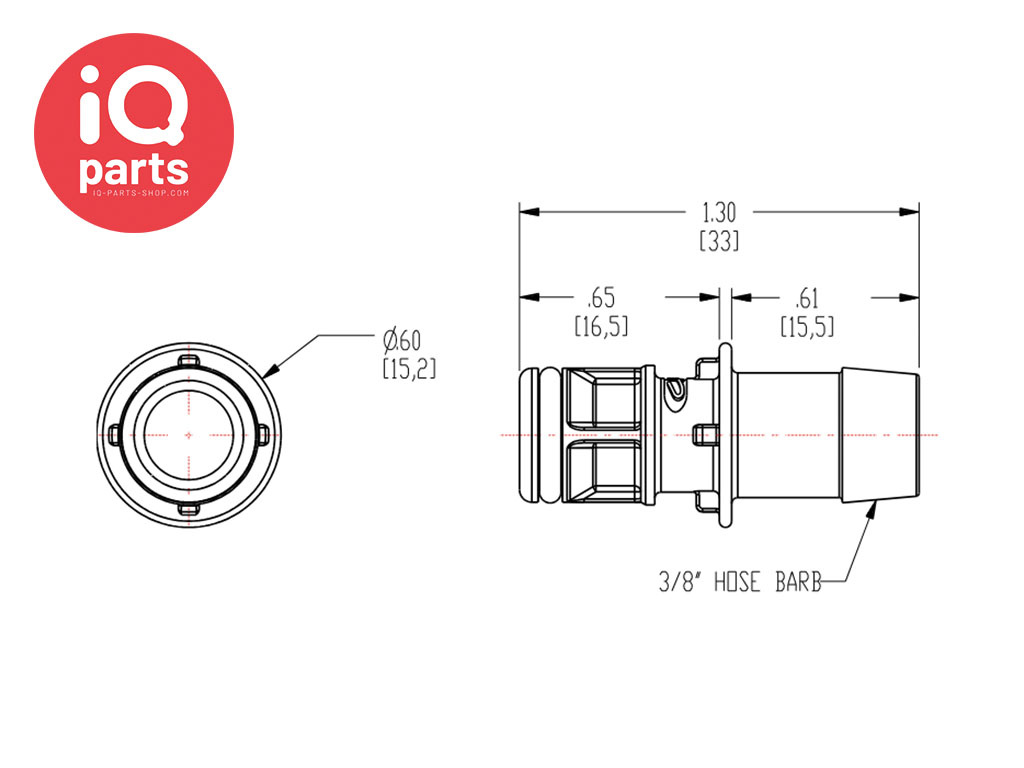

CPC - MPC22006T | Coupling Insert | ABS | 9,5 mm (3/8") Hose barb | BUNA-N
- DISCONTINUED -
As an alternative product we recommend MPC22006T03 (made of polycarbonate).
An in-line coupling Insert of CPC from the MPC series with a 9,5 mm Hose barb. This quick coupling (male) ensures a leak-free seal and is made of ABS. This coupling is only available without a valve (MPC22006T).
This Coupling Insert comes with an O-ring made of BUNA-N, Platinum-cured, USP Class VI, ADCF.
You can combine this Insert with all coupling bodies of the MPC series.
Information about the MPC-serie
The MPC-series couplings add ease of use and security to critical fluid handling applications. Choose from a full line of connectors and configurations, including pressure sealing caps and plugs, in sizes to fit 1/8" (3.2 mm), 1/4" (6.4 mm) and 3/8" (9.5 mm) tubing. MPC couplings offer optional locking sleeves to further guard against accidental disconnects. In addition, coupling halves can be rotated when connected to reduce tube kinks.
Features and Benefits:
- Ergonomic release button, easy to use even with gloves
- USP Class VI materials meet biocompatibility requirements
- Sterilizable: autoclavable, EtO, e-beam or gamma irradiation, Reusable and robust yet economically suitable for single use applications
- Hose barb without welds, minimizes fluid turbulence
- BSE/TSE-free material, meets ADCF requirements
Possible areas of application:
- medical technology
- biotechnology
Materials:
- ABS
- O-ring: BUNA-N, USP Class V.
- O-ring also available in Silicone, Platinum-cured, USP Class VI, ADCF (MPC22006TM)
- Also available in polycarbonate and polysulfone
Specifications:
- Vacuum to 60 psi, 4.1 bar
- Temperature range: -40°F to 160°F (-40°C to 71°C)
Sterilization:
Gamma: Up to 50 kGy irradiation
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Chemicals |
| Operating Pressure: | 60 psi, 4.1 bar Vacuum |
| Temperature range: | -40° F to +160° F (-40° C to +71° C) |
| Material: | ABS |
| Size: | 0,29" |
| Connection: | In-line Coupling Insert |
| Seal: | BUNA-N, USP Class V |
| Hose connection: | 9,5 mm (3/8") Inner diameter |
| Weight: | -- |
