CPC - MPC32003 | Sealing Cap | Polycarbonate | without lock
Brand:
CPC
| Article number: | CPC-MPC32003 |
| SKU: | MPC32003 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
- Customer service 09:00 - 17:00
Information

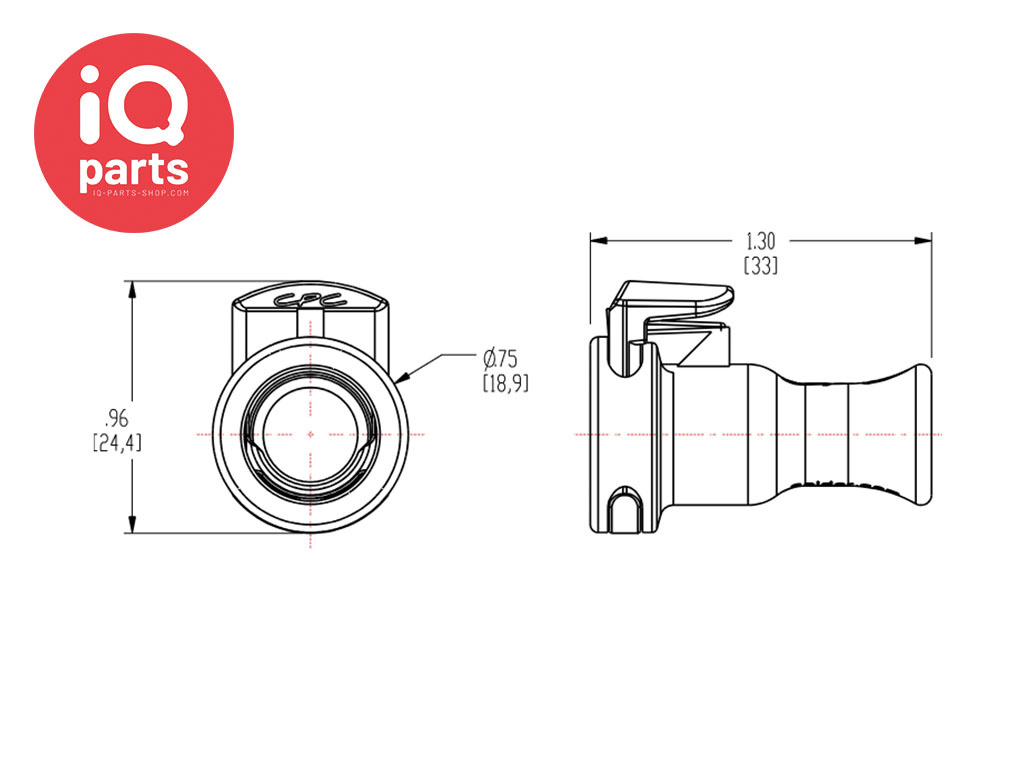

CPC - MPC32003 | Sealing Cap | Polycarbonate | without lock
A In-line coupling from CPC from the MPC series for safely sealing a coupling insert from the MPC series. This quick coupling (female) ensures a leak-free seal and is made of Polycarbonate.
The MPC32003 doesn't has a security mechanism that prevents accidental opening.
Information about the MPC-serie
The MPC-series couplings add ease of use and security to critical fluid handling applications. Choose from a full line of connectors and configurations, including pressure sealing caps and plugs, in sizes to fit 1/8" (3.2 mm), 1/4" (6.4 mm) and 3/8" (9.5 mm) tubing. MPC couplings offer optional locking sleeves to further guard against accidental disconnects. In addition, coupling halves can be rotated when connected to reduce tube kinks.
Features and Benefits:
- Ergonomic release button, easy to use even with gloves
- USP Class VI materials meet biocompatibility requirements
- Sterilizable: autoclavable, EtO, e-beam or gamma irradiation, Reusable and robust yet economically suitable for single use applications
- Hose barb without welds, minimizes fluid turbulence
- BSE/TSE-free material, meets ADCF requirements
Possible areas of application:
- medical technology
- biotechnology
Materials:
- Polycarbonate
- Also available in polysulfone
Specifications:
- Vacuum to 60 psi, 4.1 bar
- Temperature range: -40°F to 250°F (-40°C to 121°C)
Sterilization:
- Gamma: Up to 50 kGy irradiation
- Autoclave: Up to 250°F (121°C), 30 minutes, up to 10 repetitions. Sterilize uncoupled only.
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Chemicals |
| Operating Pressure: | 60 psi, 4.1 bar Vacuum |
| Temperature range: | -40° F to +250° F (-40° C to +121° C) |
| Material: | Polycarbonate |
| Size: | -- |
| Connection: | In-line Coupling Body |
| Seal: | -- |
| Hose connection: | -- |
| Weight: | -- |
