JCS Multi Torque endless hoseband - 16 mm - W4 - 30 m
Brand:
JCS
| Article number: | JCS-MTC-W4-030 |
| SKU: | MTB-30P |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
- Customer service 09:00 - 17:00
Information
JCS Multi Torque endless hoseband - 16 mm - W4 (AISI 304) - 30 m

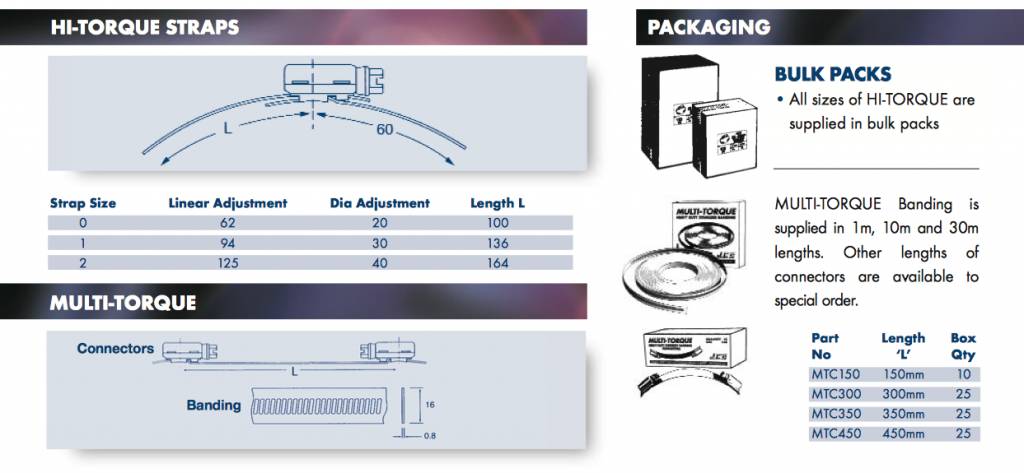

Ideal for large diameter applications, our Multi-Torque adjustable banding hose clamps combine the strength and performance of the Hi-Torque hose clamp with the versatility convenience producing instant hose clamps to any design and diameter from a kit. Multi-Torque is significantly stronger than any other adjustable banding products and straightforward to use - simply cut off the required banding length from a continuous roll and engage one end into each housing of the worm drive Multi-Torque connectors provided. The band can then be applied to pipes or ducts of virtually any diameter. Multi-Torque banding is supplied in 30m coils. Other lengths are available to special order. A maintenance kit is also available that contains one connector and 1m coil, a necessary addition to any field service engineer's toolkit.
Technical Specifications
- Recommended setting torque – 15 Nm (130 lb.tn)
- Band tensile strength – 1150 N/mm2 approx. (75 tons/inch2)
Note: The Multi-Torque band connector must be ordered separately !!
Click HERE for the Multi-Torque band connector
Productcode:
MTB-10P - MTB-30P - MTC-150 - MTC-300 - MTC-350 - MTC-450 - NBZ30P
Specifications
| Bolt: | SW 8 mm |
| Bandwidth: | 16 mm |
| Tightening torque (Maximum): | 15 Nm (Maximum) |
