Murray High Torque Clamp | XHF Series | W4
Brand:
Murray
Article number: | MUR-XHF212SS |
SKU: | XHF212SS |
- 2 year warranty
- Delivery time: 6 - 8 weeks
Information
Murray High Torque Clamp | XHF Serie | W4

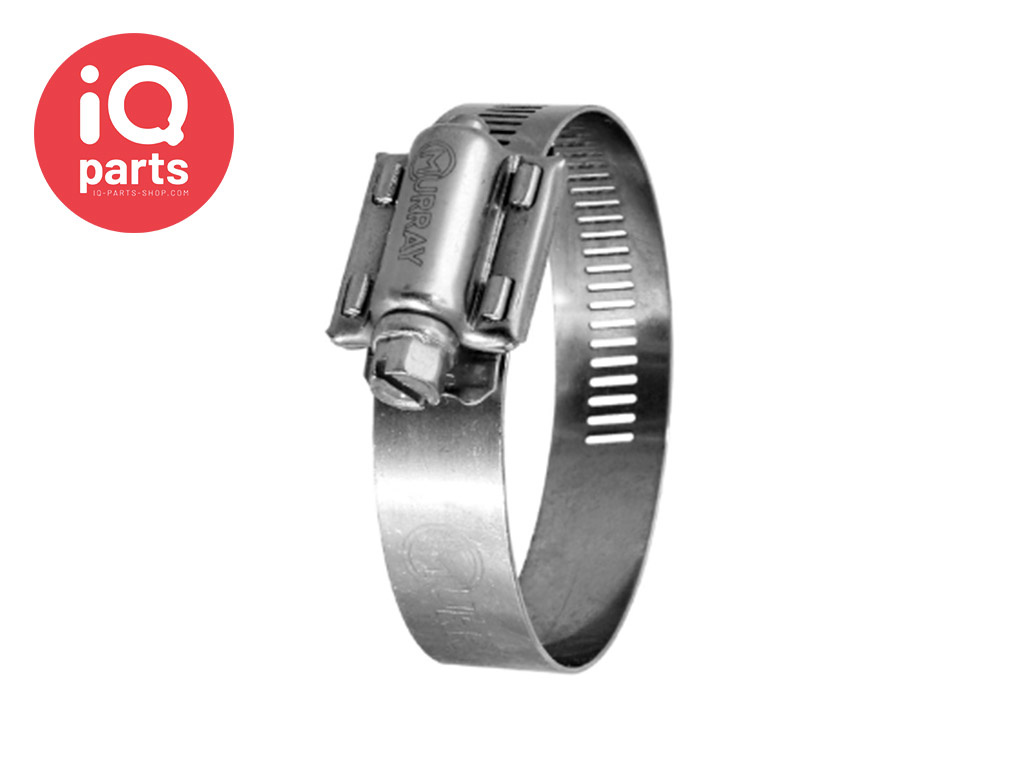

This High Torque Clamp is a 5/8” (15.9 mm) wide Heavy Duty Worm Screw Clamp from Murray's XHF series.
This clamp is mainly characterized by the following properties:
- All components made with 300 grade stainless steel
- Band width is 15.9 mm (5/8”)
- Screw is longer and has a larger diameter than standard Worm Drive clamps to provide strength under load and to increase the number of threads engaged with the band. This produces a clamp that can withstand higher loads
- Band material is slightly thicker allowing for higher tensile strength providing a stronger clamp capable of producing higher torque ratings
- Ultimate torque is a minimum of 100 in lbs or 11.3 Nm
- Recommended Installation Torque is 75 in lbs or 8.5 Nm
- Suitable for applications where a heavier duty clamp is necessary
- Other material grades may be available upon request
If this article is ON REQUEST, please Contact our sales department for a customized quote.
Product code:
XHF212SS – XHF237SS – XHF262SS – XHF287SS – XHF312SS – XHF337SS – XHF362SS – XHF387SS – XHF412SS – XHF437SS – XHF462SS – XHF487SS – XHF412SS – XHF437SS – XHF462SS – XHF487SS – XHF512SS – XHF537SS – XHF562SS – XHF587SS – XHF612SS – XHF637SS – XHF662SS – XHF687SS – XHF712SS – XHF737SS – XHF762SS – XHF787SS – XHF812SS – XHF837SS – XHF862SS – XHF887SS – XHF912SS – XHF937SS – XHF962SS – XHF987SS
