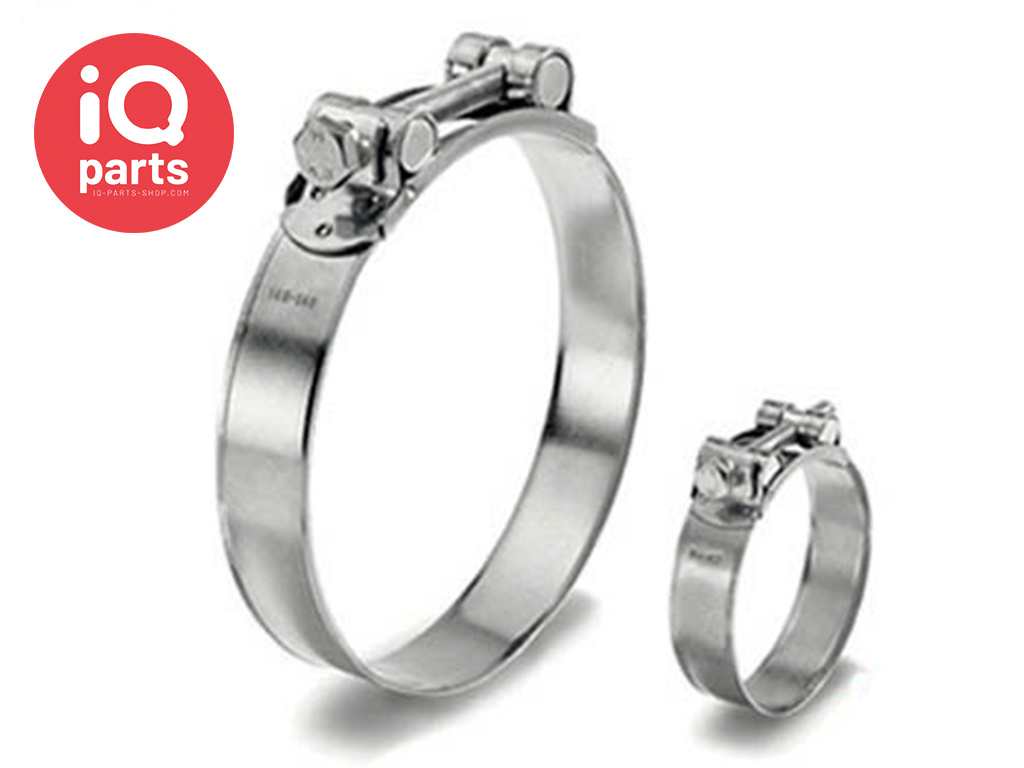

Nordic Metalblok Norflex Heavy Duty T-Bolt Clamp | W2
Brand:
Nordic Metalblok
- Buy 50 for €1,04 each and save 20%
- Buy 100 for €0,91 each and save 30%
- Buy 250 for €0,78 each and save 40%
- Buy 500 for €0,65 each and save 50%
| Article number: | NMB-NN023-025-W2 |
| SKU: | NMB-NN023-025-W2 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information
Nordic Metalblok Norflex Heavy Duty T-Bolt clamps | W2
The NORFLEX clamp is ideal for all kind of fastening application in which a total airtight quality is required at average and strong pressure.
Application Fields:
- Agriculture
- Irrigation
- Pump station
- Hardware / DIY
- Industrial
- Air conditioning
Norflex is available in following qualities:
- W2: band is in ferritic stainless steel AISI 430 EN 1.4016, solid barrels and screw are in galvanized steel free of Exavalent Chromium
- W4: all components are in austenitic stainless steel AISI 304 EN 1.4301
- W5: all components are in austenitic stainless steel AISI 316 EN 1.4401
In addition, the NORFLEX T-Bolt clamp is also available with a double bolt in W2 and W4 quality (Bi-Norflex) and in extra large size (Magnum).
Dimensions:
23-25 mm to 64-67 mm: Width = 21 mm, Bolt = M6
36-39 mm to 64-67 mm: also available with M8 bolt
68-73 mm to 122-130 mm: Width = 24 mm, Bolt = M8
122-130 mm: also available with M10 bolt
131-139 mm to 240-252 mm: Width = 26 mm, Bolt = M10
Specifications
| Bolt: | M6 - M8 - M10 |
| Bandwidth: | 21 mm - 24 mm - 26 mm |
| Tightening torque (Maximum): | 15 - 30 Nm |
