Normafix Retaining clamps with brackets HMK SPGU 6025 HD | W1

Brand: NORMA

| Create your own review

NORMA Normafix Retaining clamps with brackets HMK SPGU 6025 HD | W1

View specifications

€0,- Incl. tax

€0,- Excl. tax

* Excl. tax | Excl. Shipping costs

Out of stock
Delivery time: 2 - 3 weeks

Make a choice:

Diameter:

C Profile:

ON REQUEST

Add to wishlist

Add to comparison list

Buy 10 for €0,00 each and save 10%
Buy 50 for €0,00 each and save 20%
Buy 100 for €0,00 each and save 30%

Article number:	NOR-SP-SPGU-6025-W1
SKU:	NOR-SP-SPGU-6025-W1

2 year warranty
Delivery time: 2 - 3 weeks

Share this product

Information

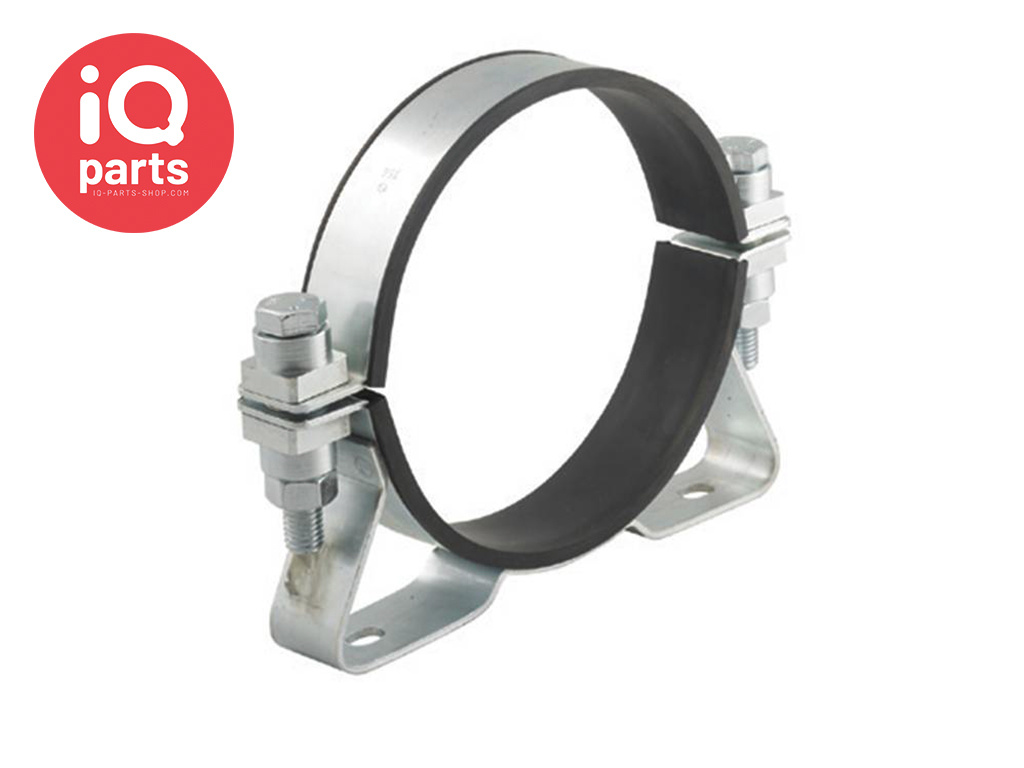

Normafix Retaining clamps with brackets HMK SPGU 6025 HD | W1 | Two-parts | Heavy Duty

In the NORMAFIX® HMK series, the Accumulator bracket is one of the heavy duty clamps. With these brackets, the ends of the brackets are folded back and welded to the clamping band. Thanks to this design, the clamps are suitable for securing heavy containers, pipes and Accumulators and can withstand high mechanical loads. The SPGU clamps are 30 mm wide, 3 mm thick and equipped with a rubber protection profile (EPDM). The quality is Galvanised Steel (W1)

Benefits at a glance:

Stable construction
Chrome 6 free surfaces
Also possible without rubber profile
2-part for larger clamping range
Applicable for large diameter hoses

Applications:

Machine Building
Chemical industry
Irrigation systems
Ship manufacturing
Food and beverage industry
Railway industry
Agricultural machinery
Building machinery
Engine manufacturing
Pumps and filters
Mining industry

Also available:

In W4 quality, AISI 304 (= SPGU 6236) and on request: W5 quality (stainless steel 316)
1-piece (= SPGU 6011) and W4 (=SPGU 6241)
On request: Silicone C-Profile

Productcode:

01816025089 - 01816025100 - 01816025108 - 01816025114 - 01816025115 - 01816025121 - 01816025124 - 01816025126 - 01816025128 - 01816025135 - 01816025146 - 01816025150 - 01816025152 - 01816025154 - 01816025159 - 01816025160 - 01816025163 - 01816025165 - 01816025168 - 01816025169 - 01816025170 - 01816025172 - 01816025175 - 01816025176 - 01816025186 - 01816025210 - 01816025220 - 01816025222 - 01816025223 - 01816025224 - 01816025226 - 01816025228 - 01816025229 - 01816025230 - 01816025232 - 01816025235 - 01816025240 - 01816025246 - 01816025250 - 01816025267 - 01816025276 - 01816025290 - 01816025292 - 01816025300 - 01816025320 - 01816025333 - 01816025350 - 01816025386 - 01816025400 - 01816025445 - 01816025560 - 01816025630

0181 6025 089 - 0181 6025 100 - 0181 6025 108 - 0181 6025 114 - 0181 6025 115
0181 6025 121 - 0181 6025 124 - 0181 6025 126 - 0181 6025 128 - 0181 6025 135
0181 6025 146 - 0181 6025 150 - 0181 6025 152 - 0181 6025 154 - 0181 6025 159
0181 6025 160 - 0181 6025 163 - 0181 6025 165 - 0181 6025 168 - 0181 6025 169
0181 6025 170 - 0181 6025 172 - 0181 6025 175 - 0181 6025 176 - 0181 6025 186
0181 6025 210 - 0181 6025 220 - 0181 6025 222 - 0181 6025 223 - 0181 6025 224
0181 6025 226 - 0181 6025 228 - 0181 6025 229 - 0181 6025 230 - 0181 6025 232
0181 6025 235 - 0181 6025 240 - 0181 6025 246 - 0181 6025 250 - 0181 6025 267
0181 6025 276 - 0181 6025 290 - 0181 6025 292 - 0181 6025 300 - 0181 6025 320
0181 6025 333 - 0181 6025 350 - 0181 6025 386 - 0181 6025 400 - 0181 6025 445
0181 6025 560 - 0181 6025 630

Specifications

Bandwidth:	30 mm
Rubber:	EPDM
