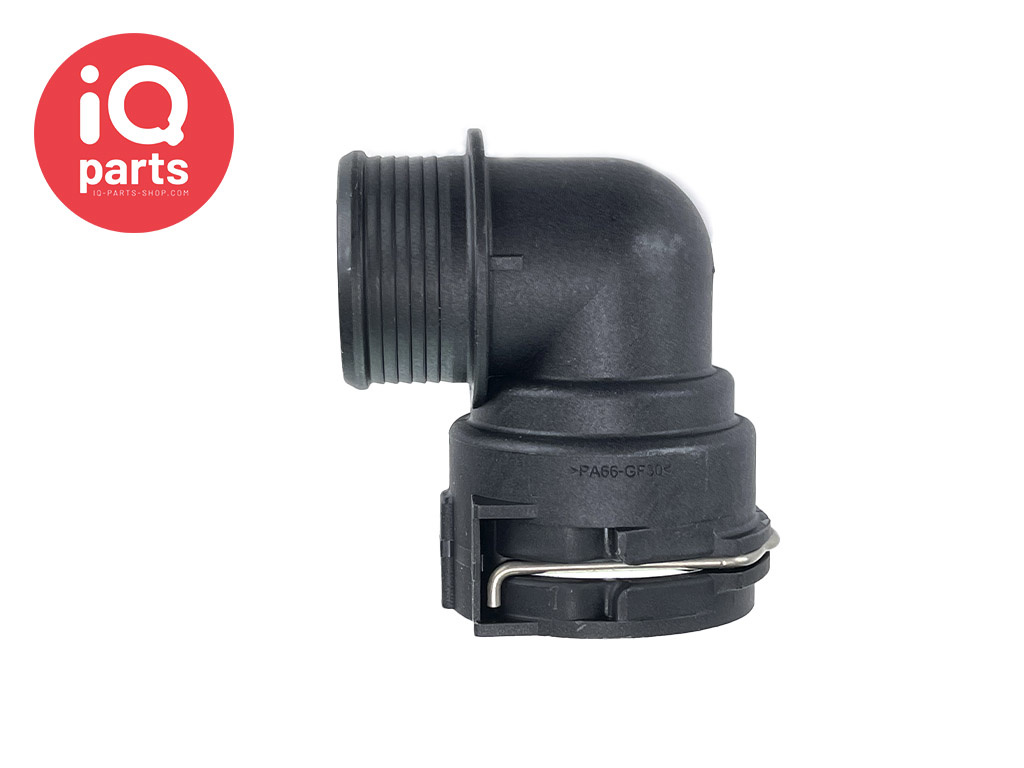

NORMAQUICK® PS3 Quick Connector 90° NW26 - 32,4 mm

€11,43 Incl. tax
€9,45 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 91 in stock
Delivery time: Delivery in 1 to 2 days
  • Buy 10 for €8,51 each and save 10%
  • Buy 25 for €7,56 each and save 20%
  • Buy 50 for €6,62 each and save 30%
Article number: NOR-7027011026
EAN: 4050557359034
SKU: 07027011026 07028011026
  • 2 year warranty
  • Delivery time: Delivery in 1 to 2 days
Information

NORMAQUICK PS3 Quick Connector 90° NW26 - 32,4 mm

PS3 “Push & Seal” plastic quick connectors are an ideal means for the secure connection of cooling water and heating hoses.
PS3 quick connectors are made from recyclable materials. For our standard versions we use polyamide 6.6 with 30% glass fiber content.

The standard material for the O-rings consists of peroxide-cured EPDM which is resistant to hot water. For PS3 quick connectors that are likely to be used in direct contact with coolants we recommend PA 6.6 with 30% glass fiber content that has been stabilized against heat and hydrolysis.
Please note that all PS3 quick connectors are delivered without spigot. However, we will be pleased to offer suitable VDA spigots for Line-to-Line connection on request.

The  O-rings consists of EPDM-60 (Shore).

The advantages at a glance:
  • Snap assembly without tool – time and cost reduction
  • Robot assembly possible – automated processes
  • Compact structural dimensions – to be used in extremely narrow spaces
  • Integrated seal – optimal tightness




Technical drawing:

Product code:
07027011026 - 07028011026 - 07026011026 - 0702 7011 026 - 0702 8011 026- 0702 6011 026 - 4050557359034
Specifications
Medium: Cooling Water
Operating Pressure: 0–2 bar excess pressure
Temperature range: –40°C to +135°C, Short time up to +150°C (approx. 30 min.)
Material: Polyamide 6.6 with a glass fiber content of 30%
Size: NW26
Connection: 90°
Seal: EPDM-60
Hose connection: 32,4 mm Inner diameter
Weight:
NORMA NORMAQUICK® PS3 Quick Connector 90° NW26 - 32,4 mm
