NORMAQUICK® S Quick Connector 90° NW08-06 - 6 mm
Brand:
NORMA
- Buy 10 for €8,24 each and save 10%
- Buy 25 for €7,32 each and save 20%
- Buy 50 for €6,41 each and save 30%
| Article number: | NOR-7158521008 |
| SKU: | 07158521008 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
- Customer service 09:00 - 17:00
Information

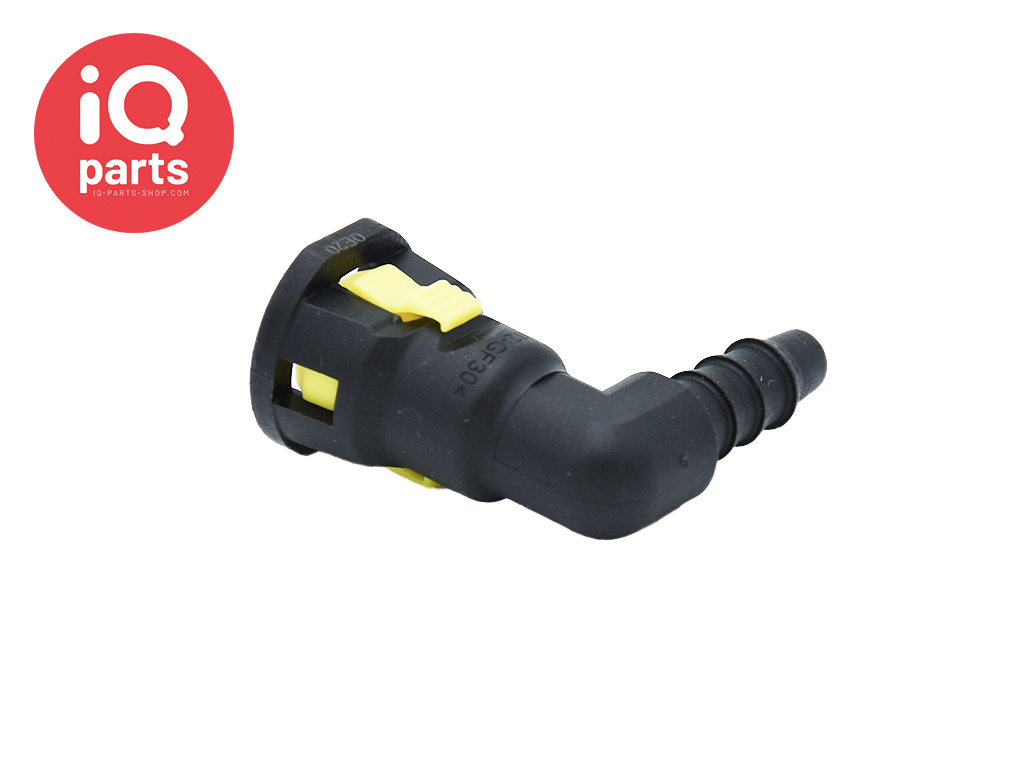

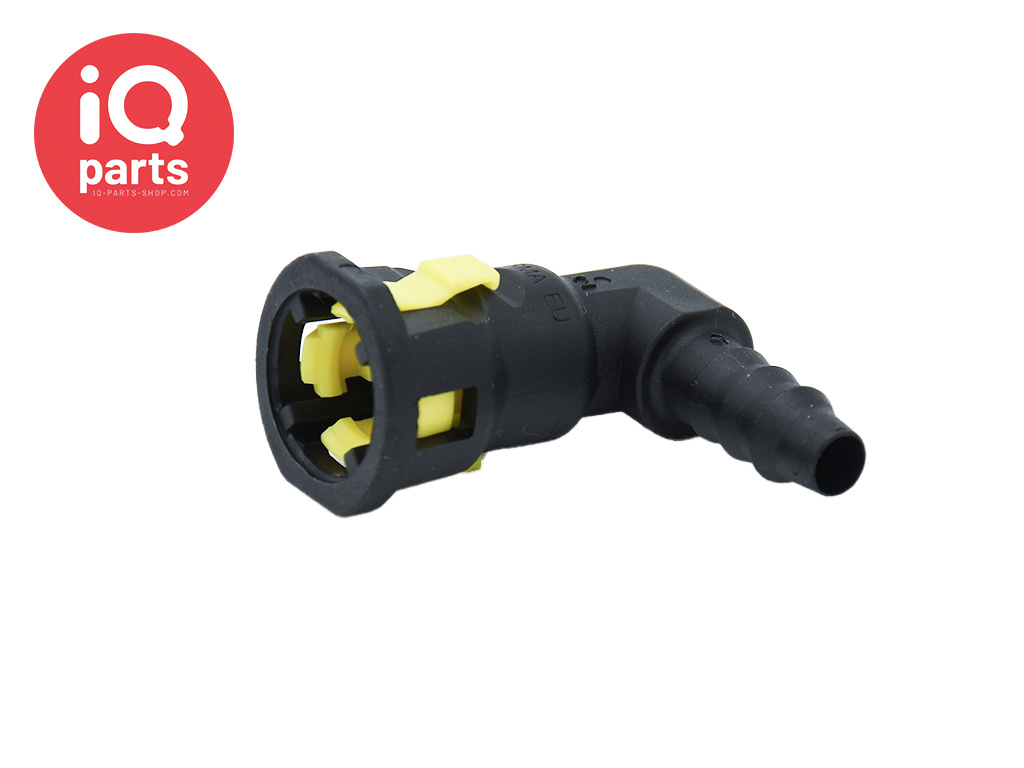

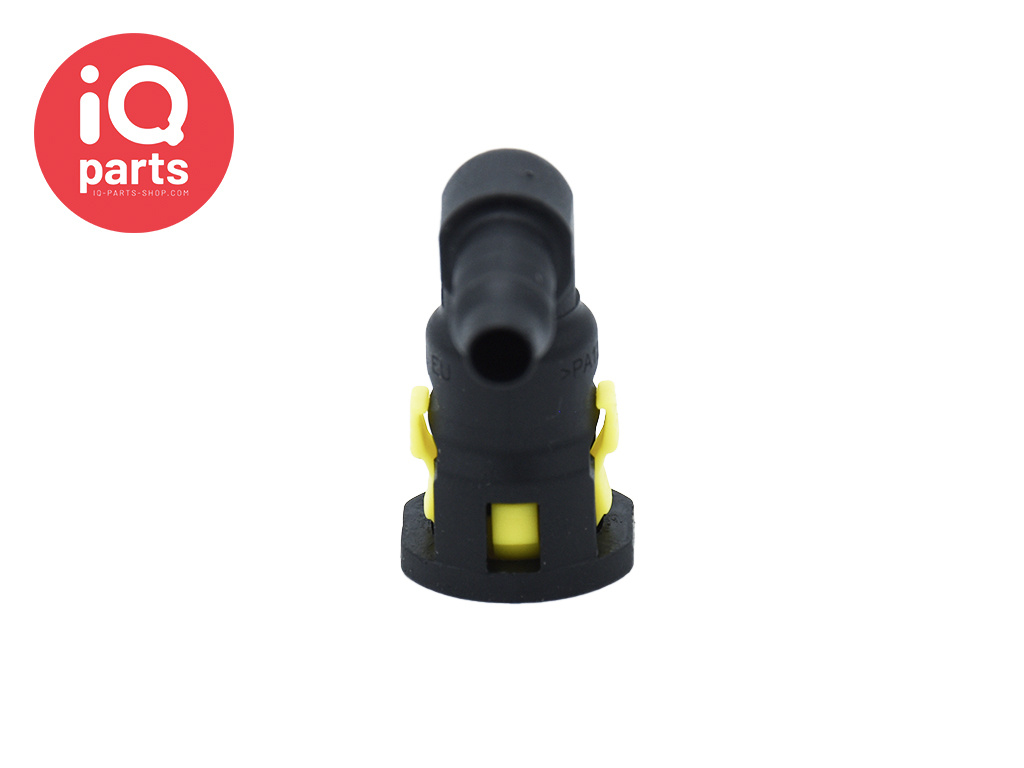

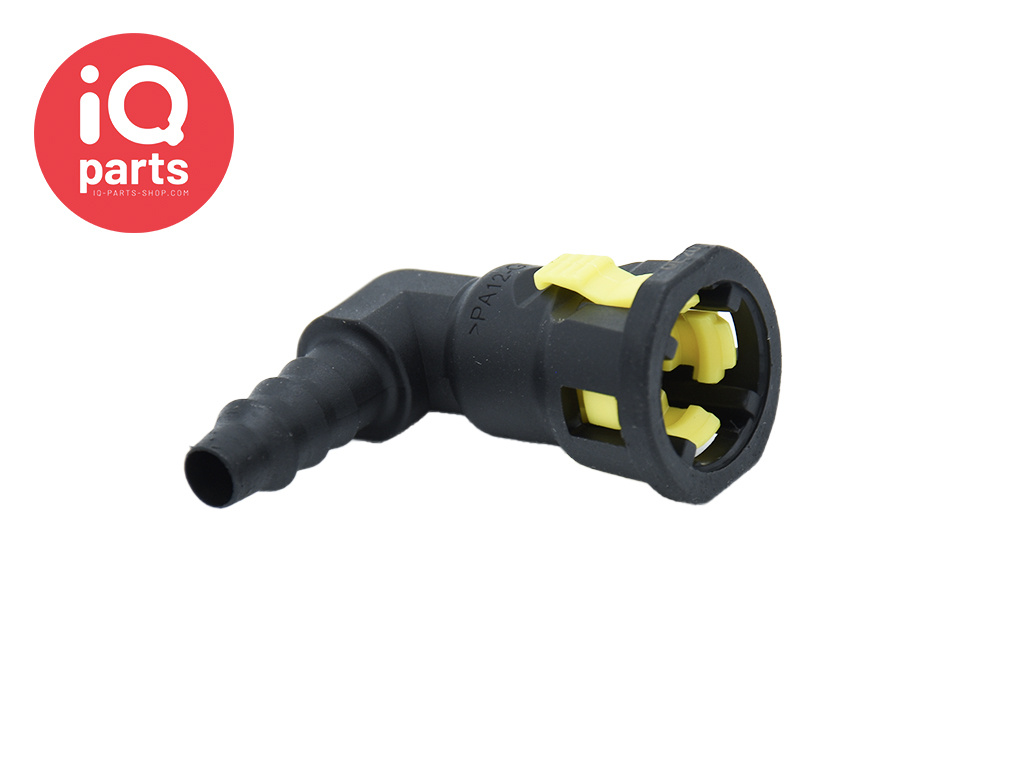

NORMAQUICK® S Quick Connector 90º NW08-06 with 6 mm hose connection
The NORMAQUICK® S plug connectors made of plastic, are designed to connect media carrying lines on automobiles and have been developed for fuel system applications. The connectors can be used for both line-to-line and line-to-device connections.
They are available as standard in connection variants 0°, 45° and 90°.
The advantages at a glance
- Fast assembly without tools: time and cost savings
- Robot mounting possible - automated processes
- Compact design - can be used in extremely tight installation conditions
- Integrated sealing - optimum tightness
- The principle of the closing cone type S is protected against accidental opening and cannot be unlocked under pressure
Technical drawing:
Product code:
07158521008 - 07157521008 - 07156521008 - 0715 8521 008 - 0715 7521 008 - 0715 6521 008
Specifications
| Medium: | Fuel, Oil cooler, Vacuum control, Coolant, DEF |
| Operating Pressure: | Approx. 10 bar excess pressure |
| Temperature range: | –40°C to +135°C, Short time up to +150°C (approx. 30 min.) |
| Material: | Polyamide 6 or 12 with a glass fiber content between 20% and 50% |
| Size: | NW08-06 |
| Connection: | 90° |
| Seal: | FPM-FVMQ |
| Hose connection: | 6 mm Inner diameter |
| Weight: |
