NORMAQUICK® S straight Quick Connector 90° NW5/8" - 13 mm
Brand:
NORMA
- Buy 10 for €17,23 each and save 10%
- Buy 25 for €15,31 each and save 20%
- Buy 50 for €13,40 each and save 30%
| Article number: | NOR-7158504016 |
| SKU: | 07158504016 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
Information
NORMAQUICK® S straight Quick Connector 90º NW5/8" with 13 mm (1/2") hose connection
The NORMAQUICK® S plug connectors made of plastic, are designed to connect media carrying lines on automobiles.
They are primarily developed for fuel applications and contain FPM and FVMQ sealing rings.
The connectors can be used for both line-to-line and line-to-device connections.
They are available as standard in connection variants 0°, 45° and 90°.
The advantages at a glance
- Fast assembly without tools: time and cost savings
- Robot mounting possible - automated processes
- Compact design - can be used in extremely tight installation conditions
- Integrated sealing - optimum tightness
- The principle of the closing cone type S is protected against accidental opening and cannot be unlocked under pressure

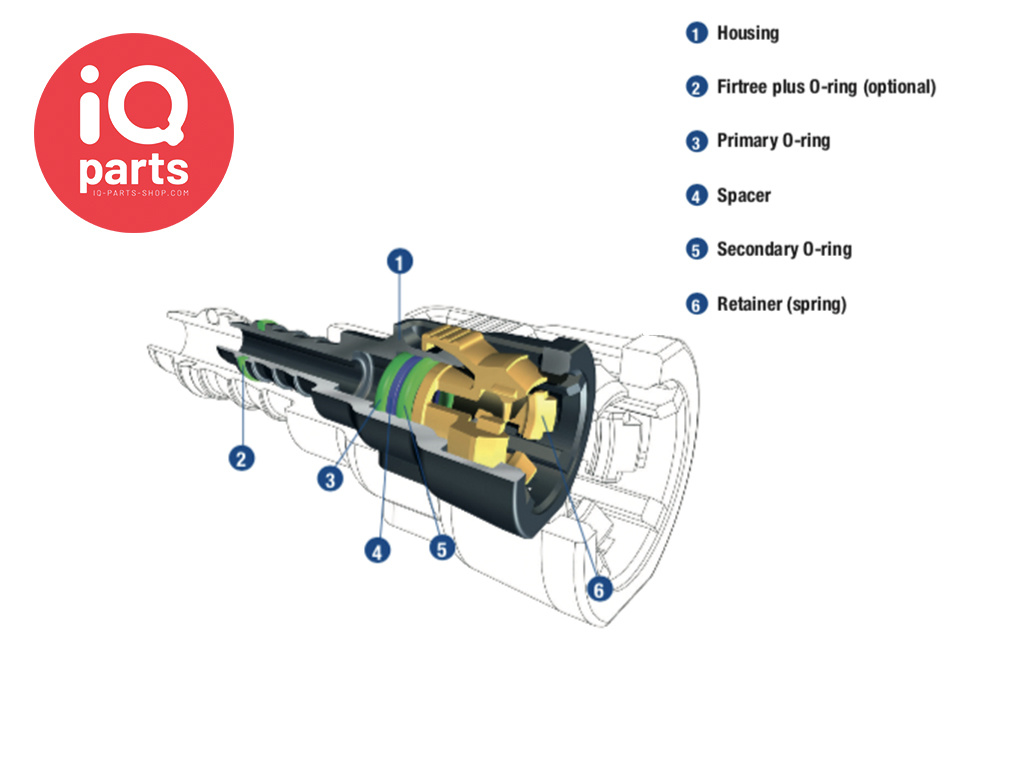

Technical drawing:
Product code:
07158504016 - 07157504016 - 07156504016 - 0715 8504 016 - 0715 7504 016 - 0715 6504 016
Specifications
| Medium: | Fuel, Oil cooler, Vacuum control, Coolant, DEF |
| Operating Pressure: | Approx. 10 bar excess pressure |
| Temperature range: | –40°C to +135°C, Short time up to +150°C (approx. 30 min.) |
| Material: | Polyamide 6 or 12 with a glass fiber content between 20% and 50% |
| Size: | NW5/8" |
| Connection: | 90° |
| Seal: | FPM-FVMQ |
| Hose connection: | 13 mm (1/2") Inner diameter |
| Weight: |
