NORMAQUICK® V2 Quick Connector 45° NW15 - 18,4 mm | FKM
Brand:
NORMA
| Article number: | NOR-7138027015 |
| SKU: | 7138027015 |
- 2 year warranty
- Delivery time: 6 - 8 weeks
Information
Normaquick® V2 Quick Connector 45º NW15 with 18,4 mm hose connection | FKM

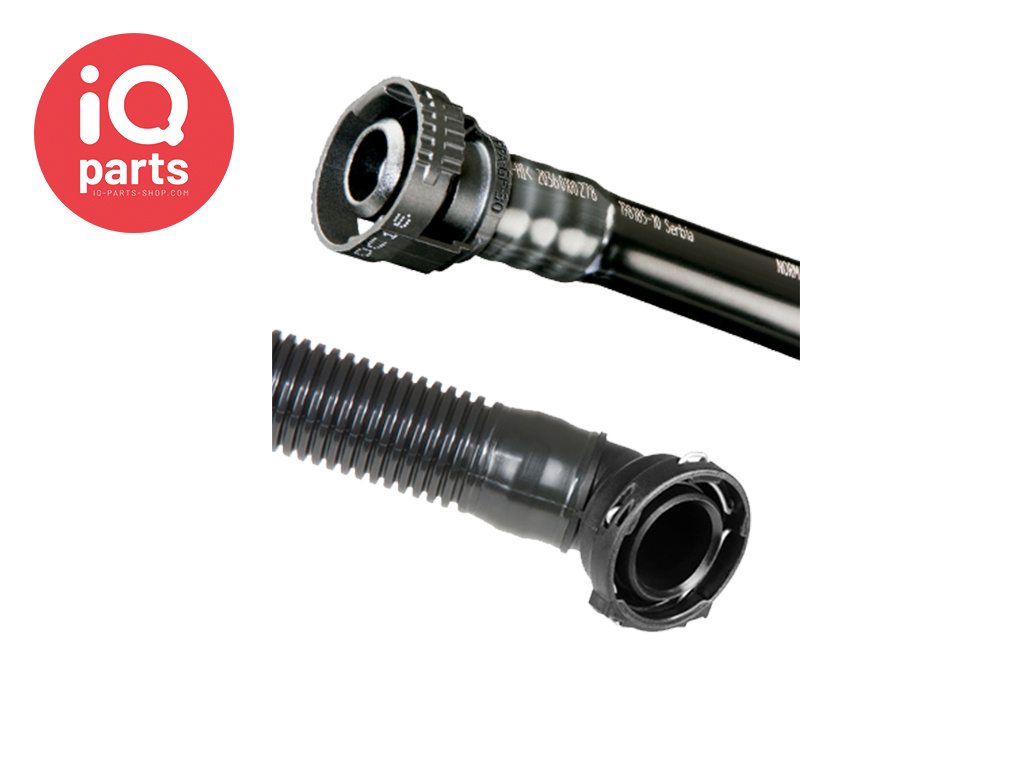

V2 plastic quick connectors are an ideal means to connect media carrying lines as well as ventilation and exhaust lines in automotive industry. The connectors can be used for both line-to-line and line-to-device connections. V2 can be applied on both plastic and metal spigots and have an FKM O-ring. This makes them resistant to high temperatures and various chemicals.
NORMAQUICK® V2 plug connections are available as standard in the connection variants 0°, 45°, 50° and 90°.
The advantages at a glance
- Quick assembly time equaling cost reduction
- Automated production, no human factor means less margin of error
- No tools needed
- Compact dimensions allowing ease of use in narrow spaces

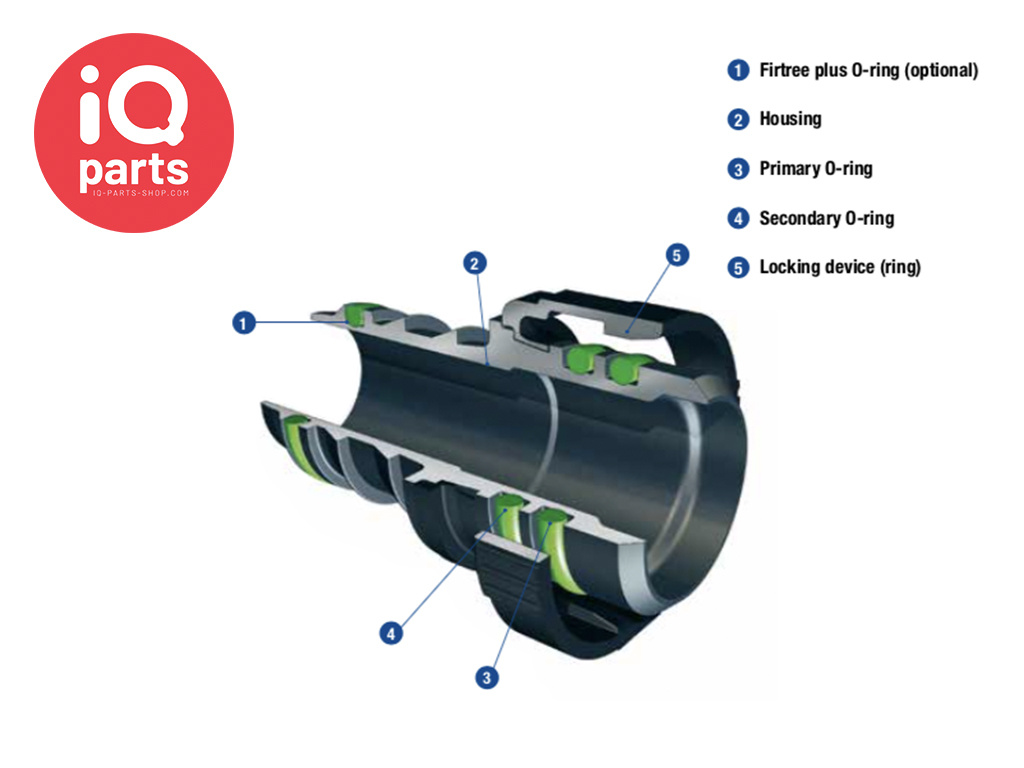

- An integrated seal provides optimal tightness
- All seals can be visually checked, permitting safe assembly
- Featuring extremely low permeation values
Technical drawing:
Product code:
07138027015 - 07137027015 - 07136027015 - 0713 8027 015 - 0713 7027 015 - 0713 6027 015
Specifications
| Medium: | Fuel tank ventilation, Ventilation and exhaust lines , Oil cooler lines, Vacuum brake line |
| Operating Pressure: | Approx. 2,5 bar excess pressure |
| Temperature range: | –40°C to +135°C, Short time up to +150°C (approx. 30 min.) |
| Material: | Polyamide 6 with 30% glass fiber content or Polyamide 12 with 20% glass fiber |
| Size: | NW15 |
| Connection: | 45° |
| Seal: | FKM |
| Hose connection: | 15 mm Inner diameter |
| Weight: |
