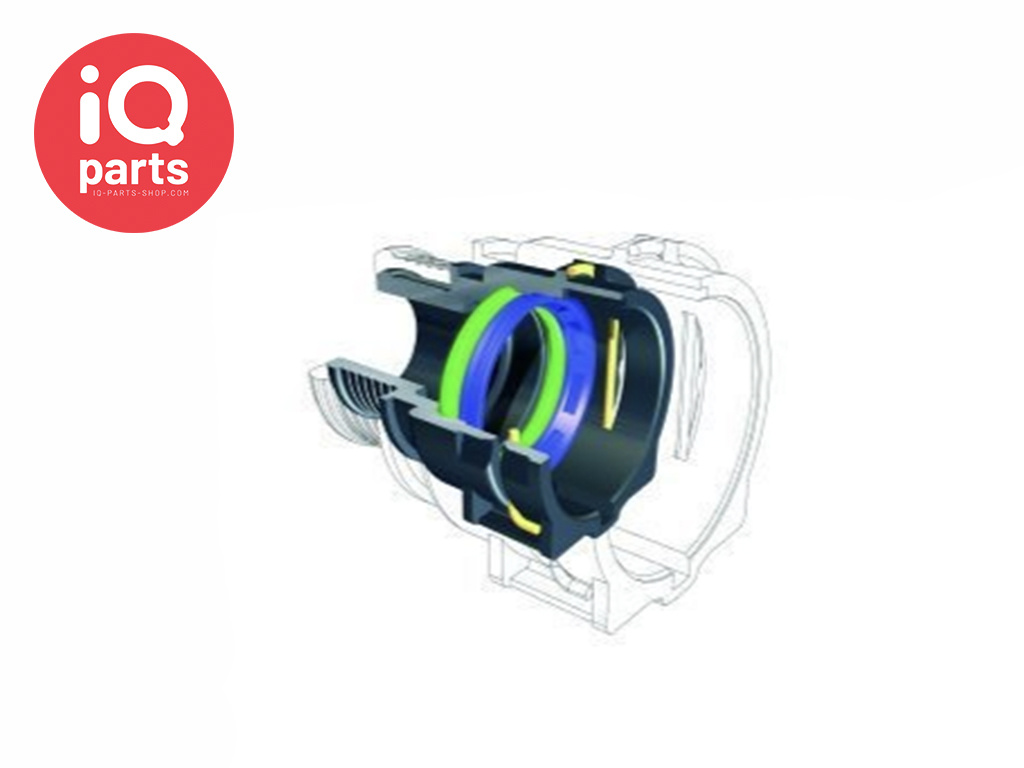

NORMAQUICK® V2 Quick Connector 90° NW06 - 6 mm

€7,26 Incl. tax
€6,- Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
  • Buy 10 for €5,40 each and save 10%
  • Buy 25 for €4,80 each and save 20%
  • Buy 50 for €4,20 each and save 30%
Article number: NOR-7138006006
SKU: 7138006006
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
Information

Normaquick® V2 Quick Connector 90° NW06 with 6 mm hose connection.

V2 plastic quick connectors are an ideal means to connect media carrying lines as well as ventilation and exhaust lines in automotive industry. The connectors can be used for both line-to-line and line-to-device connections. V2 can be applied on both plastic and metal spigots. NORMAQUICK® V2 plug connections are available as standard in the connection variants 0°, 45°, 50° and 90°.

The advantages at a glance
  • Field of application : tank ventilation
  • Quick assembly time equaling cost reduction
  • Automated production, no human factor means less margin of error
  • No tools needed
  • Compact dimensions allowing ease of use in narrow spaces
  • An integrated seal provides optimal tightness
  • All seals can be visually checked, permitting safe assembly
  • Featuring extremely low permeation values
Technical drawing:

Product code:
07138006006 - 07137006006 - 07136006006 - 0713 8006 006 - 0713 7006 006 - 0713 6006 006
Specifications
Medium: Fuel tank ventilation, Ventilation and exhaust lines , Oil cooler lines, Vacuum brake line
Operating Pressure: Approx. 2,5 bar excess pressure
Temperature range: –40°C to +135°C, Short time up to +150°C (approx. 30 min.)
Material: Polyamide 6 with 30% glass fiber content
Size: NW06
Connection: 90°
Seal: HNBR & FKM
Hose connection: 6 mm Inner diameter
Weight:
NORMA NORMAQUICK® V2 Quick Connector 90° NW06 - 6 mm
