NORMAQUICK® V2 Quick Connector 90° NW12 - 12 mm
Brand:
NORMA
- Buy 10 for €6,61 each and save 10%
- Buy 25 for €5,87 each and save 20%
- Buy 50 for €5,14 each and save 30%
| Article number: | NOR-7138037012 |
| SKU: | 7138037012 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
Information

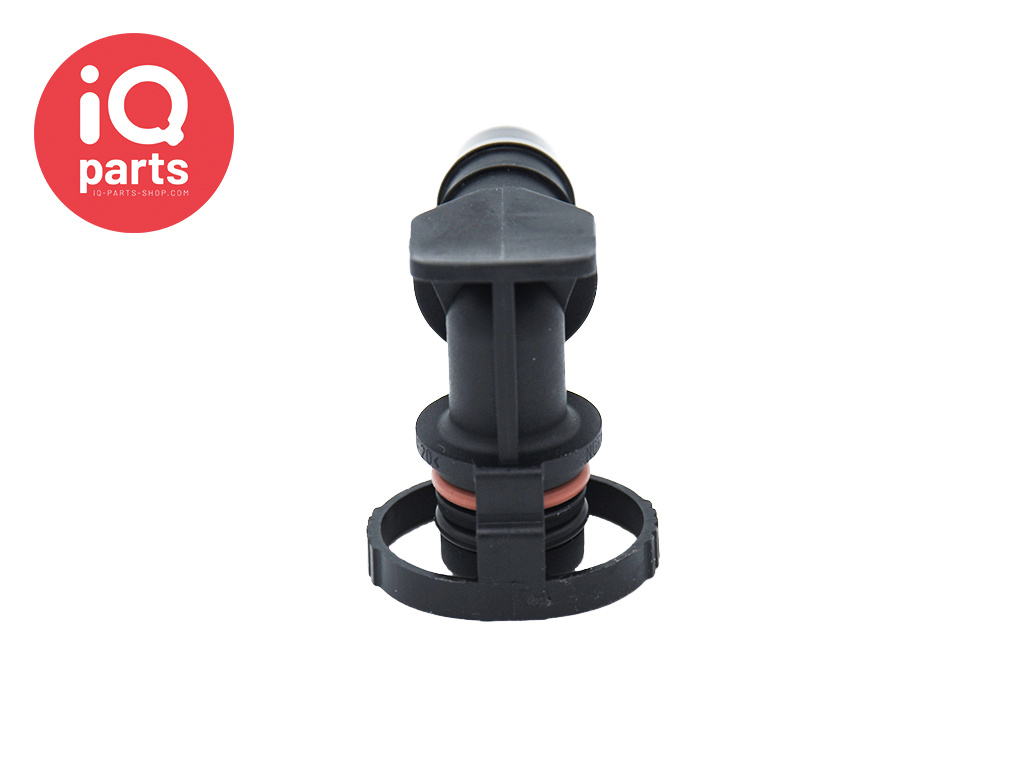

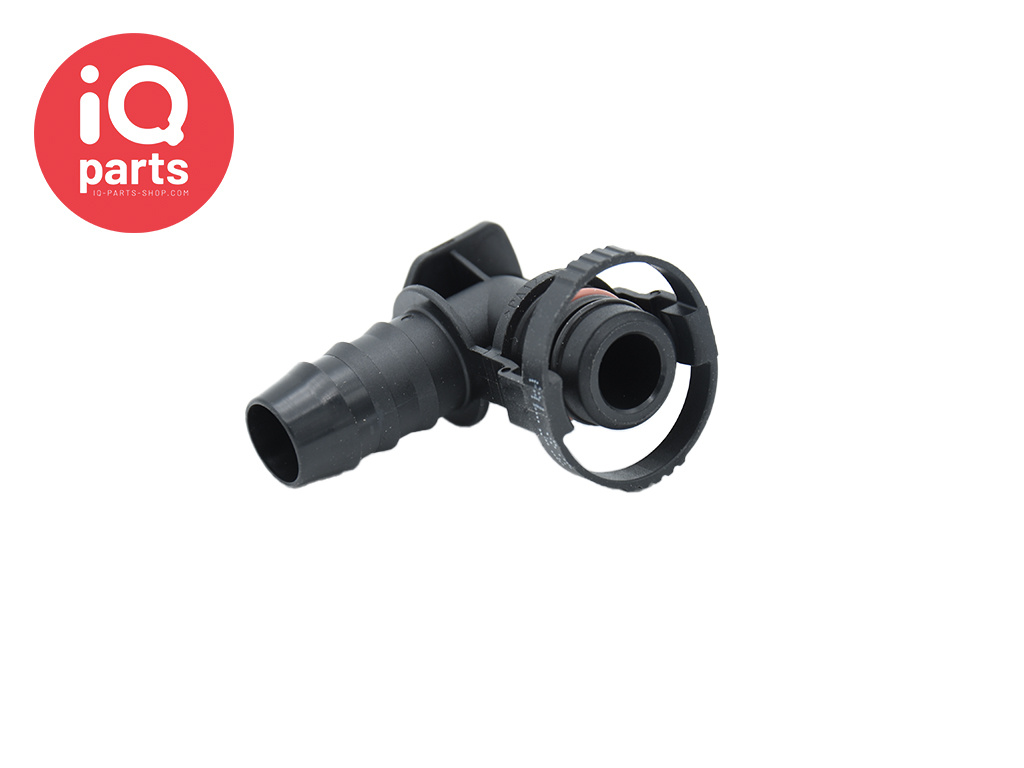

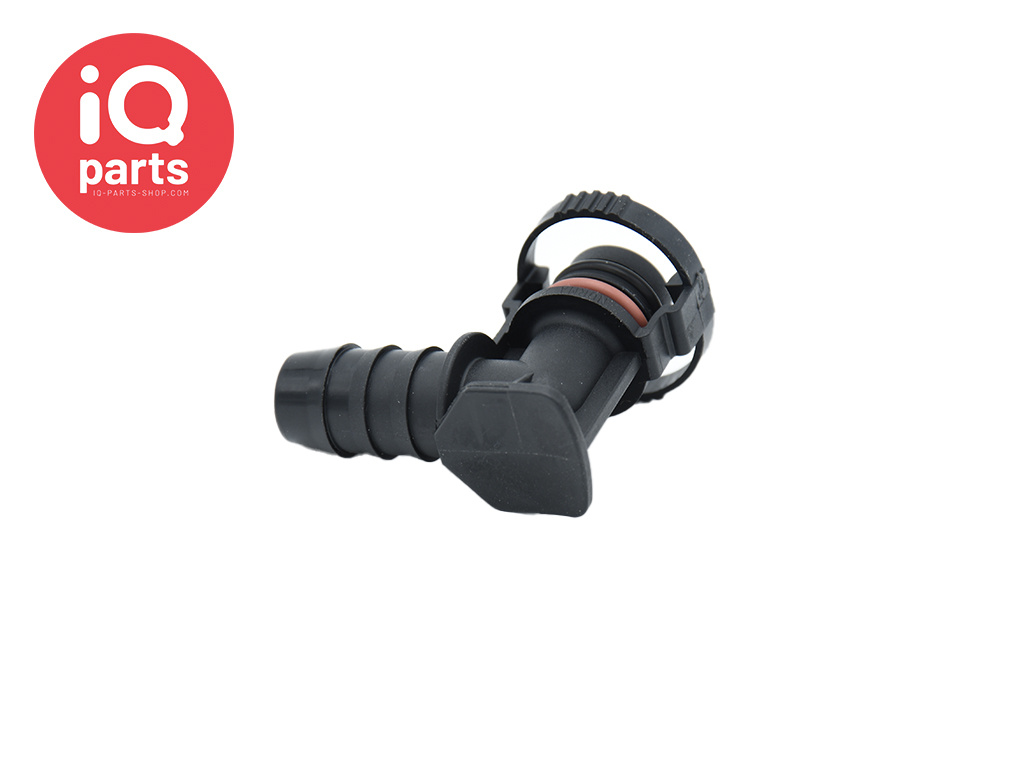

Normaquick® V2 Quick Connector 90° NW12 with 12 mm hose connection.
V2 plastic quick connectors are an ideal means to connect media carrying lines as well as ventilation and exhaust lines in automotive industry. The connectors can be used for both line-to-line and line-to-device connections. V2 can be applied on both plastic and metal spigots. NORMAQUICK® V2 plug connections are available as standard in the connection variants 0°, 45°, 50° and 90°.
The advantages at a glance
- Quick assembly time equaling cost reduction
- Automated production, no human factor means less margin of error
- No tools needed
- Compact dimensions allowing ease of use in narrow spaces
- An integrated seal provides optimal tightness
- All seals can be visually checked, permitting safe assembly
- Featuring extremely low permeation values
Technical drawing:
Product code:
07138037012 - 07137037012 - 07136037012 - 7138037012 - 7137037012 - 7136037012 - 0713 8037 012 - 0713 7037 012 - 0713 6037 012
Specifications
| Medium: | Fuel tank ventilation, Ventilation and exhaust lines , Oil cooler lines, Vacuum brake line |
| Operating Pressure: | Approx. 2,5 bar excess pressure |
| Temperature range: | –40°C to +135°C, Short time up to +150°C (approx. 30 min.) |
| Material: | Polyamide 6 with 30% glass fiber content or Polyamide 12 with 20% glass fiber |
| Size: | NW12 |
| Connection: | 90° |
| Seal: | NBR, HNBR, FPM and FVMQ |
| Hose connection: | 12 mm Inner diameter |
