CPC - NS1D10042812 | NS1 Coupling body | polypropylene | 1/4-28 UNF male thread
Brand:
CPC
| Article number: | CPC-NS1D10042812 |
| SKU: | NS1D10042812 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
- Customer service 09:00 - 17:00
Information

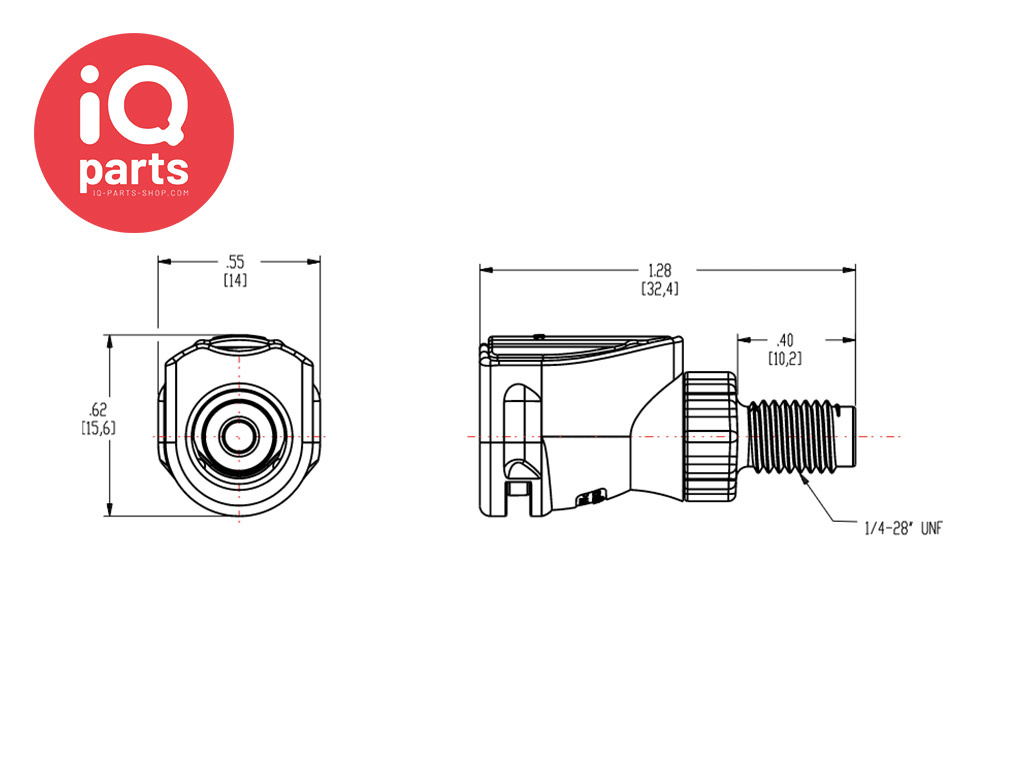

CPC - NS1D10042812 | NS1 Coupling body | polypropylene | 1/4-28 UNF male thread
This In-Line NS1 Series coupling body features a non-spill valve in a compact size, at a great price. The NS1D10042812 coupling with 1/4-28 UNF male thread. The coupling has a shut-off valve. The coupling material is polypropylene (PP) and the sealing ring is made of EPDM.
The Non-spill quick couplings of the NS1 series are characterized by unique product properties. Closed systems design can be disconnected drip-free thanks to the integrated non-leakage valves. A necessary pipe cleaning is therefore completely excluded. The NS1 quick coupling is currently the smallest, 100% non-drip, plastic quick coupling. Closed systems with hose diameters of 3.2 mm (1/8") or smaller can therefore be easily connected and disconnected. Even when connected, the hose can rotate freely without kinking or twisting. This also prevents an unwanted interruption of the media flow The NS1 series plastic quick coupler is therefore ideal for closed system applications. The ergonomics and user-friendliness also ensure easy operation when connecting and disconnecting.
Characteristics and benefits:
- Non-spill design: Closed system for drip-free disconnect
- Ultra low air inclusion; Minimizes contaminants, eliminates the need to purge air bubbles from the system
- Rotating design; Allows tubing to move freely or relax without kinking or leaking
- Chemically resistant material; Reliable strength and performance in a range of applications
Materials:
- Main components and valve: Glass-filled polypropylene, PEEK®, polypropylene
- Thumb latch: PEEK®
- Valve Spring: AISI 316 Stainless Steel (W5)
- 0-ring: EPDM
- Colour: Gray
Specifications:
- Working pressure: vacuum up to 1.0 bar (15 PSI)
- Operating Temperature: 0ºC to 49ºC (32ºF to 120ºF)
- Spillage: <0.02 cc per disconnection at 15psi
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Chemicals |
| Operating Pressure: | 1,0 bar Vacuum |
| Temperature range: | 0° C tot +49° C |
| Material: | Glas filled Polypropylene, PEEK®, polypropylene |
| Size: | -- |
| Connection: | In-line coupling |
| Seal: | EPDM |
| Hose connection: | 1/4-28 UNF male thread |
| Weight: | -- |
