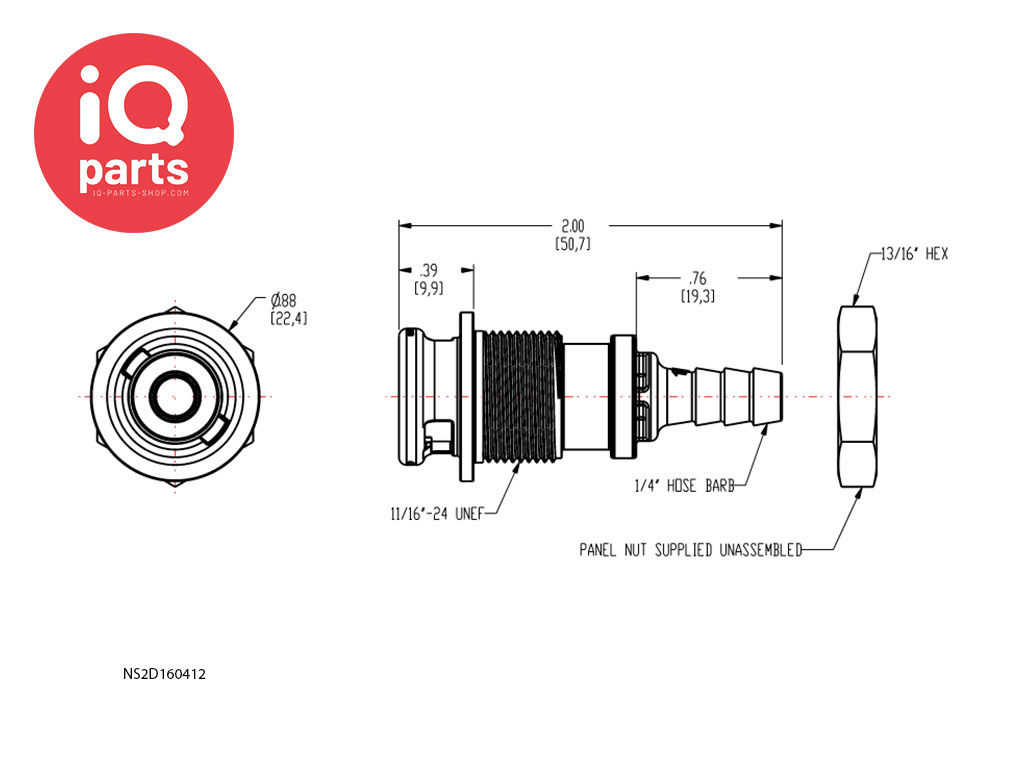

CPC - NS2D160412 | NS212 Coupling Body | Panel Mount | Hose barb 6,4 mm (1/4")
Brand:
CPC
| Article number: | CPC-NS2D160412 |
| SKU: | NS2D160412 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information
CPC - NS2D160412 | NS212 Coupling Body | Polypropylene | Panel Mount | Hose barb 6,4 mm (1/4")
This In-Line NS212 Series coupling features a non-spill valve in a compact size and suitable for panel mounting through the male thread and fastening nut, at a great price. Use the NS212 when even a few drops pose problems regarding safety, media cost or environmental regulations. This innovative coupling is lightweight, chemically resistant and easy to use.
The non-spill design effectively eliminates spills, minimizes downtime and enhances operator safety.
Note: The NS212 does NOT mate NS2.
NS212 Series couplings were built on the company’s proven platform of non-spill valves designed to provide fast, safe and leak-free fluid line connections. The NS212 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. It is also chemically resistant and ideal for a diverse range of applications including printing and ink management, analytical instrumentation, electronic cooling and chemical handling. NS212 couplings provide high-flow fluid transfer in a small footprint.
Characteristics and benefits:
- Non-spill design: No spills with disconnection under pressure
- Multiple seal materials; Broad chemical compatibility for diverse applications
- Glass-filled polypropylene: Durable and compatible to many chemicals
- Twist-to-connect locking; Easy, non-spill connections in tight spaces
- Ultra low air inclusion; Minimizes contaminants, reduces the need to spurge lines
Possible areas of application:
- Printer and ink management
- Analytical instrumentation
- Electronic cooling circuits
- Chemical handling
Materials:
- Main components and valve: Glass-filled polypropylene
- Valve Spring: AISI 316 Stainless Steel (W5)
- 0-ring: EPDM (optional FKM/Simriz® FFKM)
- Colour: Gray
Specifications:
- Working pressure: vacuum up to 3.1 bar (45 PSI)
- Operating Temperature: 0ºC to 49ºC (32ºF to 120ºF)
- Spillage: 0,025 ml per disconnection
- Inclusion: 0,009 cc per connect
- Flow Capacity: Cv ~ 0,45
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Chemicals |
| Operating Pressure: | 3,1 bar Vacuum |
| Temperature range: | 0° C tot +49° C |
| Material: | Polypropylene |
| Size: | -- |
| Connection: | In-line Coupling Body |
| Seal: | EPDM |
| Hose connection: | 6,4 mm (1/4") Inner diameter |
| Weight: | -- |
