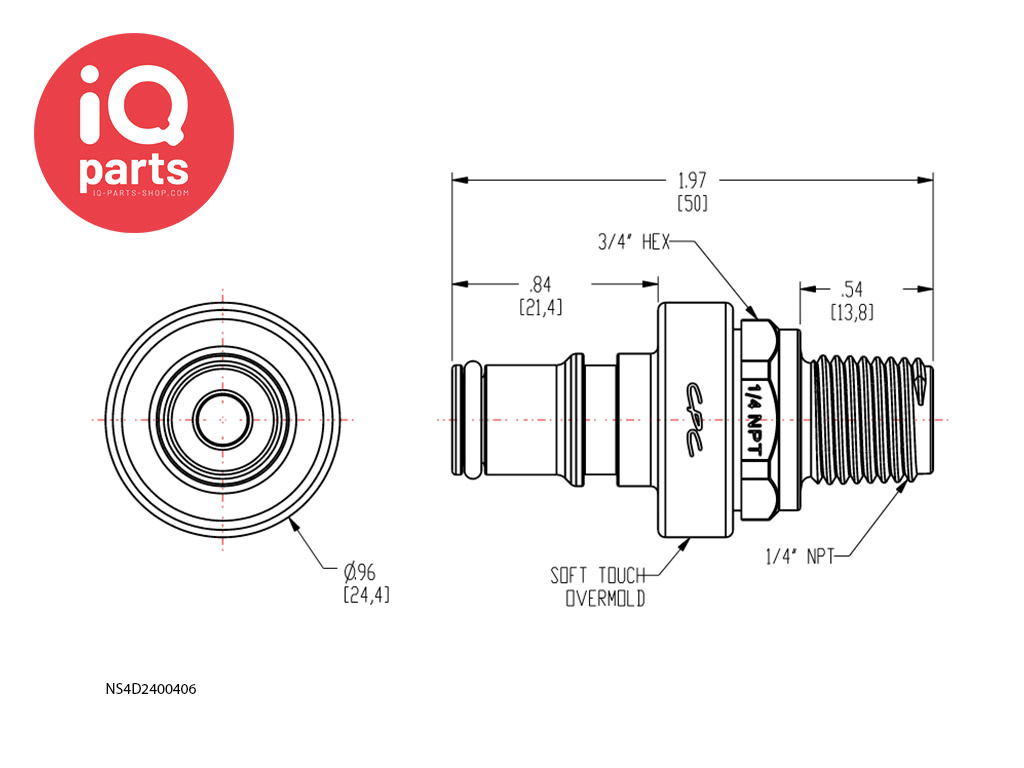

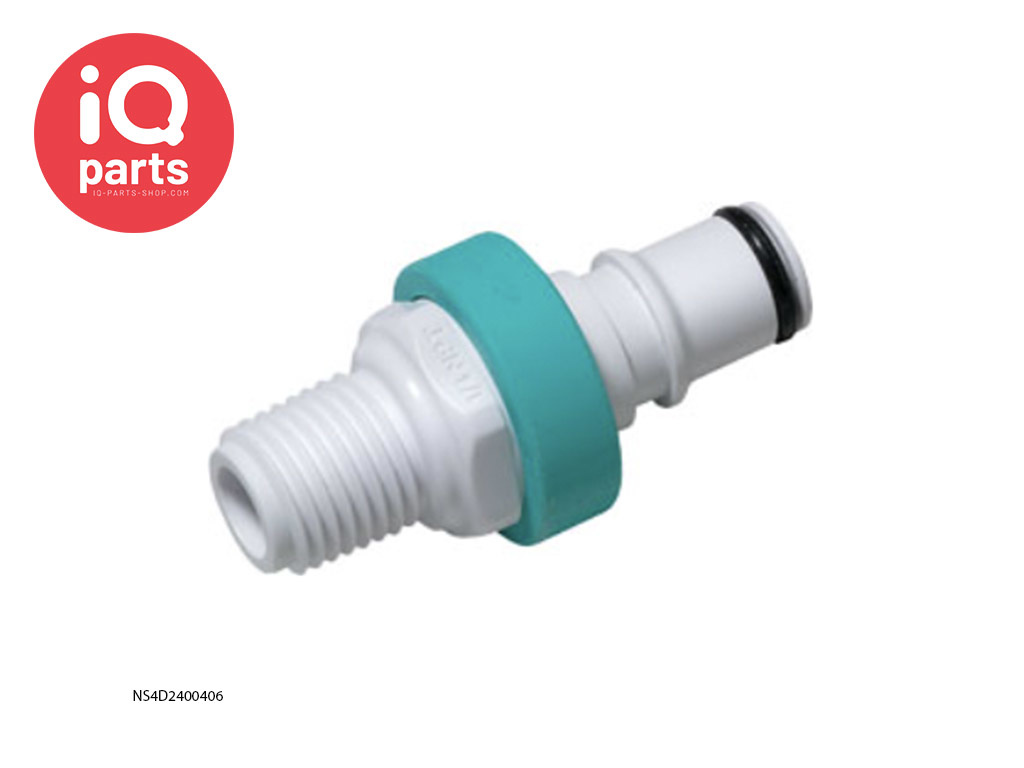

CPC - NS4D24004 / NS4D2400406 | NS4 Coupling insert | 1/4" NPT pipe thread
Brand:
CPC
| Article number: | CPC-NS4D24004 |
| SKU: | NS4D24004 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information
CPC - NS4D24004 / NS4D2400406 | NS4 Coupling insert | 1/4" NPT pipe thread
This In-Line NS4 Series coupling insert features a non-spill valve in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. This innovative coupling is lightweight, chemically resistant and easy to use.
The non-spill design effectively eliminates spills, minimizes downtime and enhances operator safety. NS4 coulings are also available with optional RFID (Radio Frequency Identification) capability. Here, RFID (Radio Frequency Identification) functions are integrated into the quick-release coupling (Radio Frequency Identification) in order to be able to better control, protect and efficiently handle valuable media.
Choose from the drop-down menu whether you need the glass-filled polypropylene molded coupling with TPV (TPE-V = thermoplastic vulcanizate) or the ABS molded coupling with TPE (= thermoplastic elastomer) soft-touch.
Characteristics and benefits:
- Non-spill design: No spills with disconnection under pressure
- Color coding: Instant visual differentiation of media lines
- Glass-filled polypropylene: Durable and compatible to many chemicals
- Medical-grade ABS: Gamma sterilizable
Possible areas of application:
- Printer applications
- Chemical transport systems
- Electronic cooling circuits
- Instruments
- Medical Equipment
Materials:
- Main components and valve: Glass-filled polypropylene molded with TPV (TPE-V = thermoplastic vulcanizate) or ABS molded with TPE (= thermoplastic elastomer) soft-touch
- Thumb latch: glass-filled polypropylene or ABS
- Valve Spring: AISI 316 Stainless Steel (W5)
- External Spring: AISI 316 Stainless Steel (W5)
- 0-ring: EPDM (optional FKM)
- Colour: Gray with dark gray overmold (standard version) (grey with red or blue overmold available)*
- Lubricants: Krytox® PFPE (chemically neutral)
Specifications:
- Working pressure: vacuum up to 8.3 bar (120 PSI)
- Operating Temperature: 0ºC to 71ºC (32ºF to 160ºF)
- Spillage: <0.10 cc per disconnection at all rated pressures
- Flow Capacity: Cv ~ 0,6 (8,65 max)
*NOTE: Standard product is gray; color options require a minimum quantities. Please contact IQ-Parts for details.
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Chemicals |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | 0° C tot +71° C |
| Material: | Polypropylene or ABS |
| Size: | -- |
| Connection: | In-line Coupling Insert |
| Seal: | EPDM |
| Hose connection: | 1/4" NPT Pipe Thread |
| Weight: | -- |
