CPC - NSHD10008 | NSH Coupling Body | Polypropylene | 1/2" NPT male thread
Brand:
CPC
| Article number: | CPC-NSHD10008 |
| SKU: | NSHD10008 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information
CPC - NSHD10008 | NSH Coupling Body | Polypropylene | 1/2" NPT male thread PRICE ON REQUEST

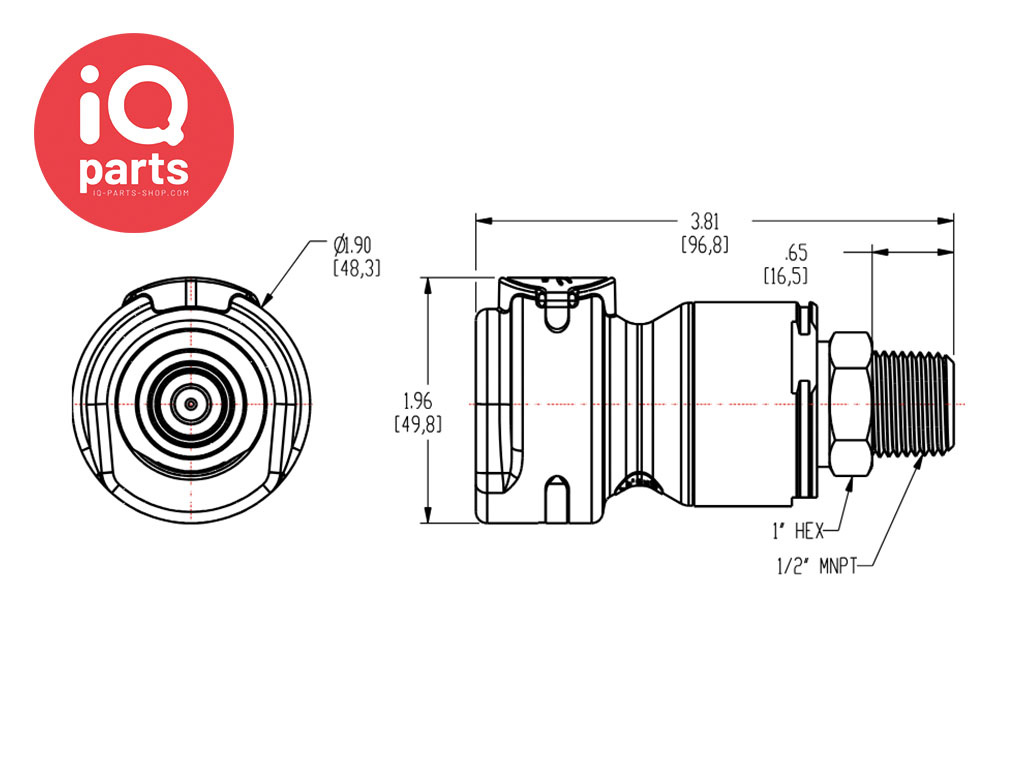

The CPC coupling Body NSHD10008 has a hose connection for 1/2" NPT male thread. The CPC quick coupling has a valve. The material of the coupling is polypropylene and the sealing ring is made of EPDM. The connector to the plug has an internal dimension of ≈ 31 mm. You can combine this CPC quick coupling with all CPC NSH series connectors.
NSH Series couplings are general-purpose versions of our pressure-balanced, leak-free ChemQuik® CQG06 couplings. Molded polypropylene, EPDM seals and a 100% spring- and metal-free flow path provide broad chemical resistance, easy one-handed operation and exceptionally high flow capacity, allowing instant connection and disconnection, even under pressure. The anti-leak design of the NSH series prevents dripping, minimizes downtime and increases user safety.
NSH Series couplings are general-purpose versions of our pressure-balanced, leak-free ChemQuik® CQG06 couplings. Molded polypropylene, EPDM seals and a 100% spring- and metal-free flow path provide broad chemical resistance, easy one-handed operation and exceptionally high flow capacity, allowing instant connection and disconnection, even under pressure. The anti-leak design of the NSH series prevents dripping, minimizes downtime and increases user safety.
Characteristics and benefits:
- Non-spill design, Ultimate protection from chemicals and fumes
- Pressure-balanced design, Failsafe disconnect, even under pressure; easy to reconnect at high pressure
- Springless flow path design, Eliminates source of metallic contaminants
- Optional color coding, Helps prevent accidental misconnects
Possible areas of application:
- Industrial laundries
- Battery filling systems
- Deionized/ultrapure water
- Chemical cleaning
Materials:
- Main components and valve: Glass-filled polypropylene
- Valve Spring: AISI 316 Stainless Steel (W5)
- 0-ring: EPDM
- Colour: Gray
Specifications:
- Working pressure: vacuum up to 8,3 bar (120 PSI)
- Operating Temperature: 0ºC to 49ºC (32ºF to 120ºF)
- Spillage: 0,03 ml per disconnection
- Inclusion: 0,42 cc per connect
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Chemicals |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | 0° C tot +49° C |
| Material: | Polypropylene |
| Size: | -- |
| Connection: | In-line Coupling Body |
| Seal: | EPDM |
| Hose connection: | 1/2" NPT Pipe Thread |
| Weight: | -- |
