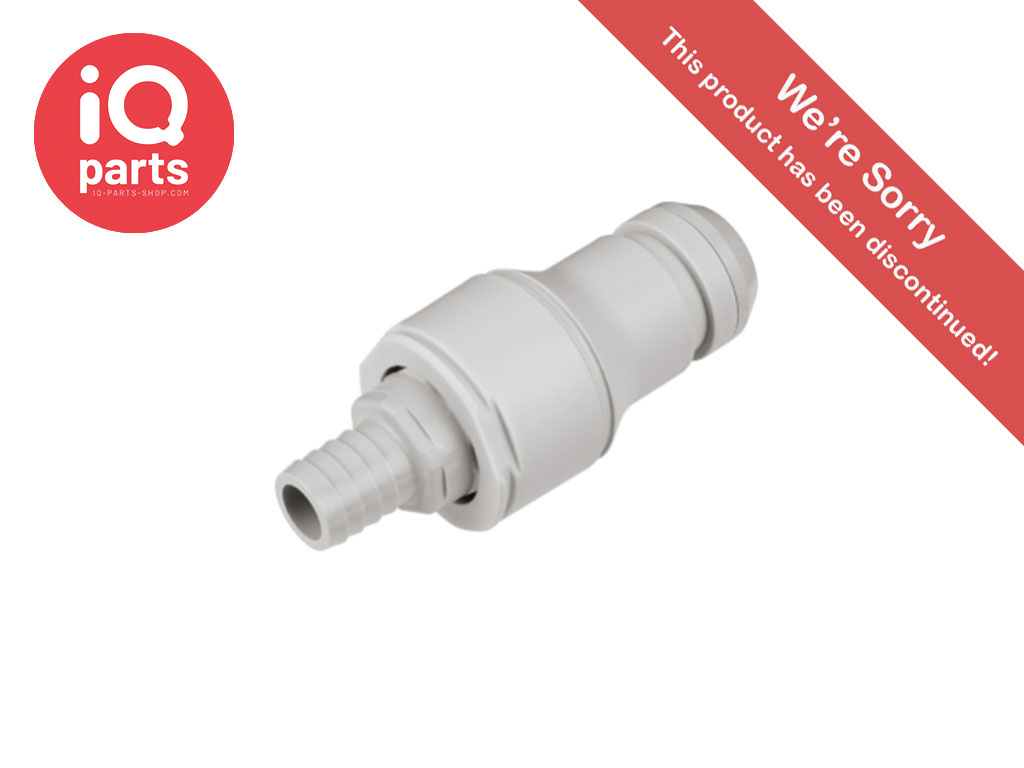

CPC - NSHD22010 | NSH Coupling Insert | Polypropylene | 15,9 mm (5/8") Hose barb

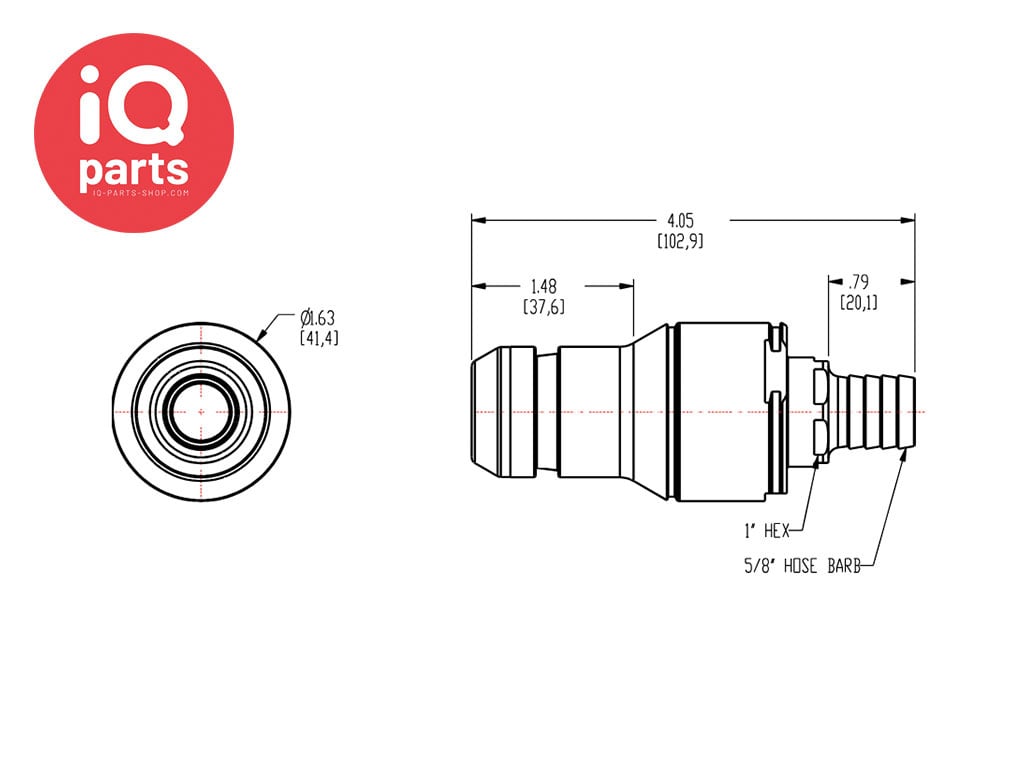

The CPC coupling Insert NSHD22010 has a hose connection for 15.9 mm (5/8") inner diameter. The CPC quick coupling Insert has a valve. The material of the coupling Insert is polypropylene and the sealing ring is made of EPDM. The connector to the plug has an internal dimension of ≈ 31 mm. You can combine this CPC quick coupling Insert with all CPC NSH series couplings.

NSH Series couplings are general-purpose versions of our pressure-balanced, leak-free ChemQuik® CQG06 couplings. Molded polypropylene, EPDM seals and a 100% spring- and metal-free flow path provide broad chemical resistance, easy one-handed operation and exceptionally high flow capacity, allowing instant connection and disconnection, even under pressure. The anti-leak design of the NSH series prevents dripping, minimizes downtime and increases user safety.
